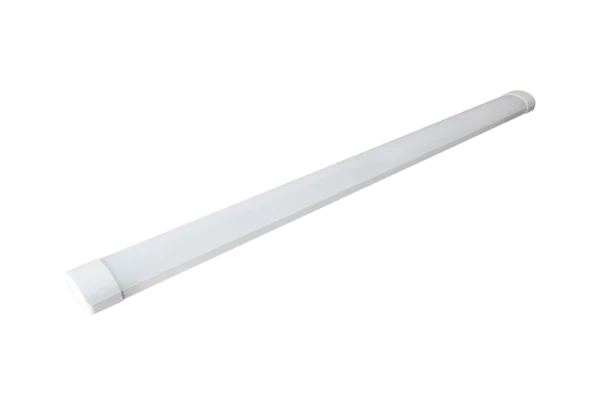

IP20 1.5M CCT Selectable 3000K/4500K/ 6500K Earl 60W LED Batten

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing colour White Degree of protection (IP), front side IP20 Housing material Aluminium Width 85 mm Recess width – mm Height/depth 40 mm Conductor cross section – mm² Outer diameter – mm Length 1500 mm Power factor 0.9 Maximum system power 52.5 W Recess length – mm Number of poles – Unified Glare Rating (UGR) 25.9 Total harmonic distortion 18.3 Luminaire efficacy 129 lm/W Rated life time L70/B50 at 25 °C 30000 h Recess height/depth – mm Rated luminous flux acc. IEC 62722-2-1 – lm Recess diameter – mm Number of lamps – Lamp power – – – W Colour temperature 3000 – 6500 K Nominal current 240 – 240 mA Nominal voltage 220 – 240 V With air slots No Dimming 1-10 V No Suitable for recessed mounting No Suitable for light line configuration No Light source included Yes Suitable for suspended mounting No Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Dimming with push-button No Dimming potentiometer (integrated) No Dimming DMX No Dimming 0-10 V No Suitable for emergency lighting No Suitable for wall mounting Yes Control gear included Yes Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for ceiling mounting No No dimming function Yes With movement sensor No Fit for workplace acc. EN 12464-1 No With light sensor No Luminaire may be covered with thermally insulating material No Bluetooth operated No Dimming RF No Dimming DSI No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No Dimming touch and dim No Dimming depending on control gear No Dimming programmable No Dimming mains voltage modulation No Dimming leading edge No Dimming DALI No Dimming LineSwitch No Dimming trailing edge No Dimming Zigbee No · Technical Data Sheet – Click to Download
