IP67 Waterproof Articulated Industrial Endoscope Camera,5 Inch HD Screen Flexible Borescope with CE Certified and 1m Cable
£764.06 Incl. VAT
IP67 Waterproof Articulated Industrial Endoscope Camera,5 Inch HD Screen Flexible Borescope with CE Certified and 1m Cable
Description
Product description

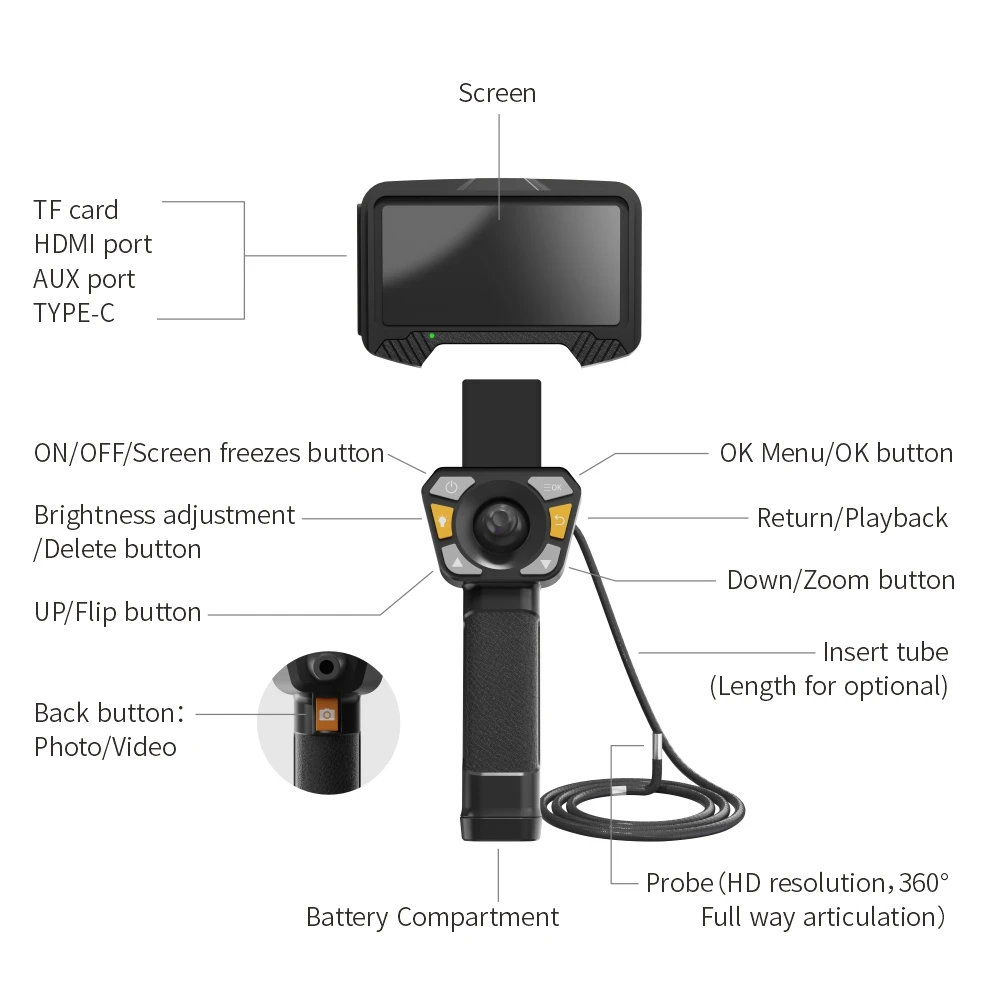

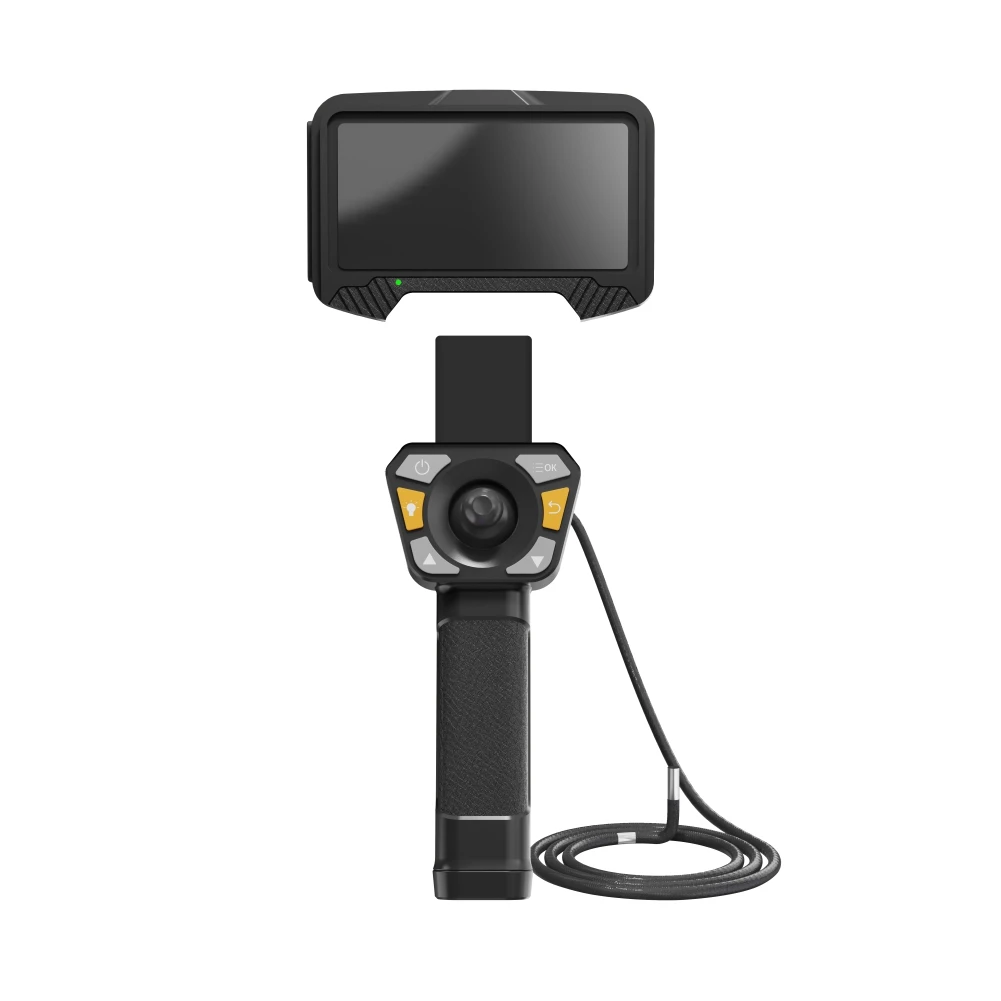

IP67 Waterproof Articulated Industrial Endoscope Camera,5 Inch HD Screen Flexible Borescope with CE Certified and 1m Cable Product Description VS-LA6010 series industrial endoscope is VSNDT’s new tool endoscope products. The product has 4 directions 360 degree steering function, which can quickly enter the narrow curved space. The Megapixel HD camera lens,Detection process details at a glance (2.8mm/3.9mm/6mm Different size lens optional) is clear at a glance. In addition, the high-temperature warning function and WIFI data transmission function make the device more powerful. The 5 ”IPS high-definition LCD screen can present vivid, clear and comprehensive videos and pictures for you during the inspection process,Built-in 26650 lithium-ion battery, ,meet your diverse testing needs. The product is suitable for automobile maintenance, urban pipeline inspection, mechanical casting and electrical equipment maintenance and other fields Technical Parameter TECHNICAL PARAMETERS [ VS-LA ] HOST Dimension 265*140*132.7mm Disply 5″ HD large screen Output Type-C, AUX, TF card Power 26650 battery, Working time ≥ 4h IP Grade IP54 Operatingtemperature -20“C~50″C, Low temperature without preheating Storage Temperature -20”C~60”C Relative Humidity Max 90%, No condensation Storage card Standard 32GB TF card, Max 128GB System/software lmage/video format Im age: JPEG(JPG), Video:MOV lmage control Freezing, zooming, photographing, flipping, video playback and analog ruler functions System language Chinese, English, German, French, Russian, Spanish, ltalian,Polish, Japanese, Ukrainian,etc Camera Probe Probe Diameter 6mm (2.8mm/3.9mm Optional) Diameter Pixel ≥1.0MP Length 1.0m (2.0m/3.0m Optional) Material Tungsten braided tube/ Stainless steel braided tube/ Metal hose tube Articulation 360″ full way articulation Maxswinghead Angle ≥180” DOF 3-70mm/5-100mm/8-150mm/12-200mm FOV 120” Viewing angle Front view lllumination Rear LED Optical fiberlighting/ Front LED lighting (optional) OperatingTemperature -20”C~70″C IP Grade IP67 FRONT VIEW [ VS-LA ] Lens Direction View Angle(θ) DOF Probe Length(L) Probe Diameter(D) Articulation Bending Angle Product Recommend Company Information Packaging & Shipping
Key attributes
| Aperture | F6.0 |
|---|---|
| Function | Waterproof / Weatherproof, Wide Angle |
| Special Features | Waterproof / Weatherproof |
| Style | Mini Camera |
| Place of Origin | Guangdong, China |
| Data Storage Options | Sd Card |
| Lens | 5-50 mm |
| Video Compression Format | H.265 |
| Model Number | VS-LA6010 |
| Brand Name | VSNDT |
| Customized support | OEM, ODM |
| IP Rating | Ip67 |
| Sensor | CMOS |
| Warranty | 1 Year |
| Product Name | Industrial Endoscope Camera |
| Diameter | 6mm (2.8mm/3.9mm Optional) |
| Length | 1.0m (2.0m/3.0m Optional) |
| Display | 5″ HD large screen |

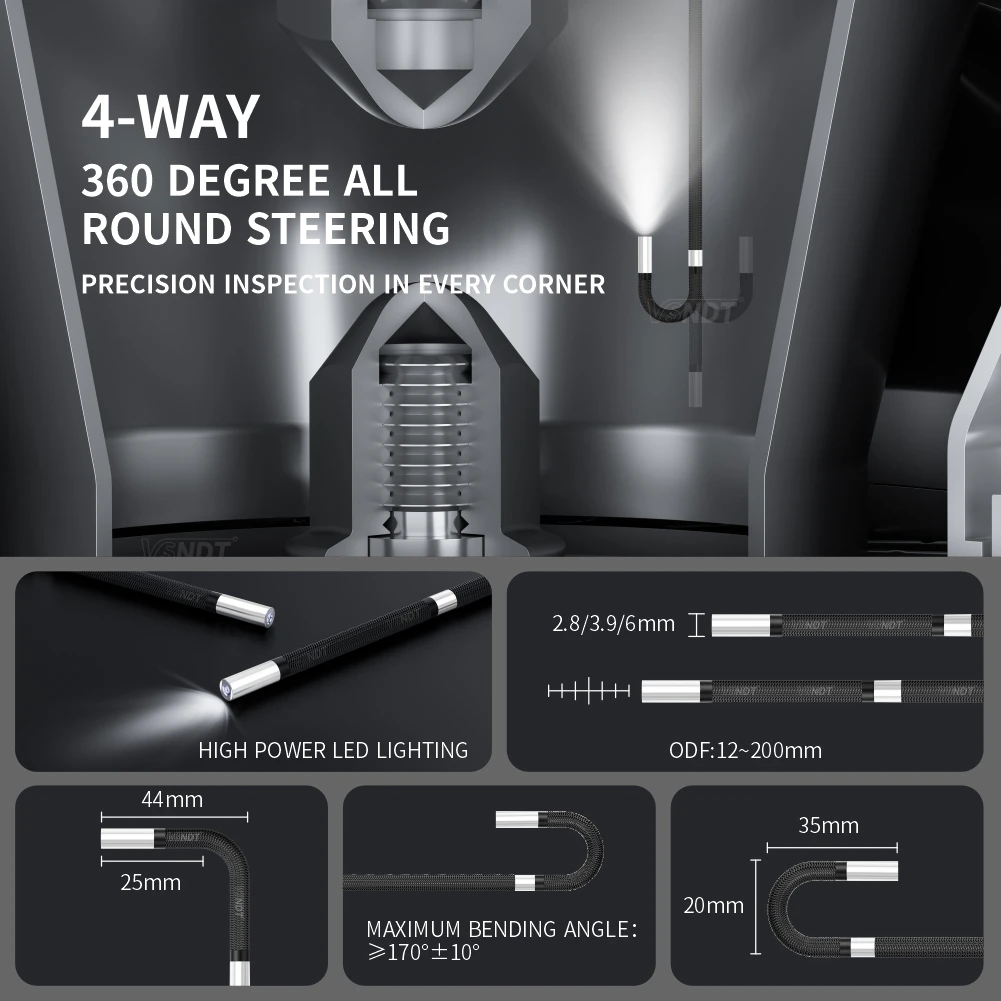

| Articulating | 4 way; 360 degrees |
| Bending Angle | 170°±10° |
| Illuminating system | LED illumination |
| Pixel | ≥1.0MP |
| IP Grade | IP67 |
| Selling Units | Single item |
| Single package size | 40X31X12 cm |
| Single gross weight | 3.000 kg |
