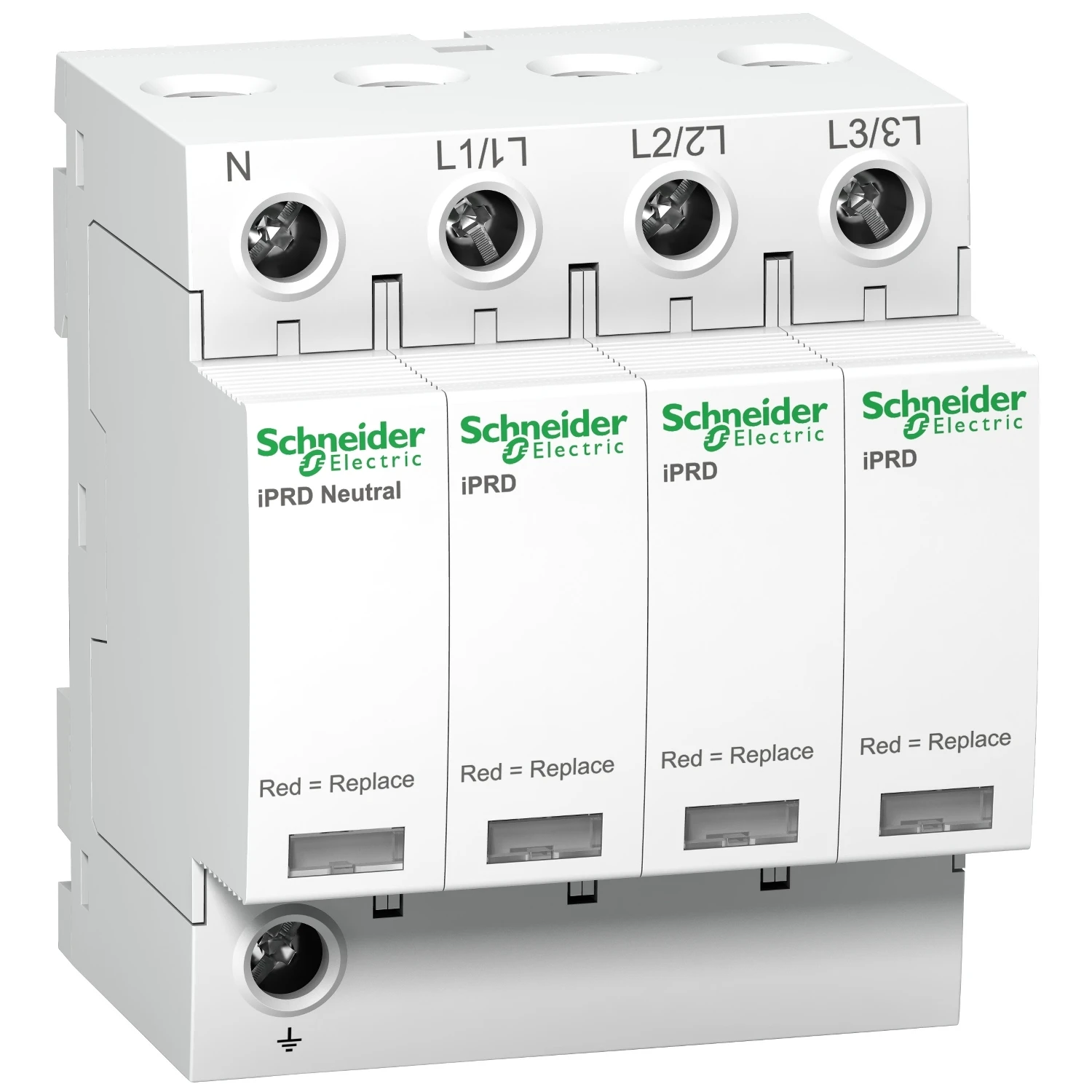

Iprd8R Modular Surge Arrester 3 Pole + Neutral 350V With Remote Transfert

This Acti9 iPRD8r surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. The Imax maximum discharge current is 8kA .The In nominal discharge current is 2.5kA. The iPRD8r ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters. This surge arrester is required when the loads to be protected are at a distance of more than 10 m from the incoming surge arrester. The surge arresters with “r” indication have remote transfer of the information “Cartridge to be replaced”. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and is 350V between phase and earth. The Up Voltage protection level in common mode is 1.4kV between neutral and earth in type 2, and 1.1kV between neutral and earth in type 3. The Up Voltage protection level in differential mode (between phase and neutral) is 1kV in type 2, and 1.1kV in type 3. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The weight is 421g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards. · · · Signal contacts composition 1 SD (1 C/O) · · Poles description 3P + N · · Surge arrester class type Type 2 + 3 · · Rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz · · The surge arresters with r indication have remote transfer of the information Cartridge to be replaced. · · The Uc maximum continuous operating voltage in DM common mode (between phase and neutral) is 260VAC. · · The Uc maximum continuous operating voltage in DM common mode (between earth and neutral) is 350VAC. · · The Up Voltage protection level in CM common mode (between phase and neutral) is 1.1kV.
