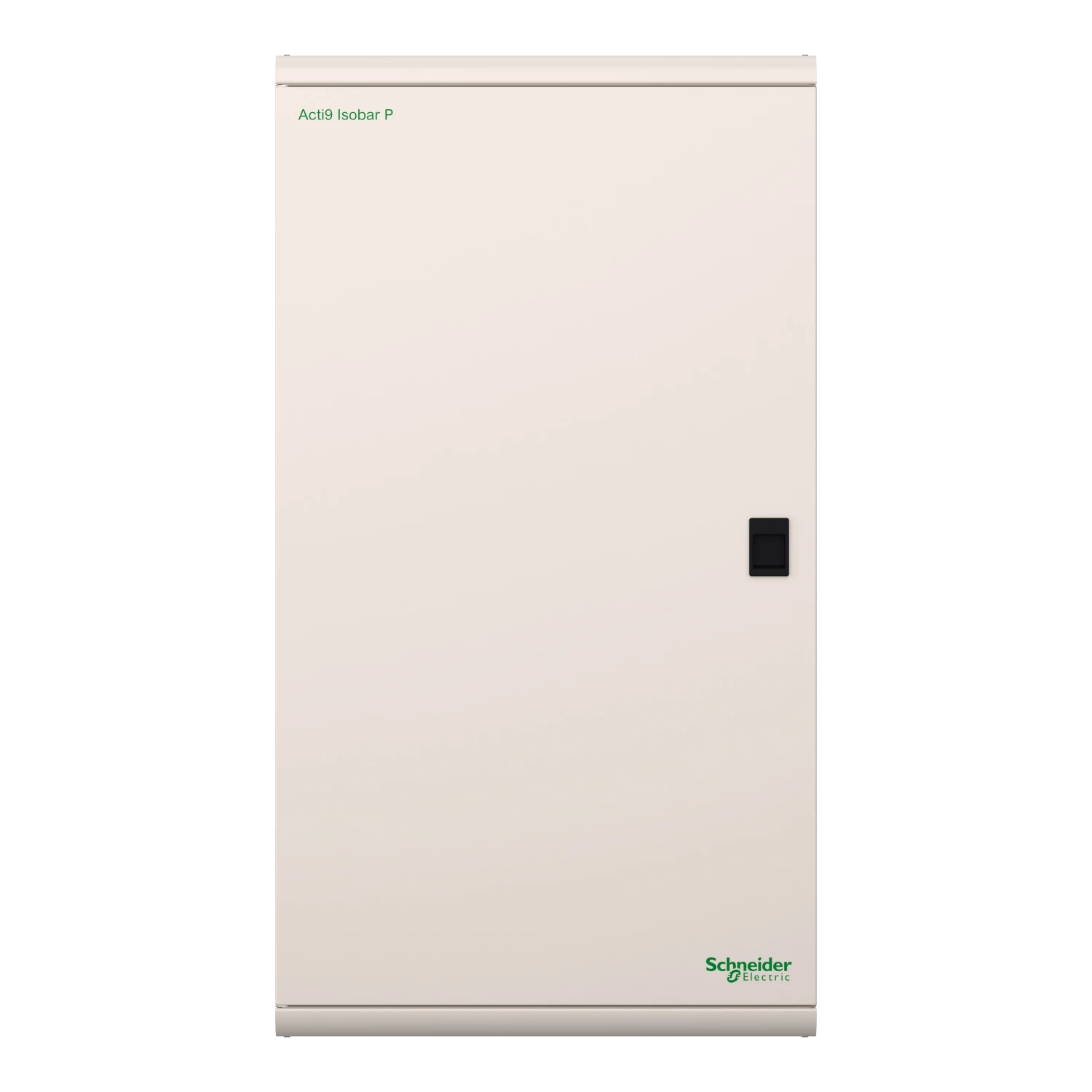

Schneider Electric Isobar P B Hybrid Active Distribution Board Acti9 10 Ways Tp+N With 12 Afdd Ways
£849.64 Incl. VAT
Acti9 Isobar P B Hybrid Active distribution board integrates Active AFDDs, RCBO and MCBs The rated current is up to 250A. The number of TPN ways available is 10 and Active AFDD ways available is 12. The Ue rated operational voltage is 230/240 V AC or 400/415 V AC The provided equipements are enclosure, door, earth stud,front cover,pan assembly,earth terminal block,neutral terminal block,blanking plate and removable gland plates. The pole configuration is 3P+N. The enclosure is suitabel for surface mount. The Ui rated insulation voltage is 500V. The Uimp, rated impulse withstand voltage is 6 kV. The offer is part of Commercial building distribution catalog The dimensions are (W) 470mm x (H) 862mm x (D) 140mm. The switchboard colour is RAL9001. The degree of protection is IP3x with door closed in an enclosure. Complies with BS EN 61439-3 standard. The offer has approved UKCA marking. · · · Breaking capacity 25 kA · · Overvoltage category IV · · Rated insulation voltage 500V · · Rated impulse withstand voltage 6 kV
Description
Technical Specifications Technical Specifications Small distribution board Housing material Steel Type of covering Door Cover model Closed Degree of protection (IP rating) IP3X Mounting method Surface mounted Width 470 mm Internal depth – mm Depth 140 mm Height 862 mm Recess width – mm Recess height – mm RAL number 9001 Recess depth – mm Number of rows – Width in number of modular spacings – With lock No Earthing terminal block Yes Neutral terminal block Yes Signal passing door No Extension possible Yes EMC-version No Transparent cover/door No With DIN-rail No With mounting plate No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2200112
