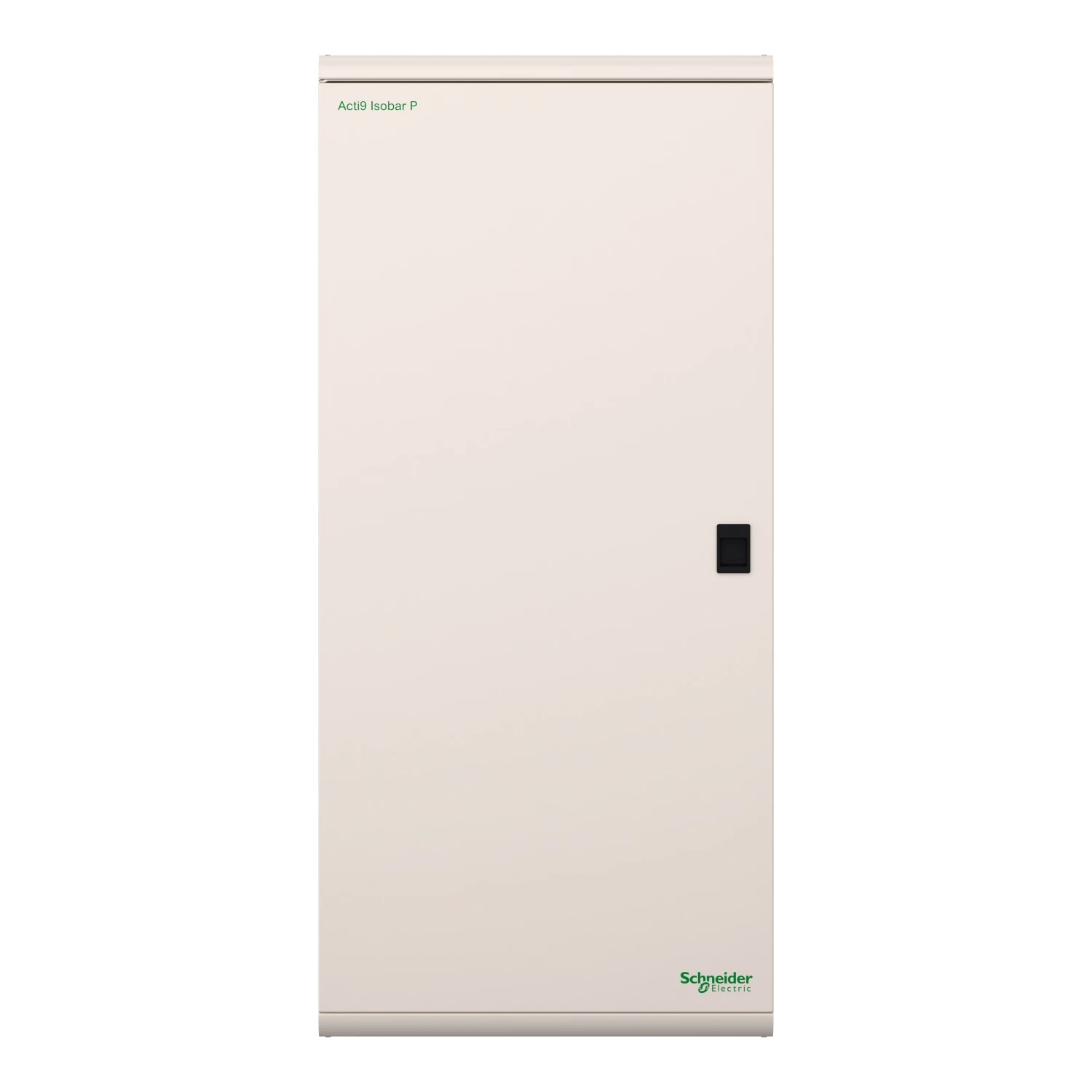

Isobar P B Standalone Active Distribution Board Acti9 36 Afdd Ways
£983.30 Incl. VAT
Acti9 Isobar P B Standalone Active distribution board integrates Active AFDDs The rated current is up to 125A. The number of Active AFDD ways available is 36. The Ue rated operational voltage is 230/240 V AC or 400/415 V AC The provided equipements are enclosure, door, earth stud,front cover,pan assembly,earth terminal block,blanking plate and removable gland plates. The pole configuration is 3P+N. The enclosure is suitabel for surface mount. The Ui rated insulation voltage is 500V. The Uimp, rated impulse withstand voltage is 6 kV. The offer is part of Commercial building distribution catalog The dimensions are (W) 470mm x (H) 1024mm x (D) 140mm. The switchboard colour is RAL9001. The degree of protection is IP3x with door closed in an enclosure. Complies with BS EN 61439-3 standard. The offer has approved UKCA marking. · · · Breaking capacity 25 kA · · Rated insulation voltage 500 V · · Rated impulse withstand voltage 6 kV · · Enclosure material Steel
2 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board Cover model Closed Housing material Steel Type of covering Door Mounting method Surface mounted Degree of protection (IP rating) IP3X Height 1024 mm Width 470 mm Recess width – mm RAL number 9001 Recess height – mm Internal depth – mm Number of rows – Recess depth – mm Depth 140 mm Width in number of modular spacings 36 With lock No EMC-version No Earthing terminal block Yes Neutral terminal block No Signal passing door No Transparent cover/door No With DIN-rail No Extension possible Yes With mounting plate No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2200112
