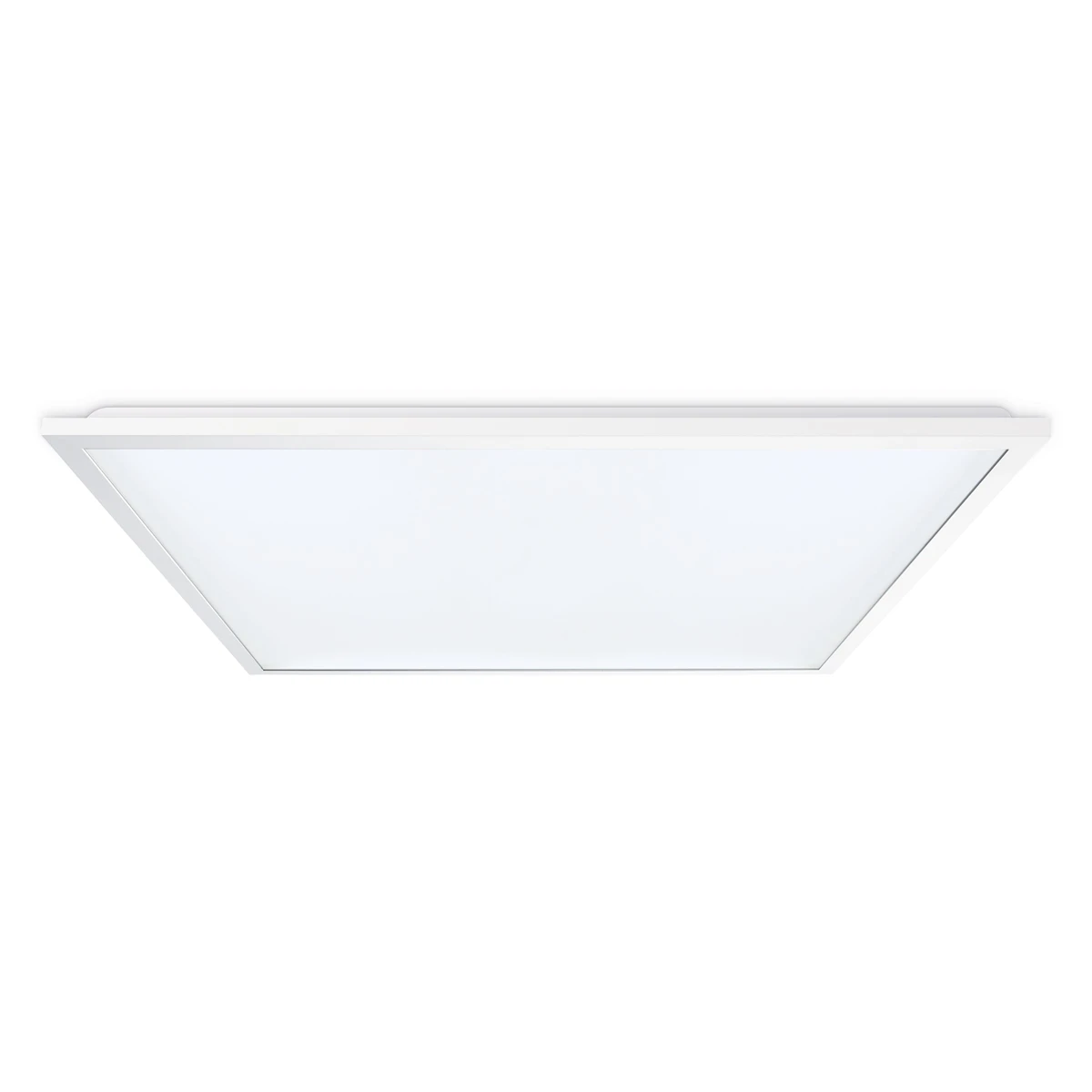

JCC JC080054 Skytile LED Panel TP(a) / UGR
JCC JC080054 Skytile LED Panel TP(a) / UGR
JCC JC080054 Skytile LED Panel TP(a) / UGR - Image 2
JCC JC080054 Skytile LED Panel TP(a) / UGR - Image 3
JCC JC080054 Skytile LED Panel TP(a) / UGR - Image 4

JCC JC080054 Skytile LED Panel TP(a) / UGR

£51.55 Incl. VAT

Meets TP(a) requirements, suitable for all applications · · · UGR designed to comply with BS EN 12434-1 lighting of workspace · · 107 lumens per circuit Watt · · Emergency remote pack option available (JCEM002) · · IP20 protection · · Remote Plug and Play Emergency Pack – JCEM002 or JCEM002ST · · DALI/1-10V dimmable options

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC080054 Categories: , , Brand: Part Number: 2501546995

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Luminaire efficacy 107 lm/W Width 595 mm Height/depth 25.2 mm Power factor 0.9 Maximum system power 28 W Rated luminous flux acc. IEC 62722-2-1 3000 lm Number of poles 2 Length 595 mm Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Suitable for suspended mounting Yes Light source included Yes Luminaire may be covered with thermally insulating material No Suitable for recessed mounting Yes Suitable for emergency lighting Yes Dimming touch and dim No Suitable for ceiling mounting Yes Fit for workplace acc. EN 12464-1 Yes Suitable for surface mounting Yes Control gear included Yes Dimming Zigbee No Dimming leading edge No Dimming trailing edge No Dimming RF No Dimming LineSwitch No Dimming mains voltage modulation No Dimming DMX No Dimming manufacturer’s proprietary system No Dimming 0-10 V No Dimming potentiometer (integrated) No Dimming with push-button No Dimming DSI No Dimming sine wave reduction No Dimming programmable No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2054473
