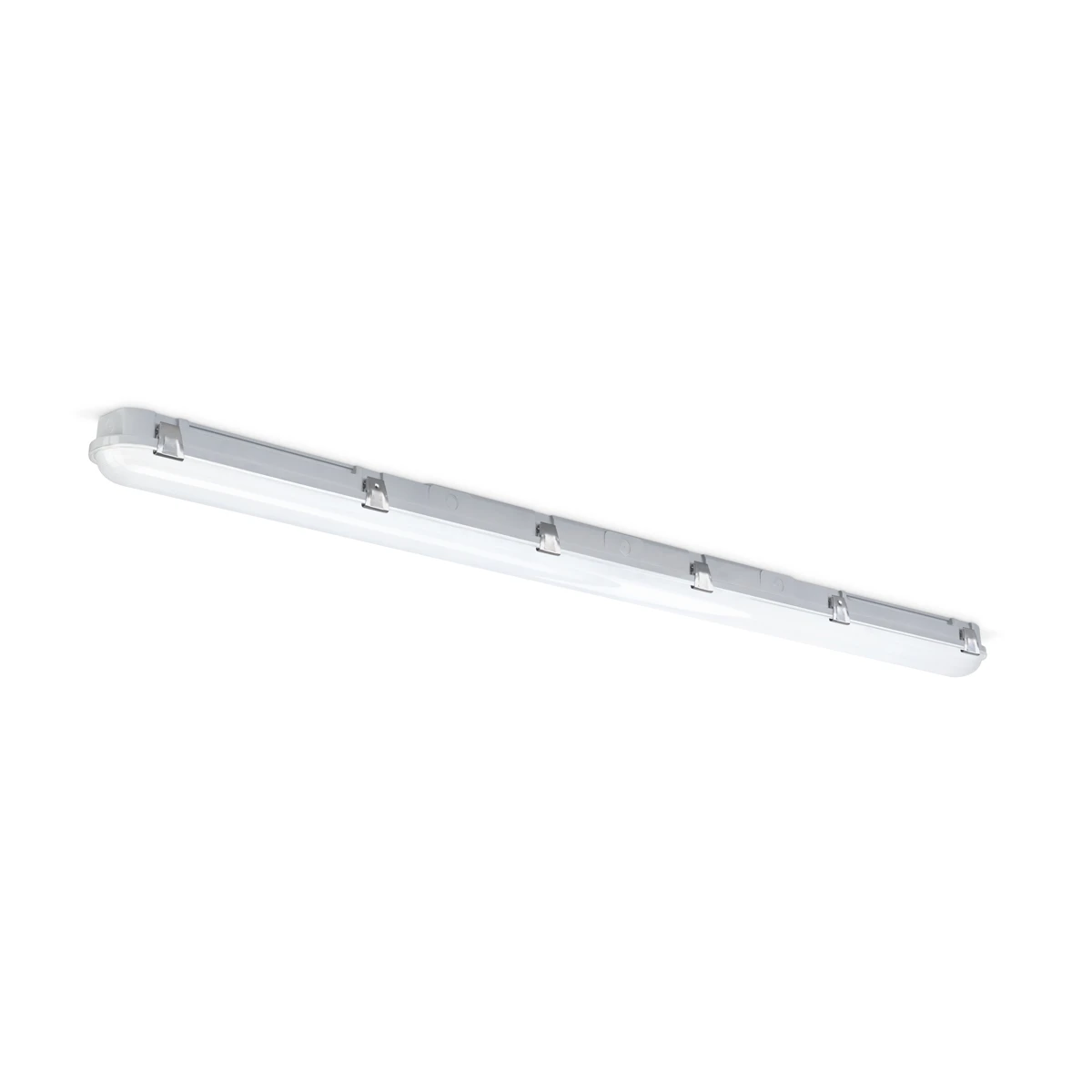

JCC a Leviton Company ToughLED™ Pro 1500mm 5ft Single 29W IP66 4000K Opal
Inbuilt loop-in/loop-out cable restraints ensure cables don’t clash when closing the fixture · · · Plug & play emergency & microwave sensor modules with optional remote control · · Ultra-wide surface mount bracket rail to enable flexibility to locate joists · · Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points, Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture · · Plug & play emergency & microwave sensor modules with optional remote control · · Ultra-wide surface mount bracket rail to enable flexibility to locate joists, a wider body for retrofitting · · BESA conduit box mounting, with rear, side and end conduit entry points · · A unique rear IP65 gasket, sealing cable entry from within the fixture for surface mounting applications · · 4ft, 5ft, 6ft single and twin light outputs in both opal and frosted diffuser options · · A microwave step dimmable, DALI and 1-10V dimmable options are also available · · Has a 5-year extended warranty on fixture and batteries on emergency versions which uses LifePO4 batteries for improved performance and life
Description
Technical Specifications Technical Specifications Batten luminaire Width 96 mm Length 1570 mm Number of poles 3 Maximum system power 29 W Number of lamps 1 Height/depth 81.3 mm Power factor 0.9 Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Light source included Yes Rated luminous flux according to IEC 62722-2- 1 3900 – 3900 lm Electrical connection with connector system No Control gear included Yes Replaceable control gear Yes · Technical Data Sheet – Click to Download
