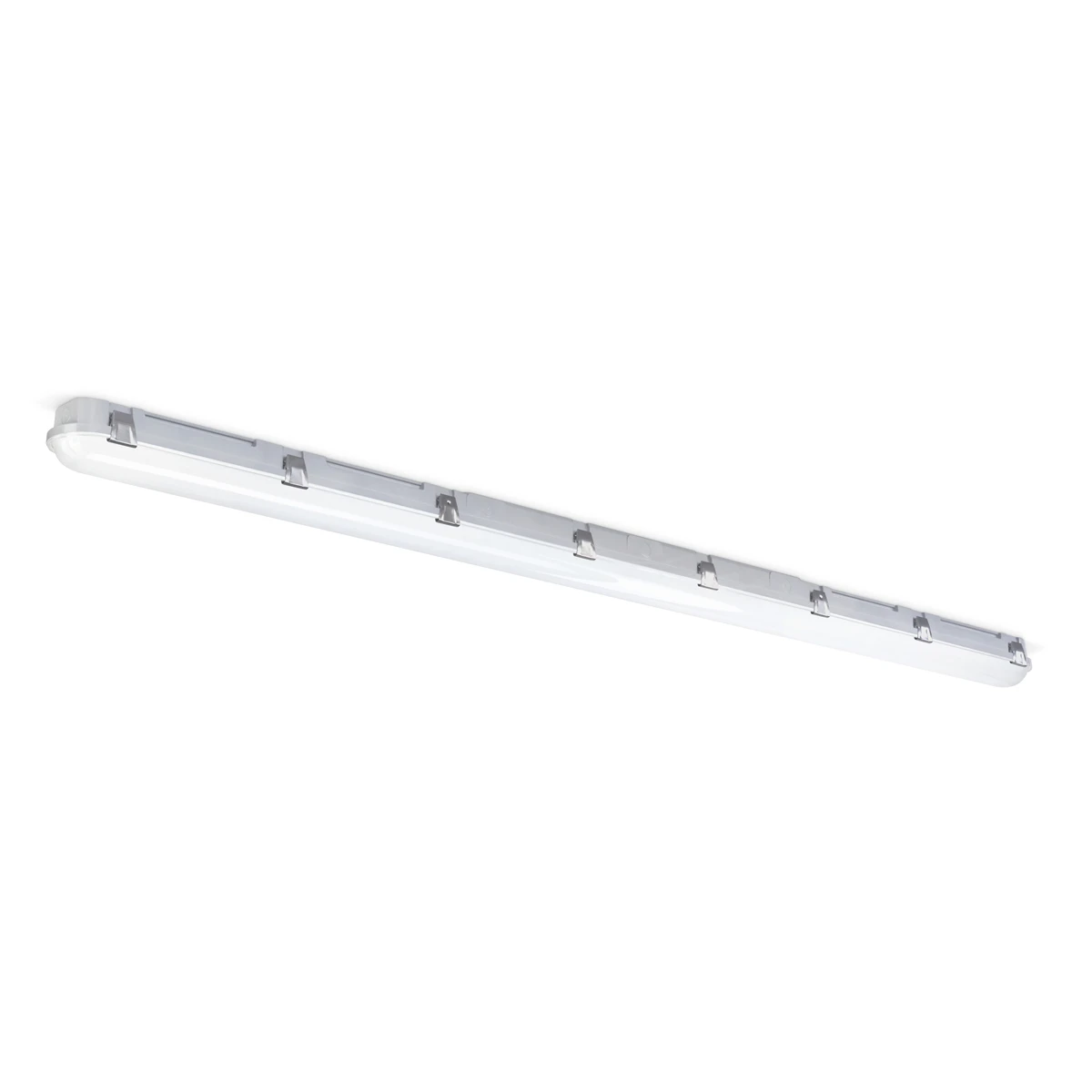

JCC a Leviton Company ToughLED™ Pro 1800mm 6ft Single 39W IP66 4000K Opal
Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points · · · Inbuilt loop-in/loop-out cable restraints ensure cables don’t clash when closing the fixture · · Plug & play emergency & microwave sensor modules with optional remote control · · Detachable 4 pin terminal block with multiple positions adjacent to all cable entry points, Inbuilt loop-in/loop-out cable restraints to ensure that cables do not clash when closing the fixture · · Plug & play emergency & microwave sensor modules with optional remote control · · Ultra-wide surface mount bracket rail to enable flexibility to locate joists, a wider body for retrofitting · · BESA conduit box mounting, with rear, side and end conduit entry points · · A unique rear IP65 gasket, sealing cable entry from within the fixture for surface mounting applications · · 4ft, 5ft, 6ft single and twin light outputs in both opal and frosted diffuser options · · A microwave step dimmable, DALI and 1-10V dimmable options are also available · · Has a 5-year extended warranty on fixture and batteries on emergency versions which uses LifePO4 batteries for improved performance and life
Description
Technical Specifications Technical Specifications Batten luminaire Length 1870 mm Number of poles 3 Width 96 mm Maximum system power 39 W Power factor 0.9 Height/depth 81.3 mm Number of lamps 1 Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Rated luminous flux according to IEC 62722-2- 1 4900 – 4900 lm Replaceable control gear Yes Control gear included Yes Light source included Yes Electrical connection with connector system No · Technical Data Sheet – Click to Download
