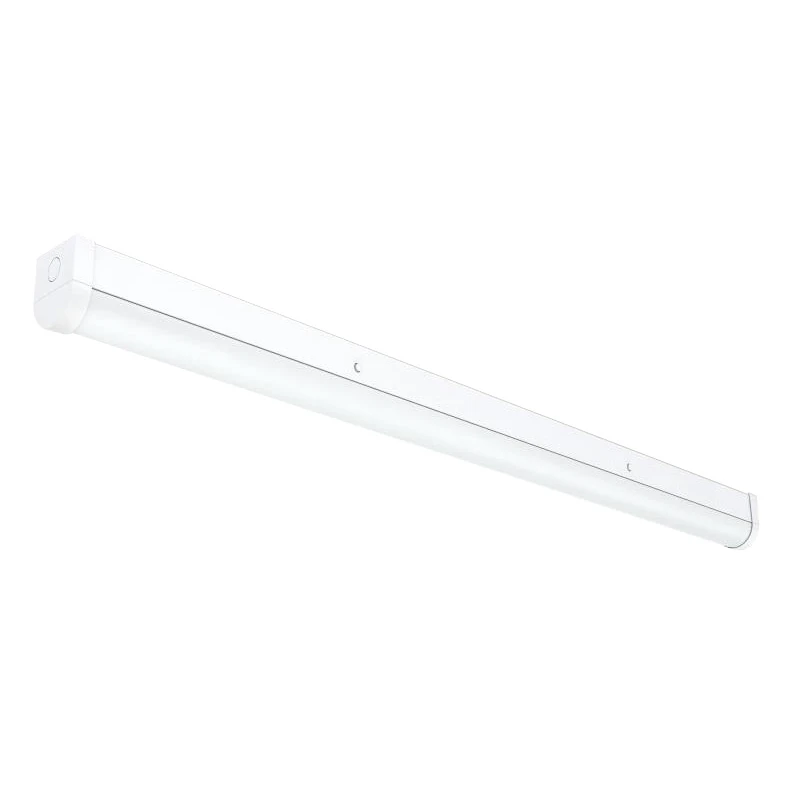

JCC a Leviton Company Batten LED Twin 40W 4000K 5000lm IP20 4Ft
JCC a Leviton Company Batten LED Twin 40W 4000K 5000lm IP20 4Ft
JCC a Leviton Company Batten LED Twin 40W 4000K 5000lm IP20 4Ft - Image 2
JCC a Leviton Company Batten LED Twin 40W 4000K 5000lm IP20 4Ft - Image 3

JCC a Leviton Company Batten LED Twin 40W 4000K 5000lm IP20 4Ft

£55.64 Incl. VAT

JCC Skypack LED Batten with rear and end conduit entry points. It features intelligent press release buttons for simple installation. Manufactured according to the BS EN 60598:2015 standards. · · · Press fit terminals, loop in loop out · · Rear and end conduit entry points · · Ultra efficient, up to 120 lumens per circuit Watt · · Intelligent press release buttons for simple installation · · Suspended LED tray for easy installation · · Microwave dimmable and on/off options

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC71742 Categories: , , Brand: Product Code: 2501091674

Description

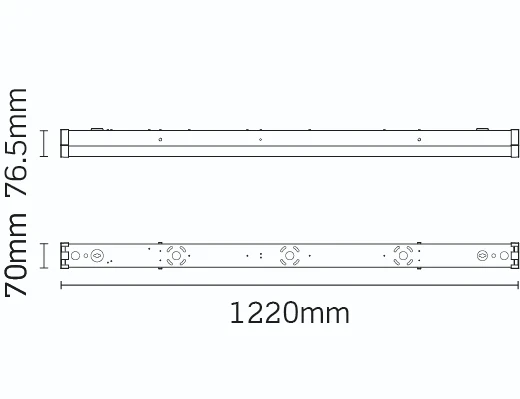

Technical Specifications  Technical Specifications Batten luminaire Width 70 mm Length 1220 mm Number of poles 3 Power factor 0.9 Number of lamps 2 Maximum system power 40 W Height/depth 76.5 mm Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Light source included Yes Rated luminous flux according to IEC 62722-2- 1 4800 – 4800 lm Suitable for emergency lighting No With movement sensor No Control gear included Yes Dimming trailing edge No Dimming DMX No Dimming mains voltage modulation No Dimming LineSwitch No Electrical connection with connector system No Luminaire may be covered with thermally insulating material No Dimming leading edge No Dimming programmable No Dimming DALI No Dimming 0-10 V No Dimming 1-10 V No Replaceable control gear Yes Dimming sine wave reduction No Dimming DSI No Dimming with push-button No Dimming Zigbee No Dimming manufacturer’s proprietary system No Dimming RF No Dimming touch and dim No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709602 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709603 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709604
