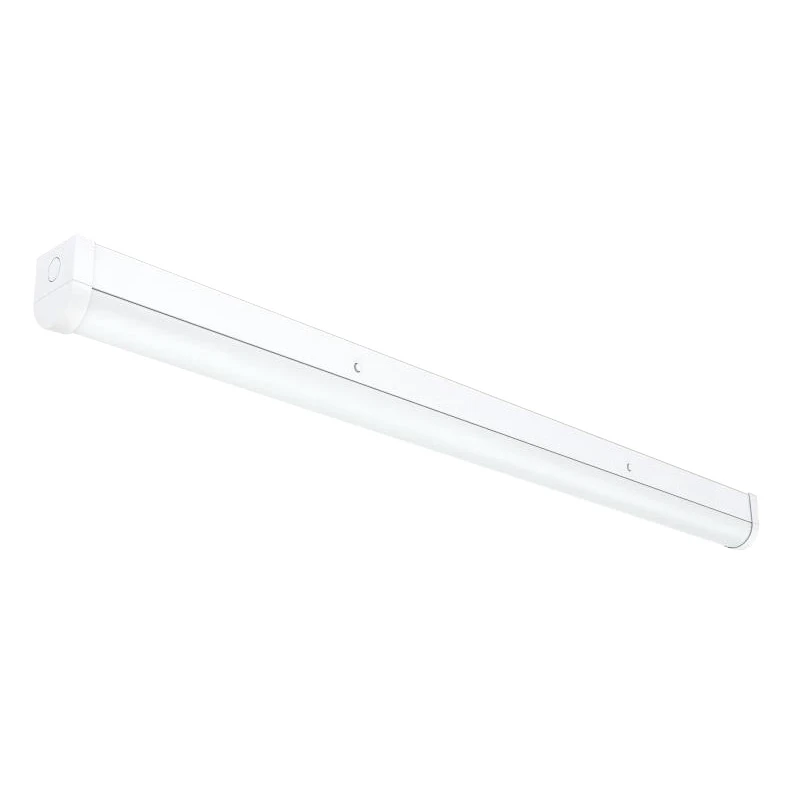

JCC a Leviton Company Luminaire Emergency Batten LED Single 4000K IP20 54W 6500LM 6ft
JCC a Leviton Company Luminaire Emergency Batten LED Single 4000K IP20 54W 6500LM 6ft
JCC a Leviton Company Luminaire Emergency Batten LED Single 4000K IP20 54W 6500LM 6ft - Image 2
JCC a Leviton Company Luminaire Emergency Batten LED Single 4000K IP20 54W 6500LM 6ft - Image 3

JCC a Leviton Company Luminaire Emergency Batten LED Single 4000K IP20 54W 6500LM 6ft

£120.60 Incl. VAT

JCC Skypack LED Batten with rear and end conduit entry points. It features intelligent press release buttons for simple installation. Manufactured according to the BS EN 60598:2015 standards. · · · Press fit terminals, loop in loop out · · Rear and end conduit entry points · · Ultra efficient, up to 120 lumens per circuit Watt · · Intelligent press release buttons for simple installation · · Emergency version · · Microwave dimmable and on/off options

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC71745EM Categories: , , Brand: Product Code: 2501091682

Description

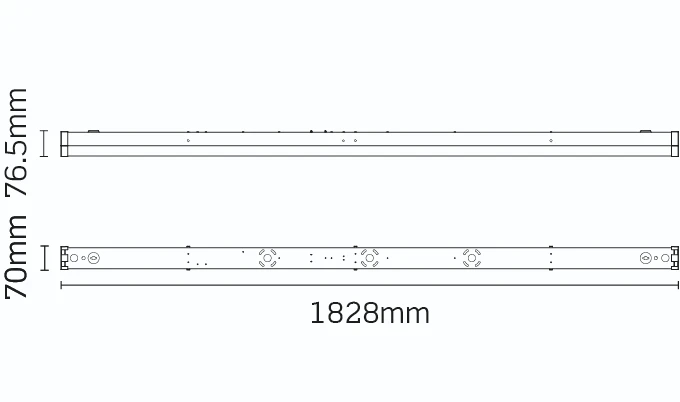

Technical Specifications  Technical Specifications Batten luminaire Width 70 mm Length 1828 mm Number of poles 4 Height/depth 76.5 mm Maximum system power 56 W Number of lamps 1 Nominal voltage 220 – 240 V Power factor 0.9 Rated luminous flux according to IEC 62722-2- 1 6480 – 6480 lm Colour temperature 4000 – 4000 K Suitable for emergency lighting Yes Electrical connection with connector system No Light source included Yes Dimming programmable No Dimming mains voltage modulation No Control gear included Yes Dimming 1-10 V No Dimming Zigbee No Dimming RF No Dimming DSI No Dimming touch and dim No Dimming with push-button No With movement sensor No Dimming LineSwitch No Dimming DALI No Dimming 0-10 V No Dimming trailing edge No Dimming DMX No Dimming sine wave reduction No Luminaire may be covered with thermally insulating material No Dimming leading edge No Dimming manufacturer’s proprietary system No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709620 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709621 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709622
