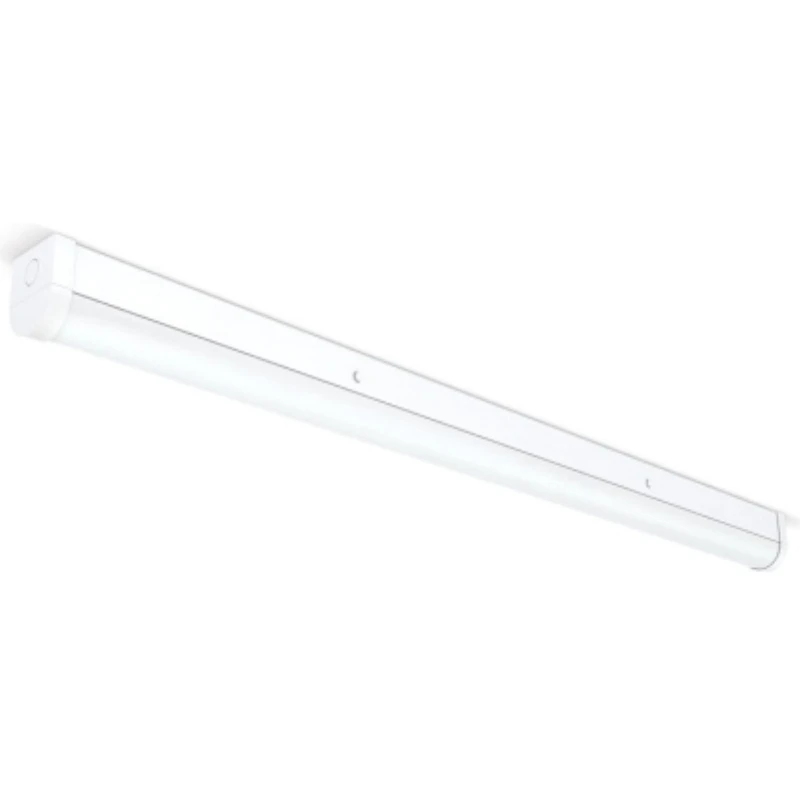

JCC a Leviton Company Luminaire Emer Batten LED Twin 4000K IP20 82W 9800LM 6ft

Description

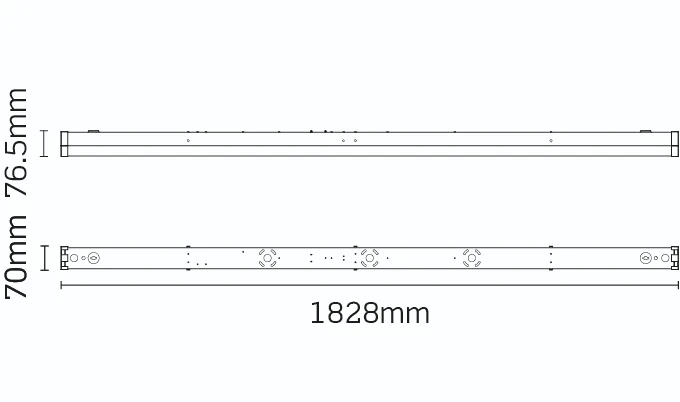

Technical Specifications  Technical Specifications Batten luminaire Width 70 mm Number of lamps 2 Maximum system power 84 W Power factor 0.9 Height/depth 76.5 mm Number of poles 4 Length 1828 mm Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Light source included Yes Rated luminous flux according to IEC 62722-2- 1 9800 – 9800 lm With movement sensor No Suitable for emergency lighting Yes Dimming trailing edge No Electrical connection with connector system No Dimming DMX No Dimming 0-10 V No Dimming leading edge No Dimming manufacturer’s proprietary system No Control gear included Yes Dimming mains voltage modulation No Dimming programmable No Dimming 1-10 V No Luminaire may be covered with thermally insulating material No Dimming DSI No Dimming touch and dim No Dimming with push-button No Dimming sine wave reduction No Dimming LineSwitch No Dimming RF No Dimming Zigbee No Dimming DALI No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709748 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709749 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709750
