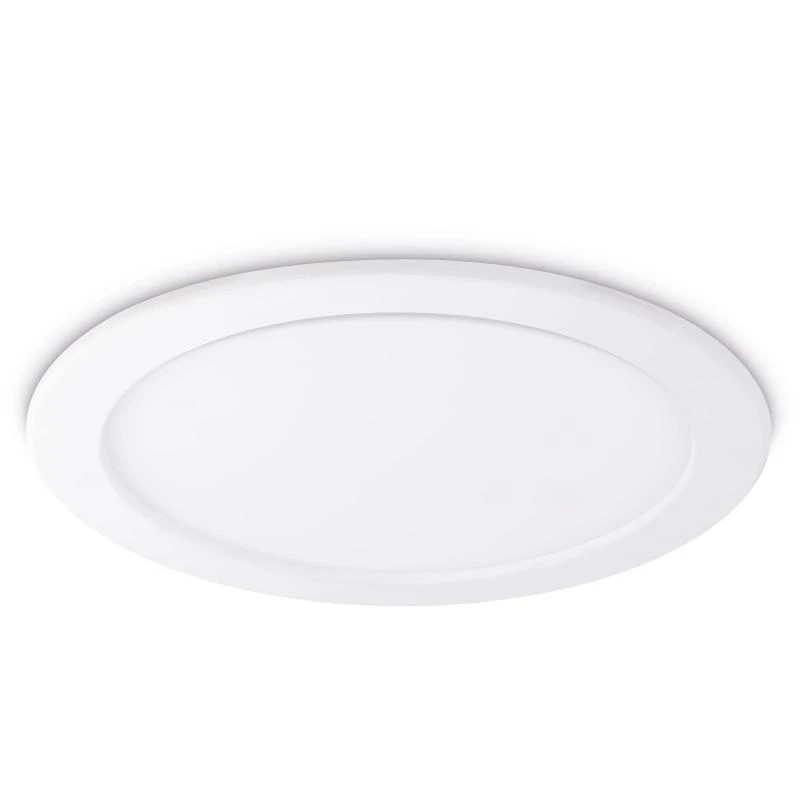

JCC a Leviton Company Downlight Slimline Commercial LED 4700K IP20 16W 1120LM 205mm

Description

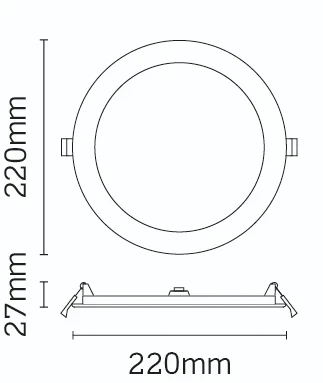

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Number of poles 2 Outer diameter 220 mm Height/depth 26 mm Number of lamps 1 Maximum system power 16 W Power factor 0.9 Rated life time L70/B50 at 25 °C 30000 h Nominal voltage 220 – 240 V Colour temperature 4700 – 4700 K Rated luminous flux according to IEC 62722-2- 1 1600 – 1600 lm Rated ambient temperature acc. IEC62722-2-1 – °C With movement sensor No Light source included Yes With light sensor No Dimming leading edge No Suitable for ceiling mounting Yes Dimming trailing edge No Control gear included Yes Suitable for surface mounting No Suitable for suspended mounting No Suitable for recessed mounting Yes Luminaire may be covered with thermally insulating material No Dimming DALI-2 No Replaceable control gear Yes Dimming LineSwitch No Dimming 0-10 V No Dimming 1-10 V No Dimming DMX No Dimming RF No Dimming Zigbee No Dimming touch and dim No Dimming DSI No Dimming with push-button No Dimming programmable No Dimming DALI No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709634 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709635 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709636
