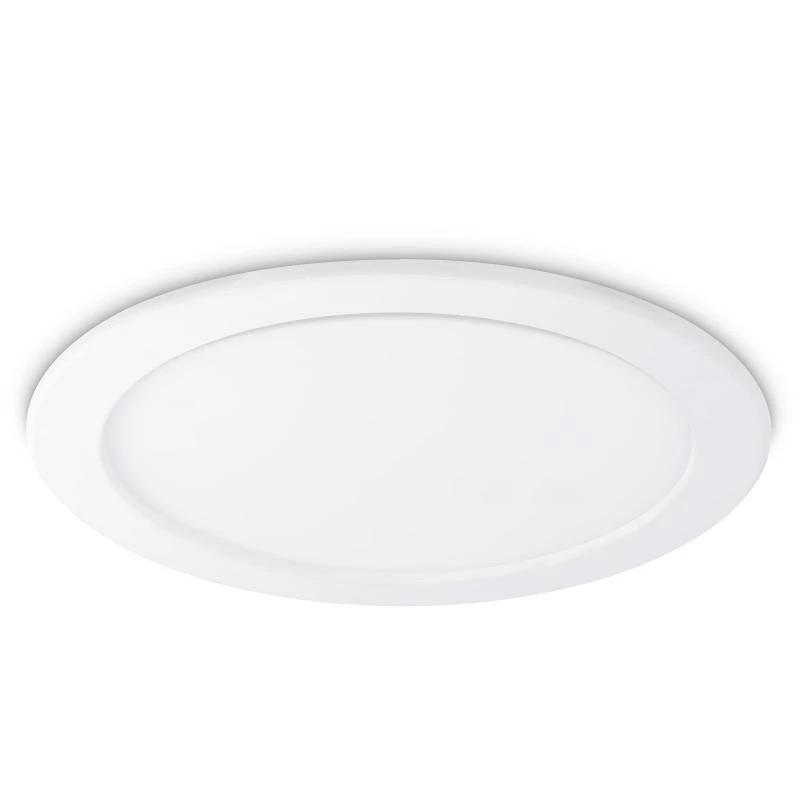

JCC a Leviton Company Downlight Slimline Commercial LED 4700K IP20 22W 1540LM 225mm

Description

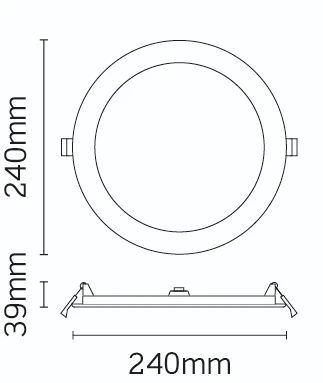

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Number of poles 2 Height/depth 26 mm Power factor 0.9 Number of lamps 1 Rated life time L70/B50 at 25 °C 30000 h Maximum system power 22 W Outer diameter 240 mm Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 – °C Colour temperature 4700 – 4700 K With movement sensor No Rated luminous flux according to IEC 62722-2- 1 2200 – 2200 lm With light sensor No Light source included Yes Suitable for suspended mounting No Dimming 1-10 V No Dimming LineSwitch No Replaceable control gear Yes Dimming DALI-2 No Dimming RF No Dimming DMX No Dimming 0-10 V No Dimming programmable No Dimming DALI No Dimming with push-button No Dimming trailing edge No Dimming leading edge No Dimming Zigbee No Dimming touch and dim No Suitable for surface mounting No Suitable for ceiling mounting Yes Suitable for recessed mounting Yes Control gear included Yes Luminaire may be covered with thermally insulating material No Dimming DSI No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709637 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709638 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709639
