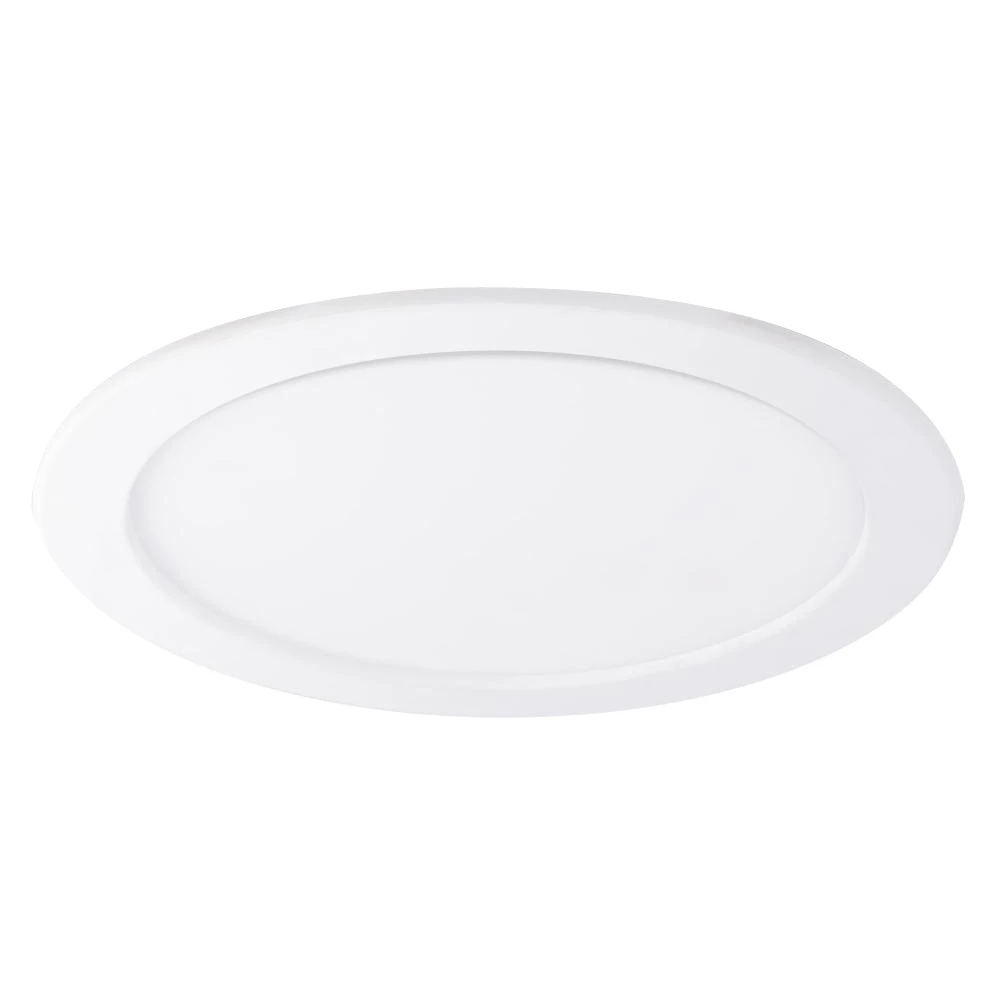

JCC a Leviton Company Downlight Skydisc Plus LED 4000K Dimmable IP65 23W 2160lm 225mm
JCC a Leviton Company Downlight Skydisc Plus LED 4000K Dimmable IP65 23W 2160lm 225mm
JCC a Leviton Company Downlight Skydisc Plus LED 4000K Dimmable IP65 23W 2160lm 225mm - Image 2
JCC a Leviton Company Downlight Skydisc Plus LED 4000K Dimmable IP65 23W 2160lm 225mm - Image 3

JCC a Leviton Company Downlight Skydisc Plus LED 4000K Dimmable IP65 23W 2160lm 225mm

£39.17 Incl. VAT

JCC Skydisc PC LED Downlight is dimmable, made of polycarbonate. Low profile design ideal for use in shallow voids. Manufactured according to the BS EN 60598:2015, 2-1, 2-2 standards. · · · Low profile design ideal for use in shallow voids · · Triac dimmable as standard · · suitable for use in bathrooms and indoor use only · · IP65 suitable for use in bathrooms (internal use only)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC72504 Categories: , , Brand: Product Code: 2501091715

Description

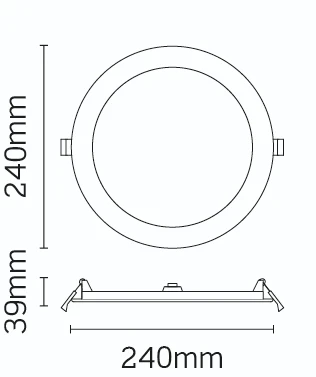

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Maximum system power 23 W Number of lamps 1 Outer diameter 240 mm Height/depth 27 mm Power factor 0.9 Number of poles 2 Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Rated luminous flux according to IEC 62722-2- 1 2300 – 2300 lm Rated ambient temperature acc. IEC62722-2-1 – °C With movement sensor No Light source included Yes With light sensor No Suitable for suspended mounting No Dimming DMX No Dimming mains voltage modulation Yes Dimming RF No Dimming DSI No Dimming with push-button No Dimming DALI No Dimming LineSwitch No Dimming sine wave reduction No Dimming trailing edge Yes Dimming Zigbee No Dimming leading edge Yes Dimming touch and dim No Suitable for surface mounting No Suitable for ceiling mounting Yes Control gear included Yes Suitable for recessed mounting Yes Luminaire may be covered with thermally insulating material No Dimming 0-10 V No Dimming programmable No Dimming 1-10 V No Dimming manufacturer’s proprietary system No · Technical Data Sheet – Click to Download
