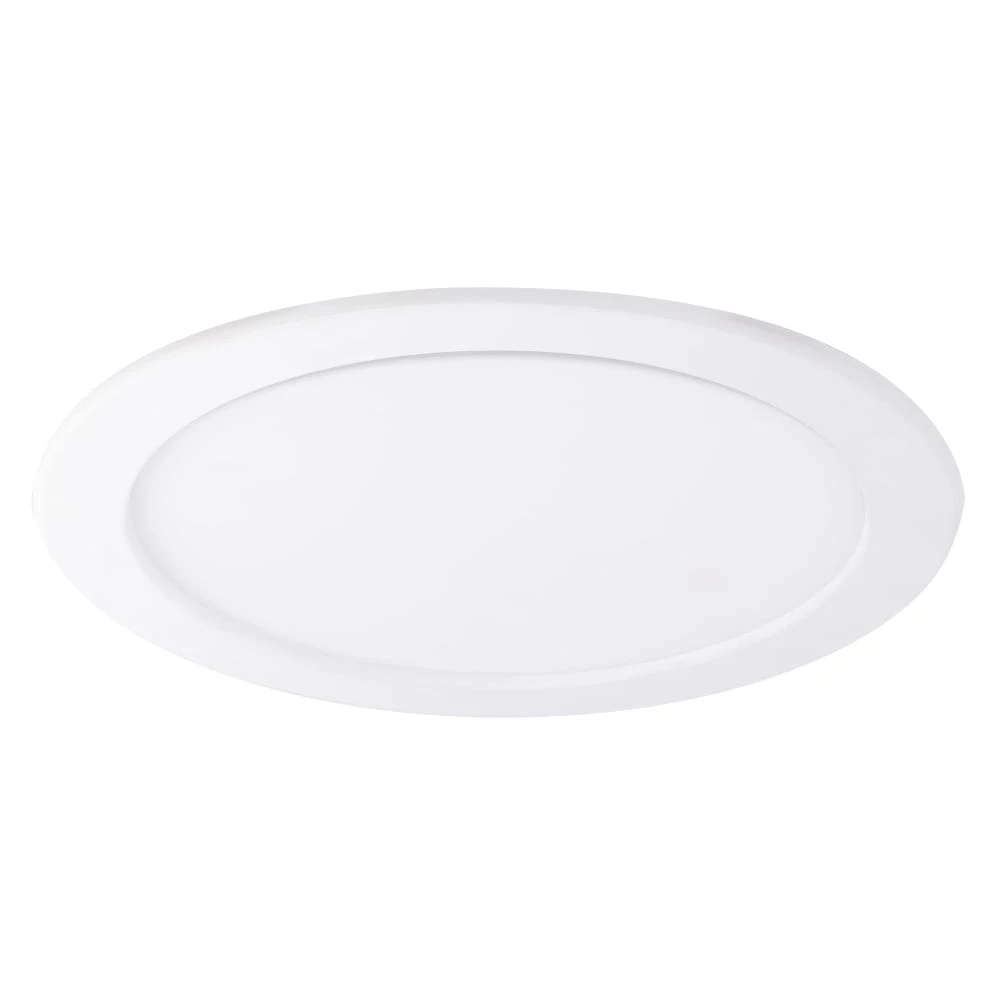

JCC a Leviton Company Downlight Skydisc Plus LED 4700K Dimmable IP65 13W 1260lm 155mm
JCC a Leviton Company Downlight Skydisc Plus LED 4700K Dimmable IP65 13W 1260lm 155mm
JCC a Leviton Company Downlight Skydisc Plus LED 4700K Dimmable IP65 13W 1260lm 155mm - Image 2
JCC a Leviton Company Downlight Skydisc Plus LED 4700K Dimmable IP65 13W 1260lm 155mm - Image 3

JCC a Leviton Company Downlight Skydisc Plus LED 4700K Dimmable IP65 13W 1260lm 155mm

£23.51 Incl. VAT

JCC Skydisc PC LED Downlight is dimmable, made of polycarbonate. Low profile design ideal for use in shallow voids. Manufactured according to the BS EN 60598:2015, 2-1, 2-2 standards. · · · Low profile design ideal for use in shallow voids · · Triac dimmable as standard · · suitable for use in bathrooms and indoor use only · · IP65 suitable for use in bathrooms (internal use only)

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC72506 Categories: , , Brand: Product Code: 2501091717

Description

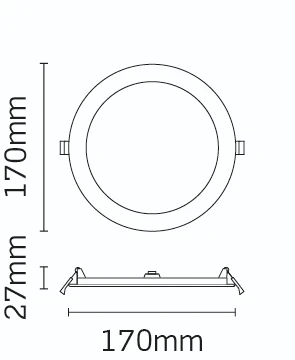

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Number of poles 2 Outer diameter 170 mm Height/depth 27 mm Maximum system power 13 W Power factor 0.9 Nominal voltage 220 – 240 V Number of lamps 1 Rated ambient temperature acc. IEC62722-2-1 – °C Colour temperature 4700 – 4700 K Rated luminous flux according to IEC 62722-2- 1 1300 – 1300 lm Light source included Yes Suitable for suspended mounting No With light sensor No With movement sensor No Dimming trailing edge Yes Suitable for ceiling mounting Yes Dimming Zigbee No Dimming leading edge Yes Suitable for surface mounting No Control gear included Yes Luminaire may be covered with thermally insulating material No Suitable for recessed mounting Yes Dimming 0-10 V No Dimming programmable No Dimming 1-10 V No Dimming manufacturer’s proprietary system No Dimming DMX No Dimming mains voltage modulation Yes Dimming RF No Dimming touch and dim No Dimming DSI No Dimming with push-button No Dimming DALI No Dimming LineSwitch No Dimming sine wave reduction No · Technical Data Sheet – Click to Download
