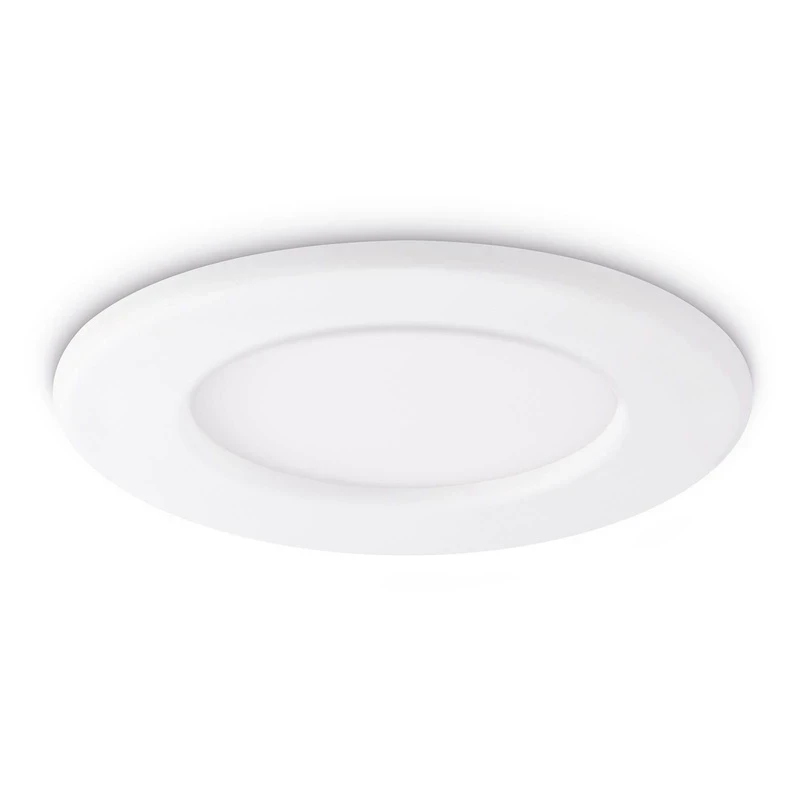

JCC JC73404 Skydisc LED Downlight IP20 10W 5700K 770lm

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Housing colour White Housing material Plastic Outer diameter 240 mm Maximum system power 10 W Rated luminous flux acc. IEC 62722-2-1 770 lm Height/depth 26 mm Rated life time L70/B50 at 25 °C 30000 h Luminaire efficacy 77 lm/W Power factor 0.9 Number of poles 2 Nominal voltage 220 – 240 V Colour temperature 5700 – 5700 K Replaceable control gear Yes Dimming DALI-2 No Dimming 1-10 V No Dimming 0-10 V No Dimming DALI No Dimming with push-button No Dimming programmable No Dimming DSI No Dimming LineSwitch No Dimming DMX No Light source included Yes Control gear included Yes Suitable for suspended mounting No Dimming trailing edge No Suitable for ceiling mounting Yes Luminaire may be covered with thermally insulating material No Suitable for surface mounting No Suitable for recessed mounting Yes Dimming Zigbee No Dimming leading edge No Dimming RF No Dimming touch and dim No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2054465
