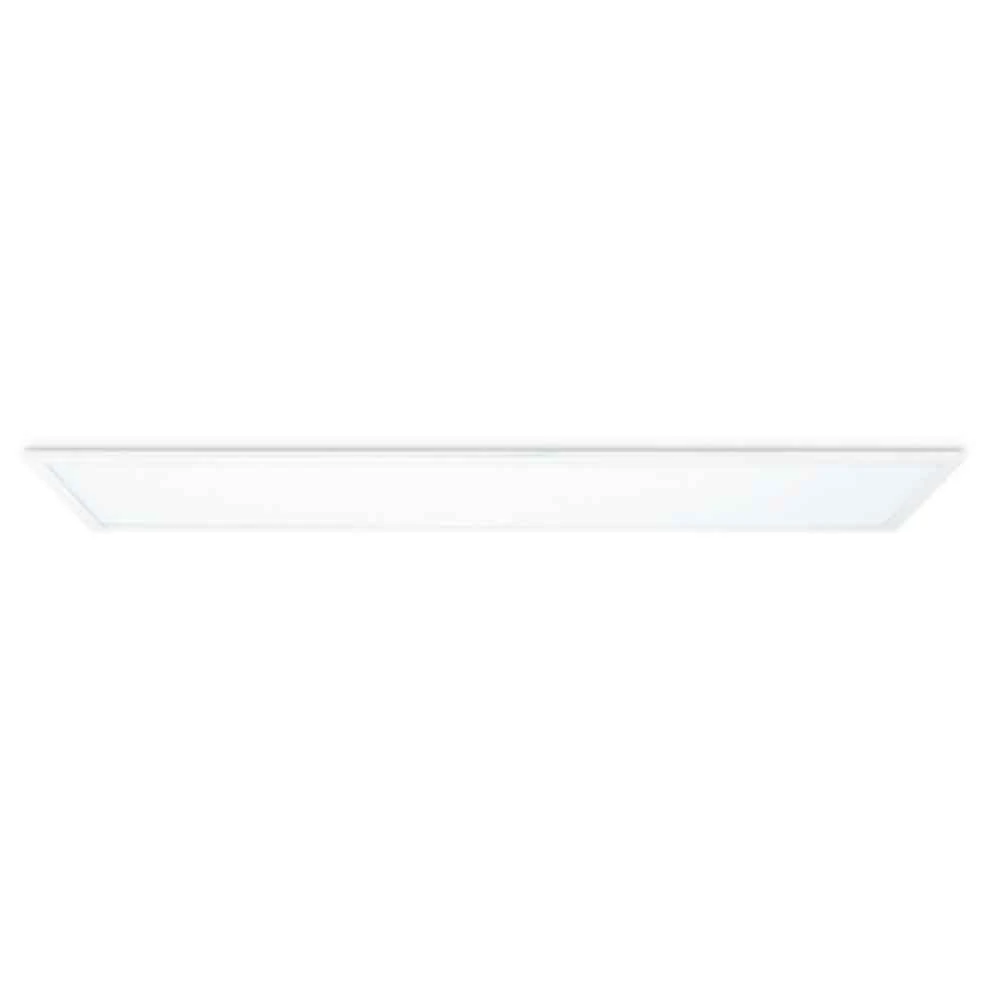

JCC a Leviton Company Skytile 1200x300mm 30W IP44 4000K 3000lm Tp(a) UGR <19 LED Panel

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Number of poles 2 Length 1195 mm Width 295 mm Height/depth 9.8 mm Number of lamps 1 Rated life time L70/B50 at 25 °C 54000 h Maximum system power 30 W Power factor 0.9 Nominal voltage 220 – 240 V Unified Glare Rating (UGR) 19 Nominal current 700 – 700 mA Colour temperature 4000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 0 – 25 °C Rated luminous flux according to IEC 62722-2- 1 3000 – 3000 lm With movement sensor No Suitable for suspended mounting Yes With light sensor No Suitable for light line configuration No Suitable for emergency lighting Yes Light source included Yes Suitable for recessed mounting Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Control gear included Yes Suitable for ceiling mounting Yes Suitable for surface mounting Yes Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 Yes Constant luminous flux control Yes Dimming trailing edge No Dimming Zigbee No Dimming leading edge No IFTTT support available No Compatible with Apple HomeKit No Dimming 1-10 V No Dimming 0-10 V Yes Dimming DALI No Dimming programmable No Bluetooth operated No Dimming with push-button No Dimming DSI No Dimming DMX No Dimming touch and dim No Dimming RF No With air slots No Dimming mains voltage modulation No Replaceable control gear Yes Dimming DALI-2 No Dimming manufacturer’s proprietary system No Dimming potentiometer (integrated) No Compatible with Amazon Alexa No Compatible with Google Assistant No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
