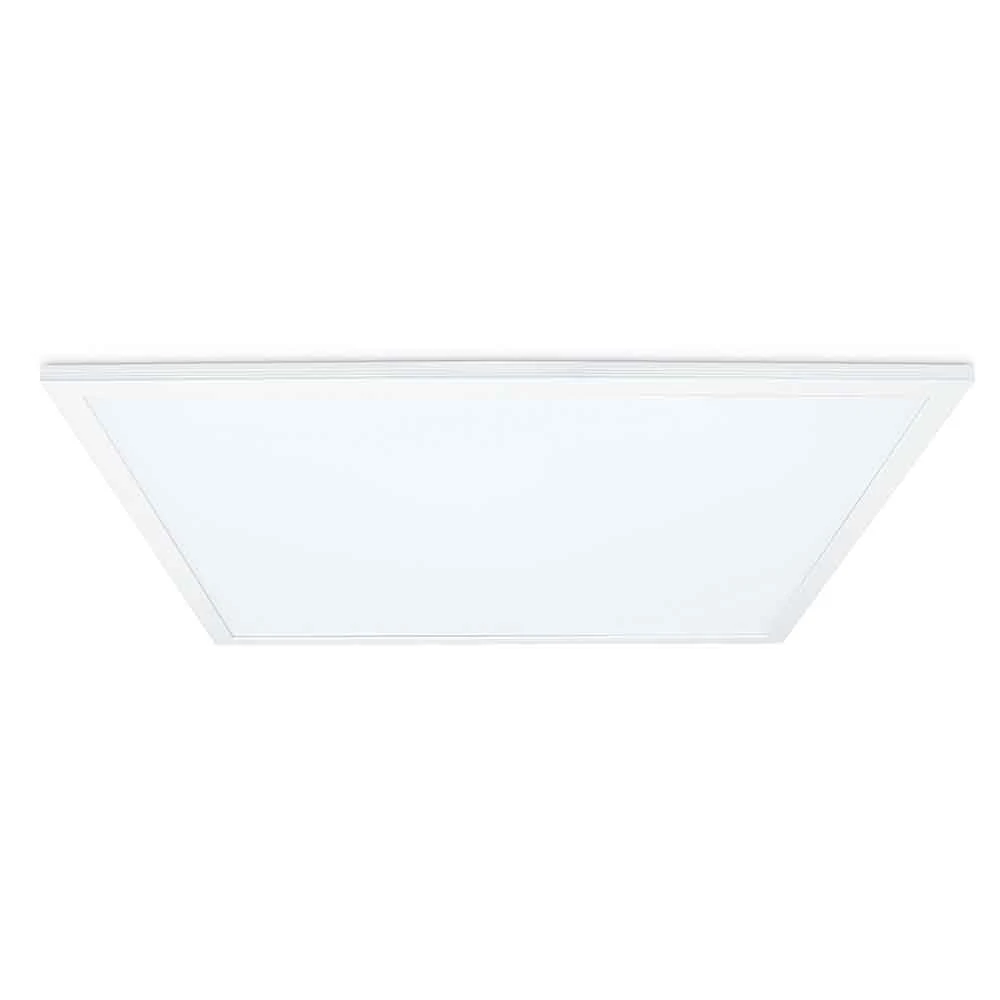

JCC a Leviton Company Skytile 600x600mm 30W IP44 3000K 3000lm Tp(a) UGR <19 LED Panel

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 595 mm Length 595 mm Rated life time L70/B50 at 25 °C 54000 h Maximum system power 30 W Unified Glare Rating (UGR) 19 Number of poles 2 Power factor 0.9 Height/depth 9.8 mm Number of lamps 1 Nominal voltage 220 – 240 V Nominal current 700 – 700 mA Colour temperature 3000 – 3000 K Rated ambient temperature acc. IEC62722-2-1 0 – 25 °C Rated luminous flux according to IEC 62722-2- 1 3000 – 3000 lm With movement sensor No Suitable for suspended mounting Yes Light source included Yes With light sensor No Suitable for light line configuration No Suitable for emergency lighting Yes Constant luminous flux control Yes Dimming trailing edge No Suitable for ceiling mounting Yes Dimming touch and dim No Dimming RF No Dimming leading edge No Dimming Zigbee No IFTTT support available No Luminaire may be covered with thermally insulating material No Suitable for recessed mounting Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Control gear included Yes Suitable for surface mounting Yes Fit for workplace acc. EN 12464-1 Yes Replaceable control gear Yes Dimming DALI-2 No Compatible with Amazon Alexa No Compatible with Google Assistant No Compatible with Apple HomeKit No Dimming manufacturer’s proprietary system No Dimming potentiometer (integrated) No Dimming 1-10 V No Dimming 0-10 V Yes Dimming DALI No Dimming programmable No Bluetooth operated No Dimming with push-button No Dimming DSI No Dimming DMX No With air slots No Dimming mains voltage modulation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
