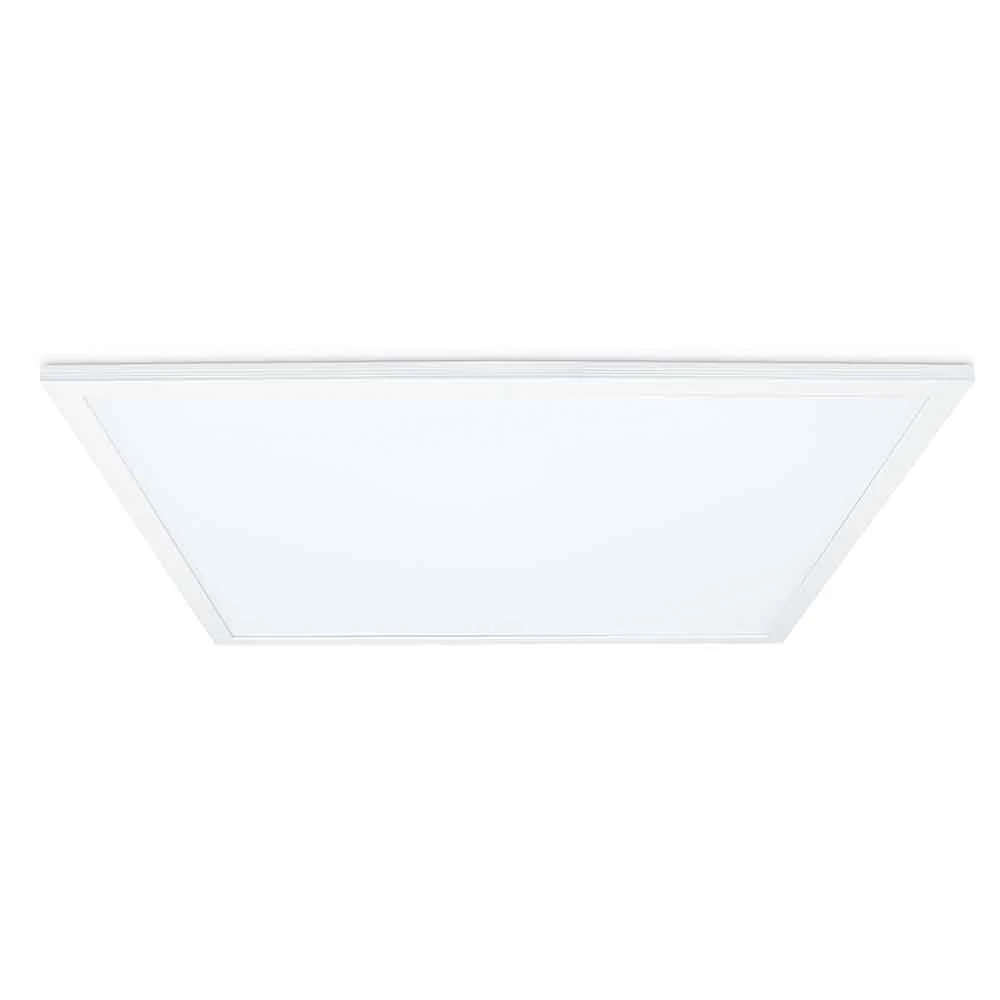

JCC a Leviton Company Skytile 600x600mm 30W IP44 5700K 3000lm Tp(a) UGR <19 LED Panel

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Number of poles 2 Length 595 mm Height/depth 9.8 mm Width 595 mm Number of lamps 1 Power factor 0.9 Rated life time L70/B50 at 25 °C 54000 h Maximum system power 30 W Unified Glare Rating (UGR) 19 Nominal voltage 220 – 240 V Nominal current 700 – 700 mA Colour temperature 5700 – 5700 K Rated ambient temperature acc. IEC62722-2-1 0 – 25 °C Rated luminous flux according to IEC 62722-2- 1 3000 – 3000 lm With light sensor No With movement sensor No Suitable for suspended mounting Yes Light source included Yes Suitable for recessed mounting Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for light line configuration No Suitable for emergency lighting Yes Constant luminous flux control Yes Suitable for ceiling mounting Yes With air slots No Dimming leading edge No Dimming trailing edge No Dimming touch and dim No Dimming Zigbee No Dimming RF No IFTTT support available No Control gear included Yes Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 Yes Suitable for surface mounting Yes Compatible with Google Assistant No Compatible with Apple HomeKit No Dimming with push-button No Dimming DALI No Dimming programmable No Dimming 0-10 V Yes Bluetooth operated No Dimming DSI No Replaceable control gear Yes Dimming DMX No Dimming mains voltage modulation No Dimming manufacturer’s proprietary system No Compatible with Amazon Alexa No Dimming DALI-2 No Dimming 1-10 V No Dimming potentiometer (integrated) No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
