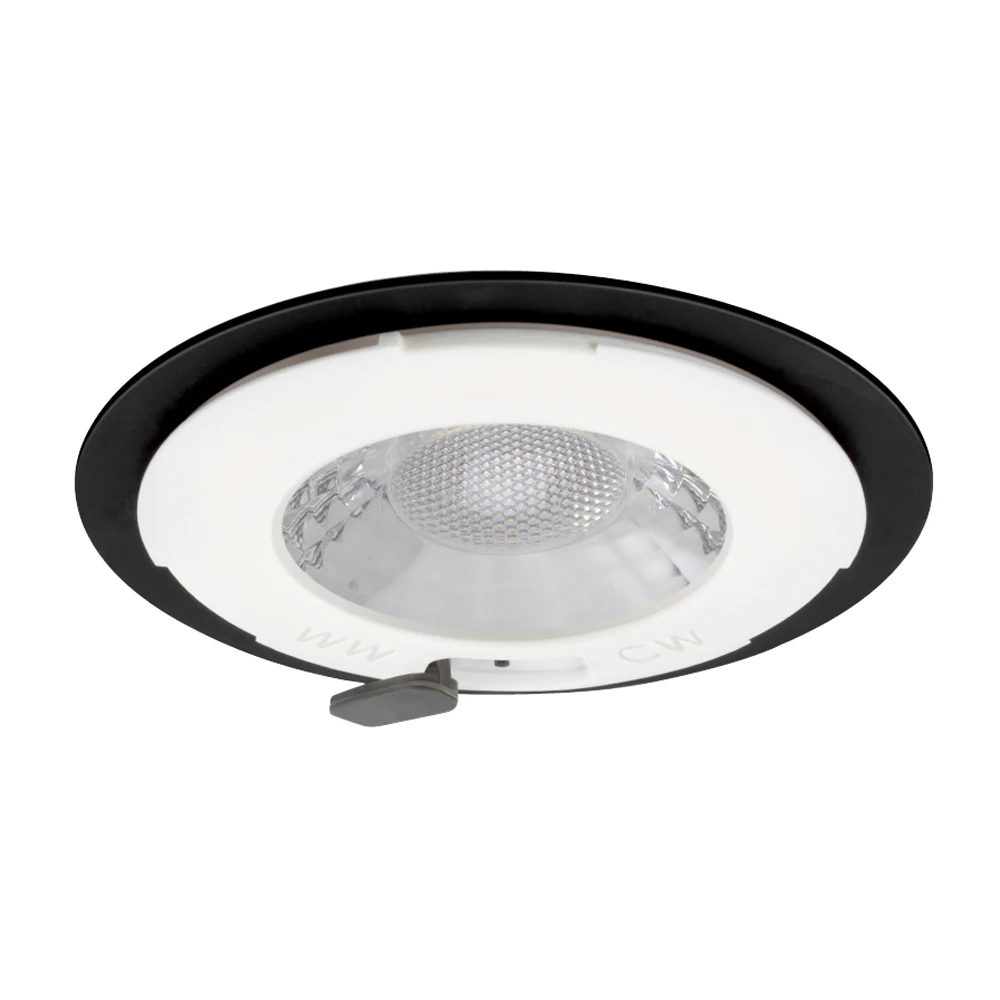

JCC V50 Fire-Rated LED Downlight 7.5W 650lm IP65 No Bezel
JCC V50 Fire-Rated LED Downlight 7.5W 650lm IP65 No Bezel
JCC V50 Fire-Rated LED Downlight 7.5W 650lm IP65 No Bezel - Image 2
JCC V50 Fire-Rated LED Downlight 7.5W 650lm IP65 No Bezel - Image 3

JCC V50 Fire-Rated LED Downlight 7.5W 650lm IP65 No Bezel

£17.86 Incl. VAT

Two colour selectable from below the ceiling 3000K & 4000KUltra-low profile suitable for shallow 50mm ceiling voidsTested for use in ?re-rated ceilingsIP65 suitable for bathrooms (internal use only)Strong protected spring clipsFast push-fit termination with remote driverTwist & lock bezel designAvailable as complete fixture (JC1001) or without bezel (JC1001/NB)JC1001/NB requires separate bezel (JC1006) · · · Two colour selectable from below the ceiling 3000K & 4000K · · Ultra-low profile suitable for shallow 50mm ceiling voids · · Tested for use in ?re-rated ceilings · · IP65 suitable for bathrooms (internal use only) · · Strong protected spring clips · · Fast push-fit termination with remote driver · · Twist & lock bezel design · · Available as complete fixture (JC1001) or without bezel (JC1001/NB) · · JC1001/NB requires separate bezel (JC1006)

68 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC1001/NB Categories: , , , Brand: Part Number: 2501091832

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 84 mm Number of lamps 0 Lamp cap/base E10 Height/depth 67.4 mm Luminaire efficacy 116 lm/W Rated luminous flux acc. IEC 62722-2-1 700 lm Number of poles 3 Light source included Yes Suitable for suspended mounting No With movement sensor No Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Colour temperature 3000 – 4000 K Nominal voltage 230 – 240 V Maximum system power 6 W Suitable for light line configuration No With light sensor No Suitable for emergency lighting No Dimming manufacturer’s proprietary system No Dimming 1-10 V No No dimming function No Dimming potentiometer (integrated) No Dimming depending on control gear Yes Dimming DALI No Fit for workplace acc. EN 12464-1 No Suitable for surface mounting No Control gear included Yes Dimming programmable No Dimming sine wave reduction No Dimming 0-10 V No Dimming trailing edge Yes Dimming with push-button No Dimming leading edge Yes With air slots Yes Suitable for ceiling mounting Yes Suitable for wall mounting No Luminaire may be covered with thermally insulating material Yes Suitable for recessed mounting No Dimming DSI No Dimming mains voltage modulation No Dimming DMX No Dimming touch and dim No Dimming Zigbee No Dimming RF No Dimming LineSwitch No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2083279
