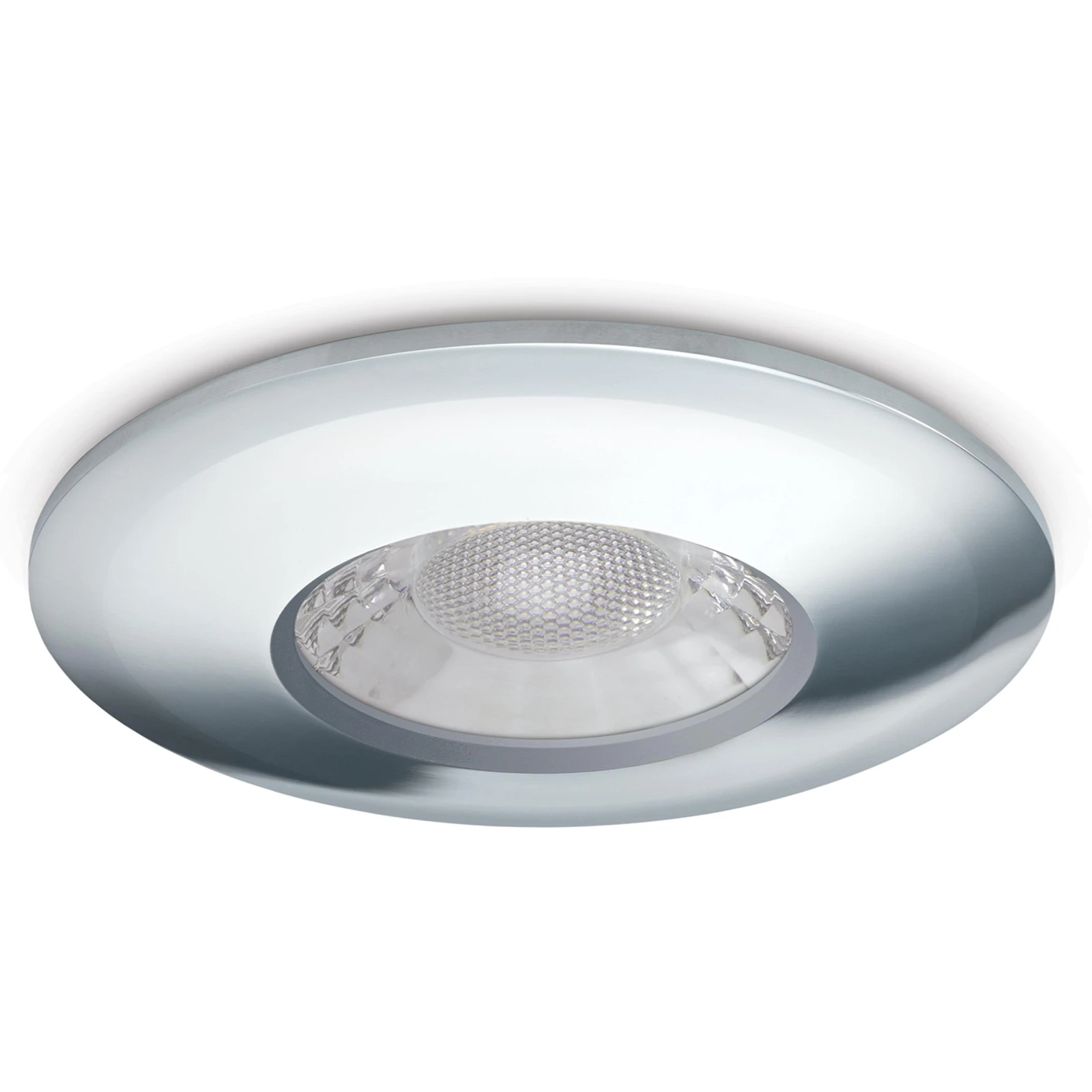

JCC V50 JC1001/CH LED Dimmable Downlight 7.5W CCT 3000/4000K Chrome
JCC V50 JC1001/CH LED Dimmable Downlight 7.5W CCT 3000/4000K Chrome
JCC V50 JC1001/CH LED Dimmable Downlight 7.5W CCT 3000/4000K Chrome - Image 2
JCC V50 JC1001/CH LED Dimmable Downlight 7.5W CCT 3000/4000K Chrome - Image 3
JCC V50 JC1001/CH LED Dimmable Downlight 7.5W CCT 3000/4000K Chrome - Image 4

JCC V50 JC1001/CH LED Dimmable Downlight 7.5W CCT 3000/4000K Chrome

£19.20 Incl. VAT

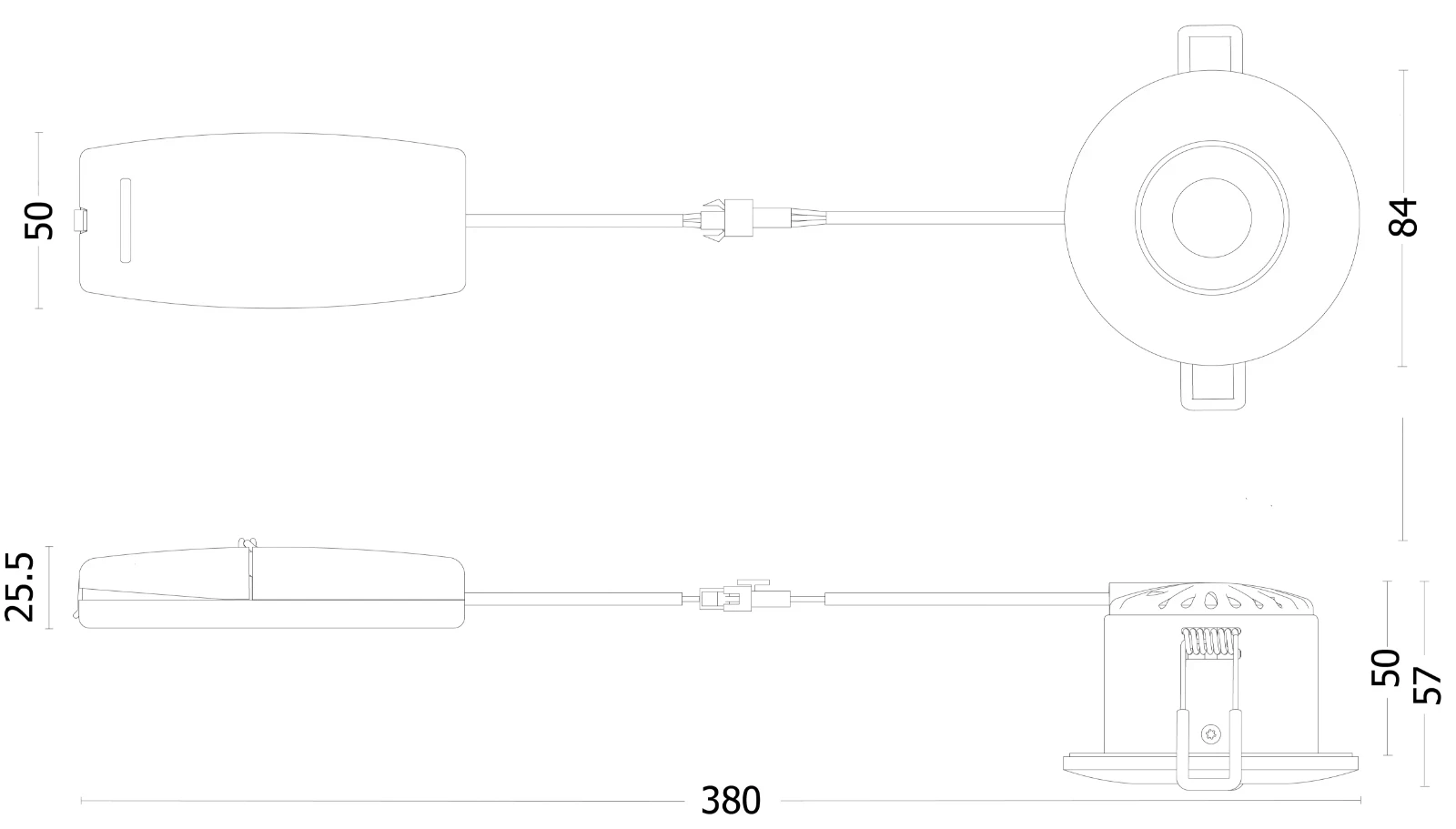

From the JCC V50 range of downlights, the JC1001 is suitable for lighting all areas of your home including living areas, kitchens and bathrooms with two colour selectable options of 3000K and 4000K. Standard features include being IP65, having a high light output of up to 650 Lumens from just a 7.5W LED built in lamp, dimmable out of the box with a compatible dimmer and quick to install with its push fit loop in loop out connector. This downlight comes with a Chrome bezel, alternative colour bezels are available. · · · Cutout size: 70mm · · Bezel Diameter: 84mm · · Overall Height: 68mm · · Strong protected spring clips · · Instant on – 7.5W 3000/4000K LED · · 600/650 lumens – 80/86.6 Lumens per circuit watt · · IP65 Rating · · Beam Angle: 60 degree · · Fully tested for 30, 60 and 90 minute fire rated ceilings · · Life Expectancy: Up to 51,000 hours / Warranty: 2 Years (Extendable)

165 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC1001/CH Categories: , , Brand: Part Number: 2501093887

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Lamp cap/base E10 Number of poles 3 Width 84 mm Number of lamps 0 Rated luminous flux acc. IEC 62722-2-1 700 lm Luminaire efficacy 116 lm/W Maximum system power 6 W Height/depth 67.4 mm Nominal voltage 230 – 240 V Colour temperature 3000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Suitable for suspended mounting No Fit for workplace acc. EN 12464-1 No Control gear included Yes Suitable for emergency lighting No Suitable for light line configuration No With light sensor No Light source included Yes With movement sensor No Suitable for surface mounting No Dimming Zigbee No Dimming leading edge Yes Dimming touch and dim No Luminaire may be covered with thermally insulating material Yes Suitable for recessed mounting No Suitable for wall mounting No Dimming RF No Dimming 0-10 V No Dimming 1-10 V No Dimming depending on control gear Yes Dimming manufacturer’s proprietary system No Dimming trailing edge Yes With air slots Yes Suitable for ceiling mounting Yes No dimming function No Dimming potentiometer (integrated) No Dimming DALI No Dimming programmable No Dimming with push-button No Dimming sine wave reduction No Dimming DSI No Dimming DMX No Dimming LineSwitch No Dimming mains voltage modulation No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2083279
