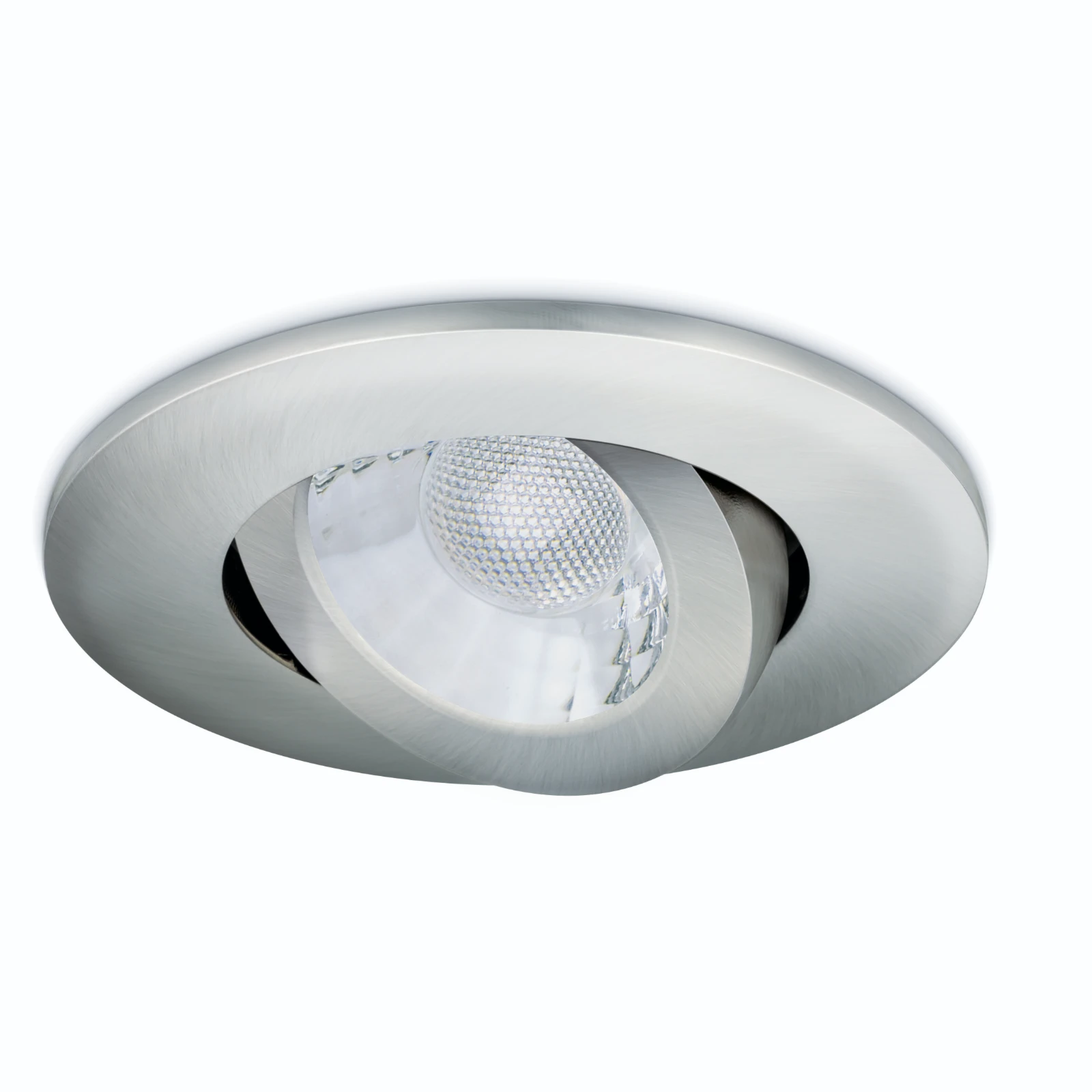

JCC V50 JC1002/BN LED Tilt Dimmable Downlight 7.5W CCT 3000/4000K Brushed Nickel
JCC V50 JC1002/BN LED Tilt Dimmable Downlight 7.5W CCT 3000/4000K Brushed Nickel
JCC V50 JC1002/BN LED Tilt Dimmable Downlight 7.5W CCT 3000/4000K Brushed Nickel - Image 2
JCC V50 JC1002/BN LED Tilt Dimmable Downlight 7.5W CCT 3000/4000K Brushed Nickel - Image 3
JCC V50 JC1002/BN LED Tilt Dimmable Downlight 7.5W CCT 3000/4000K Brushed Nickel - Image 4

JCC V50 JC1002/BN LED Tilt Dimmable Downlight 7.5W CCT 3000/4000K Brushed Nickel

£37.54 Incl. VAT

From the JCC V50 range of downlights, the JC1002 is suitable for lighting all areas of your home including living areas, kitchens and bathrooms with two colour selectable options of 3000K and 4000K. Standard features include being IP65, having a high light output of up to 650 Lumens from just a 7.5W LED built in lamp, dimmable out of the box with a compatible dimmer and quick to install with its push fit loop in loop out connector. This downlight comes with a Brushed Nickel bezel, alternative colour bezels are available. · · · Cutout size: 85mm · · Bezel Diameter: 100mm · · Overall Height: 105mm · · 20° tiltable and 350° rotatable lens · · Instant on – 7.5W 3000/4000K LED · · 600/650 lumens – 80/86.6 Lumens per circuit watt · · IP20 Rating · · Beam Angle: 60 degree · · Fully tested for 30, 60 and 90 minute fire rated ceilings · · Life Expectancy: Up to 51,000 hours / Warranty: 2 Years (Extendable)

65 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC1002/BN Categories: , , Brand: Part Number: 2501093889

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 84 mm Number of poles 3 Height/depth 67.7 mm Lamp cap/base E10 Rated luminous flux acc. IEC 62722-2-1 700 lm Luminaire efficacy 116 lm/W Number of lamps 0 Maximum system power 6 W Nominal voltage 230 – 240 V Colour temperature 3000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 25 – 25 °C Suitable for suspended mounting No With light sensor No Dimming leading edge Yes Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material Yes Suitable for ceiling mounting Yes Suitable for wall mounting No Light source included Yes With movement sensor No Suitable for recessed mounting No Control gear included Yes Dimming DSI No Dimming 0-10 V No Dimming manufacturer’s proprietary system No Dimming sine wave reduction No Dimming DMX No Dimming mains voltage modulation No Dimming potentiometer (integrated) No Dimming with push-button No Suitable for emergency lighting No Suitable for surface mounting No With air slots Yes Suitable for light line configuration No Dimming 1-10 V No No dimming function No Dimming touch and dim No Dimming programmable No Dimming DALI No Dimming trailing edge Yes Dimming depending on control gear No Dimming LineSwitch No Dimming RF No Dimming Zigbee No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2083279
