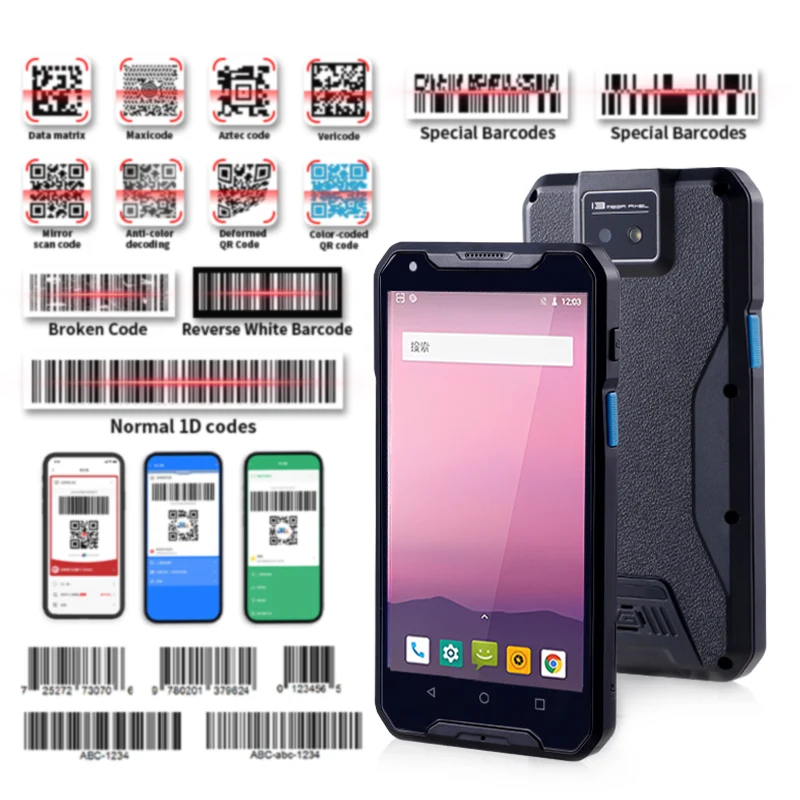

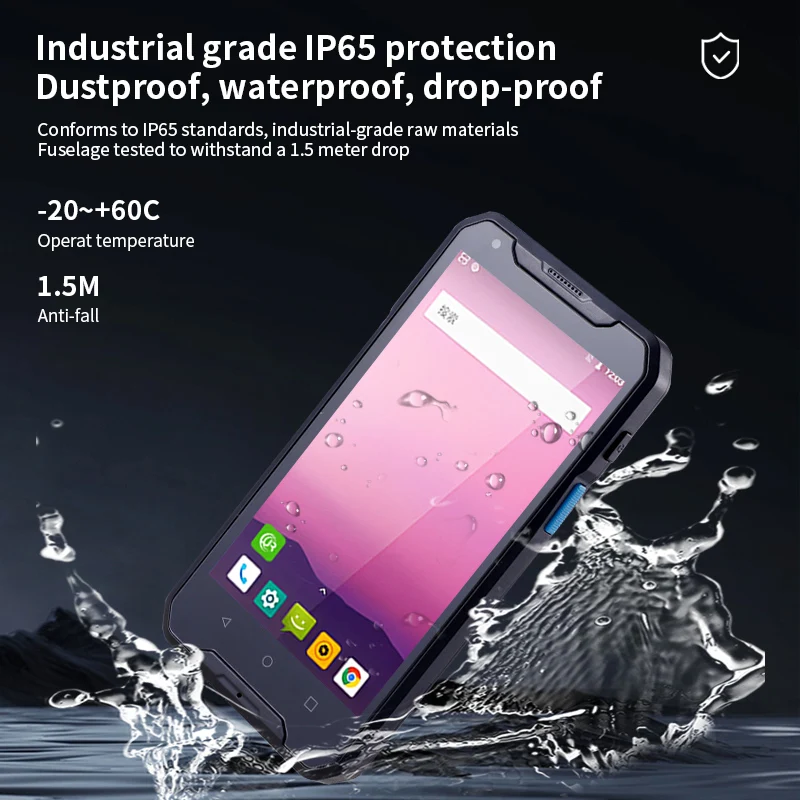

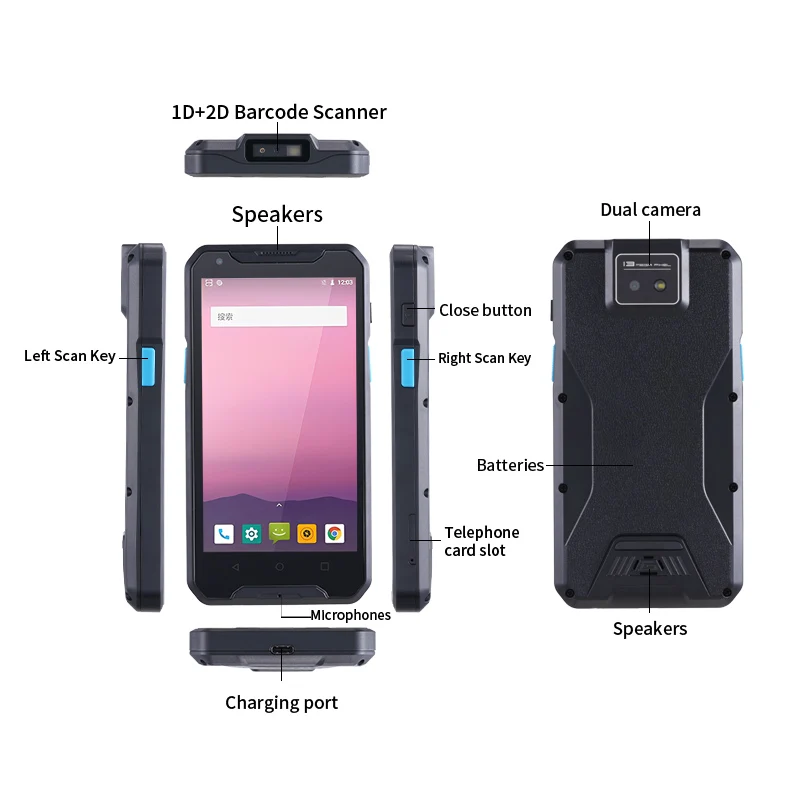

JR-927PDA 5.0 Inch PDA Rugged Android Smart Terminal 2D Barcode Scanner USB WIFI for IP64 High Quality Mobile Industrial

Description

Product description

Physical parameters Operating system Android 13 CPU Octa core A53，2.0GHZ MT6765V/CBA,MTK Size 146*mm*75mm*18.8mm Weight 208g Screen 5.0 capacitive touch resolution 720*1280 Storage RAM+ROM:4GB+64GB Expand memory Micro SD(TF) Supports up to 128GB Battery capacity Polymer lithium-ion battery 5950mA Standby time>300 hours Working time >13 hours (depending on usage and network environment) Charging time 2-3 hours (using standard power adapter and data cable) Expansion slot 1 SIM card slot, 1 Micro SD (TF) card slot Supports up to 128GB Communication Interface USB Type-C, support OTG function, support Pump Express Plus fast charge communication method 4G, 3G.2G full network, Bluetooth BT5.0 WIFI dual-band Wi-Fi 80211a/b/g/n/ac (2.4G+5GWi-Fi) Support Wi-Fi 5G hotspot Audio Microphone, earpiece, 1W speaker, supports voice calls Sensor Light sensor, distance sensor, gravity sensor, vibration motor Power Adapter 100-240V, 50-60Hz, 0.29A; Output: 5V, 2A Camera Dual-camera front camera 5 million, rear pixels 13 million WLAN Support IEEE802.11 ac/avb/g/n protocol (2.4/5G dual frequency GNSS Integrated GPS, Beidou, GLONASS, built-in antenna, supports AGPS Barcode collection Scan engine Support 1D/2D code scanning engine 2D scan engine SE66 1D barcode UPC/EAN,Code12 8,Code3 9,Code93,Code1 1,Intereaved 2 of5, Discrete 2 of 5, Chinese 2 of 5,Coda bar,MSl,RSS ，ect 2D Code PDF417,Micro PDF417 ,Composite ,RSs,TLC-39,Datamatrix,QRcode , Micro QR code , Aztec , MaxiCode, Postal Codes: Us Post Net ,UsPlanet ,UK Postal,Australian Postal ,Japan Postal, Dutch Postal (KlX)，ect Scanning accuracy ≥3mil Scan angle Tilt ±60°, deflection ±60°, rotation 360° Data communication WWAN (Network frequency) 2G：B2/B3/B5/B8 3G：WCDMA：B1/B5/B8 4G：FDD-LTE：B1/B3/B5/B7/B8/B20 ，TDD-LTE： B34/B38/B39/B40/B41 WWAN (data business) GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TD- SCDMA/TDD-LTE/FDD-LTE WLAN function Wi-Fi 802.11a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi), supports Wi-Fi 5G PA amplifier Bluetooth Bluetooth 5.0 GPS GPS/AGPS/Beidou/Galileo/GLONASS/QZSS WLAN Support IEEE802.11 ac/a/b/g/n protocol (2.4/5G dual frequency) GNSS Integrated GPS, Beidou, Galileo, GLONASS, built-in antenna, support for AGPS Use environment Operating temperature -20°C- 60°C Storage temperature -40℃-70℃ Environment humidity 5%RH-95%RH((no condensation) Drop specification 1.5m dropped to concrete floor multiple times Roller drop specification 1000 times 0.5m roller drop Protection level IP67 NFC Working frequency 13.56MHz Protocol standards ISO1444 3AB,ISO15 693,NFC-IP1,NFC-IP2，ect Labeling standards M1 card(S50,S70)，CPU card,NFC label，ect Reading and writing distance 2-5 cm WWAN GSM:850/900/1 800/1 90 0Mhz)TD-S CDMA : Band 3 4, Band 39 WCDMABand1,Band2,Band5 ,Band8 TDD-LTE : Band38,Band39 ,Band40 ,Band41FDD-LTE:B1/B2/83/B4/B5/B7/17/B20 Products Description Why Choose Us Shenzhen Jingrui Hengtong Electronics Co. (JR) company was established in 2013. It is a software manufacturer with 10 years of processing experience.With a strong R&D team, the company focuses on 2D scanning engine, 2D scanner, 2D imaging platform, and 2D mobile portable terminal. The products are widely used in libraries, medicine, public utilities, logistics, retail, warehousing, material management and many other fields.We have 1.Good quality control 2.Very competitive price 3.Effective OEM&ODM service Production Line Exhibition Certifications Product packaging
