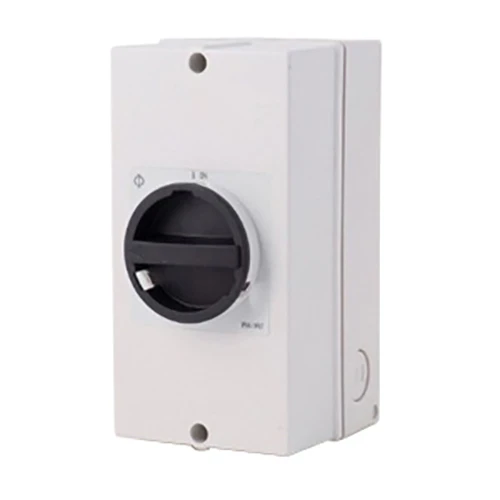

Kraus & Naimer Switch Disconnector Enclosure DP Off/On IP66/67 25A 450Vdc 20A 650Vdc
Awaiting product image

Kraus & Naimer Switch Disconnector Enclosure DP Off/On IP66/67 25A 450Vdc 20A 650Vdc

£60.17 Incl. VAT

Kraus & Naimer Enclosed DC Switch Disconnector for Photovoltaic Systems is designed and manufactured in accordance with the requirements of BS EN 60947-3. Switch Interlocked with lid to prevent opening in ON position. · · · IP66/67 protection rating · · Black/Grey padlockable handle · · Class II compliant, Grey insulated enclosure · · Earth terminal

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: KG20T104/D-P003KL51V Categories: , Brand: Product Code: 2500371147

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP67 Type of electrical connection of main circuit Screw connection Type of control element Short thumb-grip Rated permanent current Iu 25 A Rated operation power at AC-23, 400 V 7.5 kW Number of poles 2 Max. rated operation voltage Ue AC 690 V Rated operating voltage 690 – 690 V
