Kraus & Naimer Switch Disconnector Off Main/Emergency 4P IP66/67 20A Insulated Grey
Awaiting product image

Kraus & Naimer Switch Disconnector Off Main/Emergency 4P IP66/67 20A Insulated Grey

£46.02 Incl. VAT

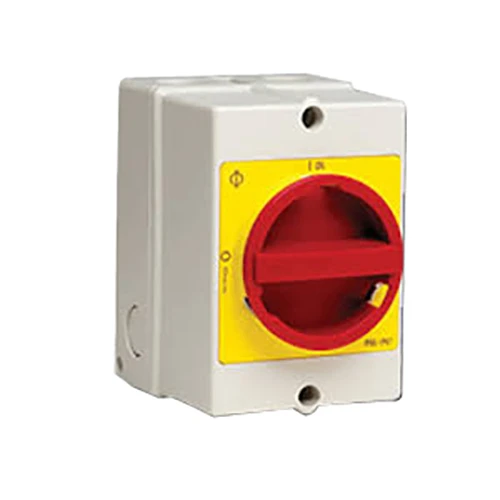

Kraus & Naimer Enclosed Main Switch-Disconnector is a 4 pole 20A enclosed switch disconnector. The enclosure is polycarbonate, giving the switch disconnector an Ingress Protection (IP) rating of IP67. There is a recessed switch handle which also contributes to this IP rating. The KG10T204/GBA290KS1V is interlocked with the lid to prevent removal when in the ‘ON’ position and it is padlockable when in the ‘OFF’ position. There is also an earth terminal included. · · · Dimensions 121 x 86 x 90mm · · IP67 protection rating · · BS EN 60947/60204 IEC 60947/60204 standards

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: KG10T204/GBA290KS1V Categories: , Brand: Product Code: 2500124322

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of electrical connection of main circuit Screw connection Degree of protection (IP), front side IP67 Type of control element Short thumb-grip Rated permanent current Iu 20 A Rated operation power at AC-23, 400 V 5.5 kW Number of poles 4 Rated operating voltage 690 – 690 V Max. rated operation voltage Ue AC 690 V
