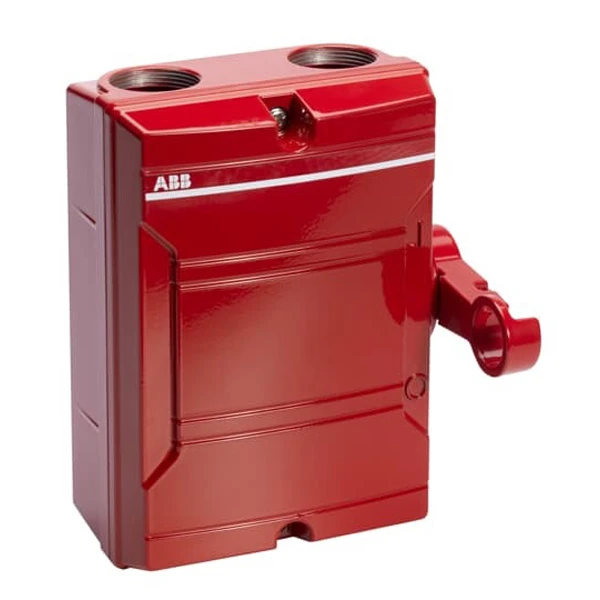

image-10352
Product image supplied by the manufacturer
Switchgear & Distribution

ABB KSF225DP Fireman switch

SKU: 2CMA142435R1000Go Magpie ID: 5060062361480

ABB Fireman Enclosed Switch is made of non-flammable aluminium alloy rigid silumin. It is painted red in order to be easy to spot. The ON and OFF positions are clearly indicated on the front side with I and O. The operating handle is designed in such a way that a fireman hook or axe can be used to switch OFF. To reset a so called two hands grip must be used. The interlocking mechanism prevents accidental manoeuvres. · · · Robust and reliable design in non flammable material · · Operating handle locked in O position and a two hands grip to reset for safety reasons · · Easy to install and to operate · · possible to add on an auxiliary contact · · Complies with IEC 60947-3 and BS7671 standards · · IP65 Protection rating

£188.45inc VAT£157.04 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of poles 2 Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Conditioned rated short-circuit current Iq – kA Rated operation power at AC-3, 400 V – kW Rated short-time withstand current lcw – kA Rated permanent current Iu 25 A Rated permanent current at AC-21, 400 V – A Switching power at 400 V – kW Number of auxiliary contacts as change-over contact 0.00 Number of switches 1 Max. rated operation voltage Ue AC 690 V Rated operation power at AC-23, 400 V – kW Rated permanent current at AC-23, 400 V – A Rated operating voltage 690 – 690 V Voltage release optional No Version as reversing switch No Motor drive optional No Version as emergency stop installation No Version as main switch Yes Version as maintenance-/service switch No Version as safety switch No Motor drive integrated No Suitable for front mounting 4-hole Yes Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting No Interlockable No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1590241 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1590242

YOU MAY ALSO NEED

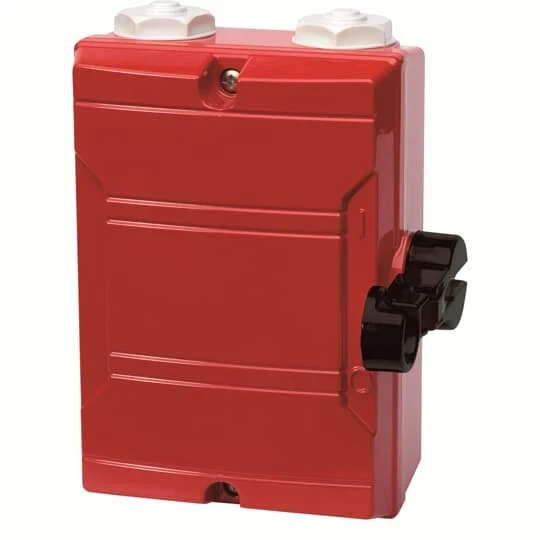

Related products
