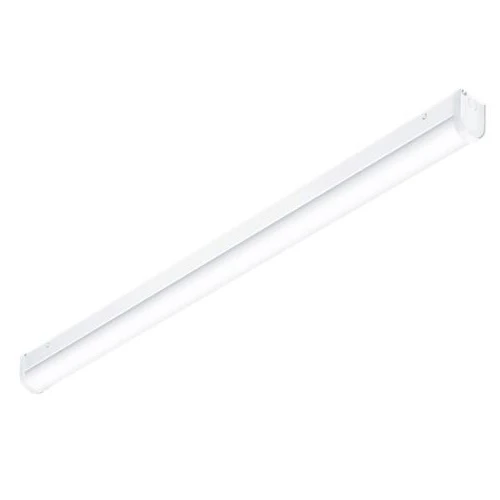

LED Batten Poppy 1500mm IP20 40W 4500lm 4000K E3

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Type of grid None Housing material Steel Impact resistance (IK rating) IK08 Colour rendering index (CRI/Ra) 80-89 Cover material Plastic opal Light distribution Symmetric Protection class according to IEC 61140 I Lumen setting adjustable No Degree of protection (IP rating) IP20 Light outlet Direct Filament test according to IEC 60695-2-11 850 C – 30 s Light source type LED non-replaceable Colour consistency (McAdam ellipse) SDCM5 Control gear LED driver constant current Housing colour White Colour temperature switchable No Luminous intensity – cd Number of lamps 1 Rated luminous flux acc. IEC 62722-2-1 4504 lm Recess length – mm Power factor 0.9 Voltage type AC Width 62 mm Recess height/depth – mm Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 70 % Luminaire efficacy – lm/W Stroboscope effect value SVM – Unified Glare Rating (UGR) 25 Flickering value Pst LM – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C 50000 h Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Maximum system power 40 W Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 75 % Max. number of luminaires per miniature circuit breaker B16 – Energy Efficiency Index (EEI) – Total harmonic distortion 15 Max. number of luminaires per miniature circuit breaker C16 – Number of poles – Recess diameter – mm Conductor cross section – mm² Lamp power – W Length 1460 mm Height/depth 77 mm Recess width – mm Outer diameter – mm Nominal current – – – mA Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 0 – 25 °C With movement sensor No Suitable for suspended mounting No Light source included Yes With light sensor No Suitable for emergency lighting Yes Dimming DSI No Dimming depending on control gear No Dimming DALI-2 No Replaceable control gear Yes Suitable for ceiling mounting Yes Suitable for wall mounting No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Dimming 1-10 V No Dimming DALI No Constant luminous flux control No Compatible with Amazon Alexa No Compatible with Google Assistant No Dimming 0-10 V No Dimming DMX No Dimming potentiometer (integrated) No IFTTT support available No Suitable for light line configuration No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Emergency power supply integrated No Suitable for surface mounting Yes Control gear included Yes Bluetooth operated No Dimming leading edge No Dimming Zigbee No Dimming with push-button No No dimming function Yes Compatible with Apple HomeKit No Suitable for recessed mounting No Dimming programmable No Dimming trailing edge No Dimming mains voltage modulation No Dimming RF No Dimming sine wave reduction No Dimming touch and dim No With air slots No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
