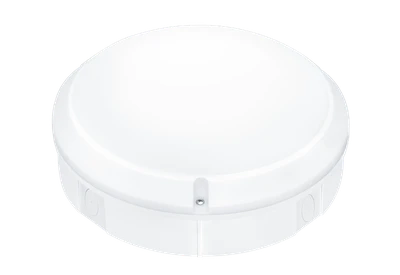

LED Bulkhead Lara 250mm IP65 11,5W 1200/1000/800lm 830/35/40K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing material Plastic Protection class according to IEC 61140 II Type of grid None Colour rendering index (CRI/Ra) 80-89 Colour consistency (McAdam ellipse) SDCM4 Impact resistance (IK rating) IK10 Cover material Plastic opal Photobiological safety according to EN 62471 RG0 Light distribution Symmetric Housing colour White Light source type LED non-replaceable Degree of protection (IP rating) IP65 Filament test according to IEC 60695-2-11 850 C – 30 s Control gear LED driver constant current Colour temperature switchable Discrete positions Lumen setting adjustable Discrete positions Colour of light White Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Flickering value Pst LM – Unified Glare Rating (UGR) 23 Width – mm Voltage type AC Light outlet Direct Stroboscope effect value SVM – Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Total harmonic distortion 25 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Luminaire efficacy – lm/W Max. number of luminaires per miniature circuit breaker B16 11 Max. number of luminaires per miniature circuit breaker C16 13 Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C 74000 h Luminous intensity – cd Recess length – mm Rated luminous flux acc. IEC 62722-2-1 1200 lm Maximum system power 11.5 W Power factor 0.83 Energy Efficiency Index (EEI) – Recess height/depth – mm Conductor cross section – mm² Outer diameter 250 mm Length – mm Recess width – mm Height/depth 75 mm Number of lamps 1 Number of poles – Recess diameter – mm Lamp power – W Colour temperature 3000 – 4000 K Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Nominal current – – – mA Suitable for suspended mounting No With movement sensor No With light sensor No Light source included Yes Dimming 0-10 V No Constant luminous flux control No Suitable for ceiling mounting No Suitable for wall mounting Yes Suitable for recessed mounting No Control gear included Yes Suitable for emergency lighting No Dimming DMX No Dimming 1-10 V No Dimming DALI No IFTTT support available No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Emergency power supply integrated No Suitable for surface mounting Yes Suitable for light line configuration No Dimming potentiometer (integrated) No Dimming manufacturer’s proprietary system No Dimming LineSwitch No Dimming trailing edge No Dimming mains voltage modulation No Replaceable control gear Yes Dimming depending on control gear No Bluetooth operated No Dimming DSI No With air slots No Luminaire may be covered with thermally insulating material No Compatible with Google Assistant No Compatible with Apple HomeKit No Dimming DALI-2 No Compatible with Amazon Alexa No No dimming function Yes Fit for workplace acc. EN 12464-1 No Dimming leading edge No Dimming programmable No Dimming RF No Dimming with push-button No Dimming Zigbee No Dimming touch and dim No Dimming sine wave reduction No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
