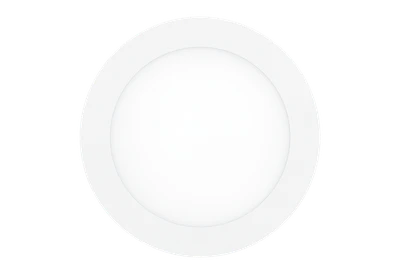

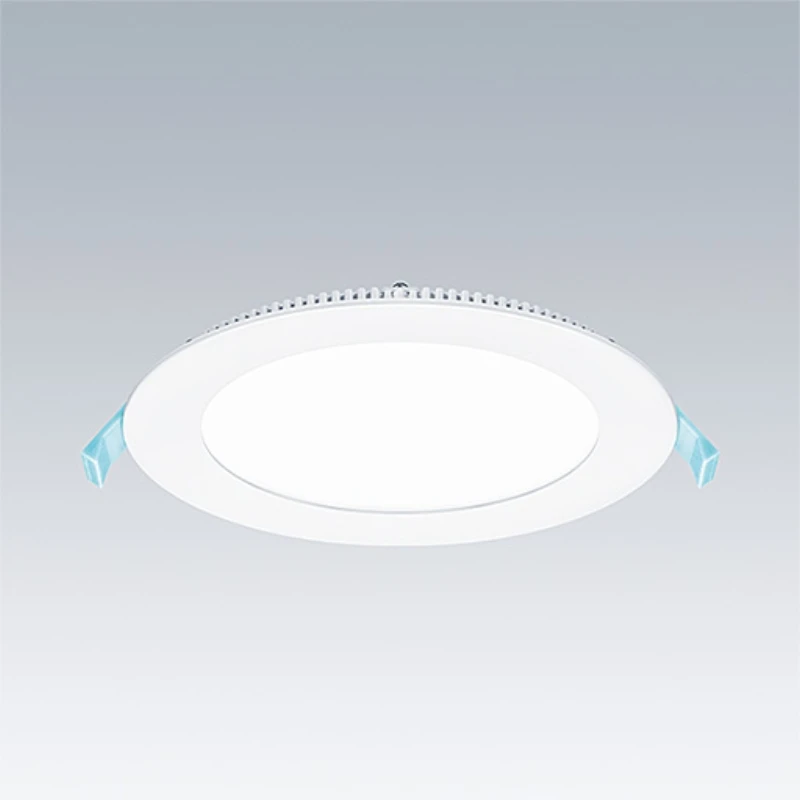

LED Downlight Slim Zoe 210mm IP44 18W 1600lm 830/35/40K

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Lamp cap/base None Reflector None Impact resistance (IK rating) IK03 Protection class according to IEC 61140 II Adjustability not adjustable Colour rendering index (CRI/Ra) 80-89 Colour consistency (McAdam ellipse) SDCM4 Degree of protection (IP rating) IP44 Filament test according to IEC 60695-2-11 650 C – 30 s Cover material Plastic opal Photobiological safety according to EN 62471 RG0 Light distribution Symmetric Housing material Aluminium Light source type LED non-replaceable Control gear LED driver constant current Colour of light White Housing colour White Colour temperature switchable No Lumen setting adjustable No Height/depth 26 mm Recess width – mm Number of poles – Conductor cross section – mm² Width – mm Outer diameter 220 mm Voltage type AC Light outlet Direct Luminous intensity – cd Length – mm Unified Glare Rating (UGR) 27 Total harmonic distortion 15 Maximum system power 18 W Luminaire efficacy – lm/W Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Max. number of luminaires per miniature circuit breaker C16 88 Max. number of luminaires per miniature circuit breaker B16 61 Flickering value Pst LM – Recess length – mm Number of lamps 1 Rated luminous flux acc. IEC 62722-2-1 1600 lm Rated life time L70/B50 at 25 °C 74000 h Recess height/depth 49 mm Power factor 0.9 Nominal voltage 220 – 240 V Lamp power – W Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Stroboscope effect value SVM – Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Colour temperature 3000 – 4000 K Connectable conductor cross section – mm² Luminous flux – – – lm Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Cut-out diameter – – 210 mm With light sensor No With movement sensor No Suitable for suspended mounting No Suitable for ceiling mounting Yes Fit for workplace acc. EN 12464-1 No Suitable for surface mounting No Suitable for clamp-mounting No Suitable for light-track mounting No Suitable for wall mounting No Suitable for pedestal/floor mounting No Suitable for traverse mounting No Replaceable control gear Yes Constant luminous flux control No IFTTT support available No Control gear included Yes Suitable for recessed mounting Yes Emergency power supply integrated No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Light source included Yes Dimming sine wave reduction No Dimming RF No No dimming function Yes Brushed surface No Dimming with push-button No Dimming Zigbee No Dimming touch and dim No Luminaire may be covered with thermally insulating material No Compatible with Google Assistant No Dimming 1-10 V No Dimming 0-10 V No Dimming leading edge No Dimming programmable No Compatible with Amazon Alexa No Dimming DALI-2 No Suitable for low voltage cable system No Dimming mains voltage modulation No Dimming trailing edge No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Compatible with Apple HomeKit No Dimming DMX No Dimming DALI No Dimming potentiometer (integrated) No Dimming DSI No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
