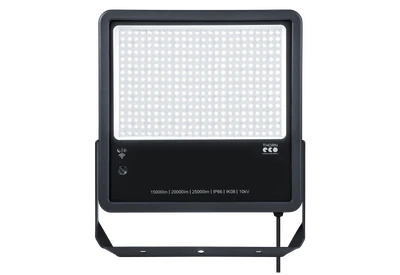

LED Flood light Leo IP66 120W 15000/12500/10000lm 4000K asym

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Reflector None Lamp cap/base None Photobiological safety according to EN 62471 RG1 Impact resistance (IK rating) IK08 Colour rendering index (CRI/Ra) 80-89 Filament test according to IEC 60695-2-11 650 C – 30 s Light distribution Asymmetric Degree of protection (IP), front side IP66 Degree of protection (IP rating) IP66 Colour of light White Cover material Glass transparent Lumen setting adjustable Discrete positions Protection class according to IEC 61140 I Colour temperature switchable No Colour consistency (McAdam ellipse) SDCM5 Control gear LED driver constant current Adjustability Swivelling Housing colour Anthracite Light source type LED non-replaceable Light outlet Direct Voltage type AC Housing material Aluminium Outer diameter – mm Conductor cross section – mm² Recess width – mm Luminous intensity – cd Number of poles – Length 330 mm Width 419 mm Rated luminous flux acc. IEC 62722-2-1 15015 lm Recess height/depth – mm Number of lamps 1 Maximum system power 120 W Luminaire efficacy – lm/W Max. number of luminaires per miniature circuit breaker C16 9 Total harmonic distortion 15 Rated life time L70/B50 at 25 °C 74000 h Power factor 0.91 Stroboscope effect value SVM – Flickering value Pst LM – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Unified Glare Rating (UGR) 32 Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Max. number of luminaires per miniature circuit breaker B16 8 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Height/depth 56 mm Recess length – mm Lamp power – W Colour temperature 4000 – 4000 K Nominal voltage 100 – 277 V Connectable conductor cross section – mm² Luminous flux – – – lm Rated ambient temperature acc. IEC62722-2-1 -30 – 50 °C Cut-out diameter – mm With light sensor Yes Replaceable control gear No No dimming function Yes Dimming with push-button No Dimming DALI-2 No Suitable for low voltage cable system No Dimming DSI No Compatible with Google Assistant No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Dimming sine wave reduction No Dimming RF No Dimming Zigbee No Dimming touch and dim No With movement sensor No Suitable for wall mounting No Suitable for suspended mounting No Suitable for ceiling mounting No Suitable for traverse mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Emergency power supply integrated No Light source included Yes Suitable for recessed mounting No Luminaire may be covered with thermally insulating material No Control gear included Yes Constant luminous flux control No Suitable for surface mounting No Fit for workplace acc. EN 12464-1 No Dimming mains voltage modulation No Dimming trailing edge No Dimming programmable No Dimming leading edge No Dimming potentiometer (integrated) No Dimming DMX No Dimming LineSwitch No Dimming manufacturer’s proprietary system No IFTTT support available No Dimming 0-10 V No Brushed surface No Suitable for pedestal/floor mounting No Suitable for light-track mounting No Suitable for clamp-mounting No Dimming 1-10 V No Dimming DALI No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
