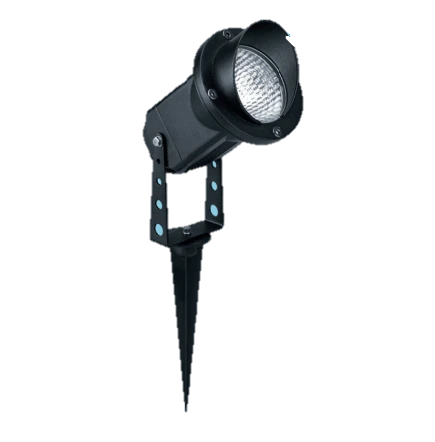

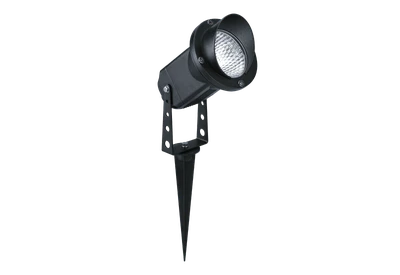

THORNeco LED Gardenspot Mary IP66 8W 500lm 3000K

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Lamp cap/base None Reflector None Colour rendering index (CRI/Ra) 80-89 Colour consistency (McAdam ellipse) SDCM6 Photobiological safety according to EN 62471 RG1 Impact resistance (IK rating) IK08 Housing colour Black Protection class according to IEC 61140 I Cover material Glass transparent Colour of light White Filament test according to IEC 60695-2-11 650 C – 30 s Control gear LED driver constant current Light distribution Asymmetric Adjustability Rotatable Degree of protection (IP), front side IP66 Lumen setting adjustable No Colour temperature switchable No Voltage type AC Light outlet Direct Light source type LED non-replaceable Housing material Aluminium Outer diameter 95 mm Conductor cross section – mm² Number of poles – Width – mm Length – mm Stroboscope effect value SVM – Flickering value Pst LM – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Number of lamps 1 Height/depth 380 mm Max. number of luminaires per miniature circuit breaker C16 82 Unified Glare Rating (UGR) – Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Max. number of luminaires per miniature circuit breaker B16 65 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Maximum system power 8 W Rated life time L70/B50 at 25 °C 74000 h Power factor – Lamp power – W Nominal voltage 220 – 240 V Connectable conductor cross section – mm² Colour temperature 3000 – 3000 K Rated ambient temperature acc. IEC62722-2-1 -20 – 50 °C Cut-out diameter – mm With movement sensor No Constant luminous flux control No Suitable for surface mounting No Brushed surface No Fit for workplace acc. EN 12464-1 Yes Control gear included Yes Light source included Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for recessed mounting No Luminaire may be covered with thermally insulating material No With light sensor No Suitable for wall mounting No Suitable for suspended mounting No Suitable for traverse mounting No Suitable for ceiling mounting No Dimming RF No Dimming LineSwitch No Dimming sine wave reduction No Dimming programmable No Dimming leading edge No Dimming mains voltage modulation No Dimming trailing edge No Dimming manufacturer’s proprietary system No Dimming potentiometer (integrated) No Suitable for pedestal/floor mounting No Suitable for light-track mounting No Suitable for clamp-mounting No IFTTT support available No Dimming 0-10 V No Dimming 1-10 V No Dimming DMX No Dimming DALI No Compatible with Amazon Alexa No Compatible with Google Assistant No Compatible with Apple HomeKit No Dimming Zigbee No Dimming touch and dim No Dimming DSI No Dimming with push-button No Replaceable control gear No Suitable for low voltage cable system No Dimming DALI-2 No · Technical Data Sheet – Click to Download
