LED Module With Integrated LED 230V Ac
LED Module With Integrated LED 230V Ac
LED Module With Integrated LED 230V Ac - Image 2
LED Module With Integrated LED 230V Ac - Image 3

LED Module With Integrated LED 230V Ac

£15.16 Incl. VAT

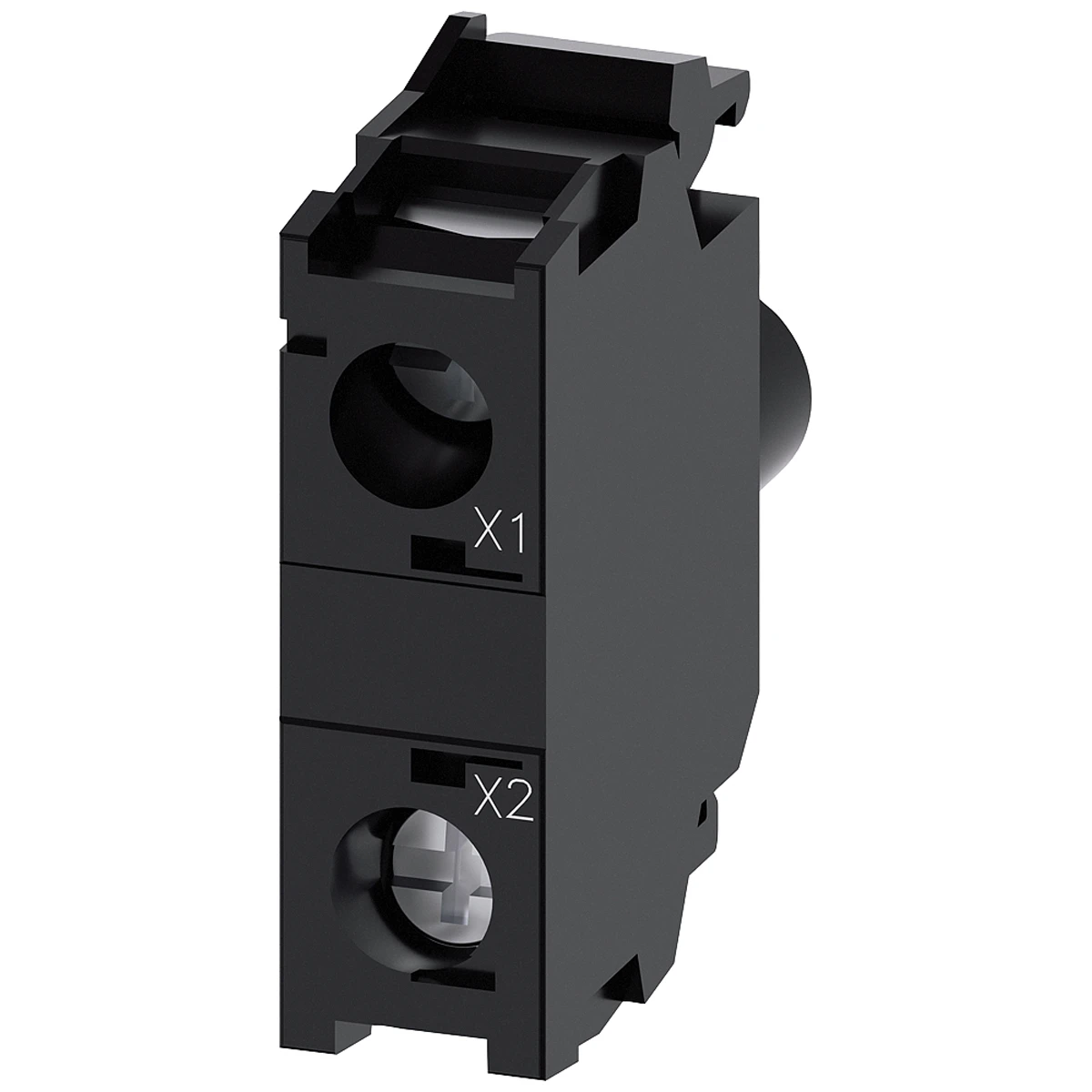

Siemens LED module with integrated LED for front plate mounting. This LED module has a yellow light source through light emitting diodes and has an operating voltage of 230V AC. · · · Screw type terminals: 0.5-1.5mm² · · Operating period: 100000 hours · · Maximum consumed current: 20mA · · Insulation voltage: 320V · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Tightening torque: 0.8 – 0.9 Nm · · Light Intensity: 900 – 1400 mcd · · Ambient temperature: -25 to 70°C · · IP20/40 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1401-1BF30-1AA0 Categories: , , Brand: Part Number: 1051118569

Description

Technical Specifications  Technical Specifications Lamp holder block for control circuit devices Type of fastening Front fastening Lamp cap/base None Light source type LED Type of lamp LED Colour lamp Yellow Connection type auxiliary circuit Screw connection Voltage type for actuating AC Rated voltage Ue at AC 50 Hz 230 – 230 V Rated voltage Ue at AC 60 Hz 230 V Light source included Yes Transformer integrated No With integrated lamp Yes With integrated transformer No With integrated voltage decreasing resistor No With integrated diode Yes · Technical Data Sheet – Click to Download
