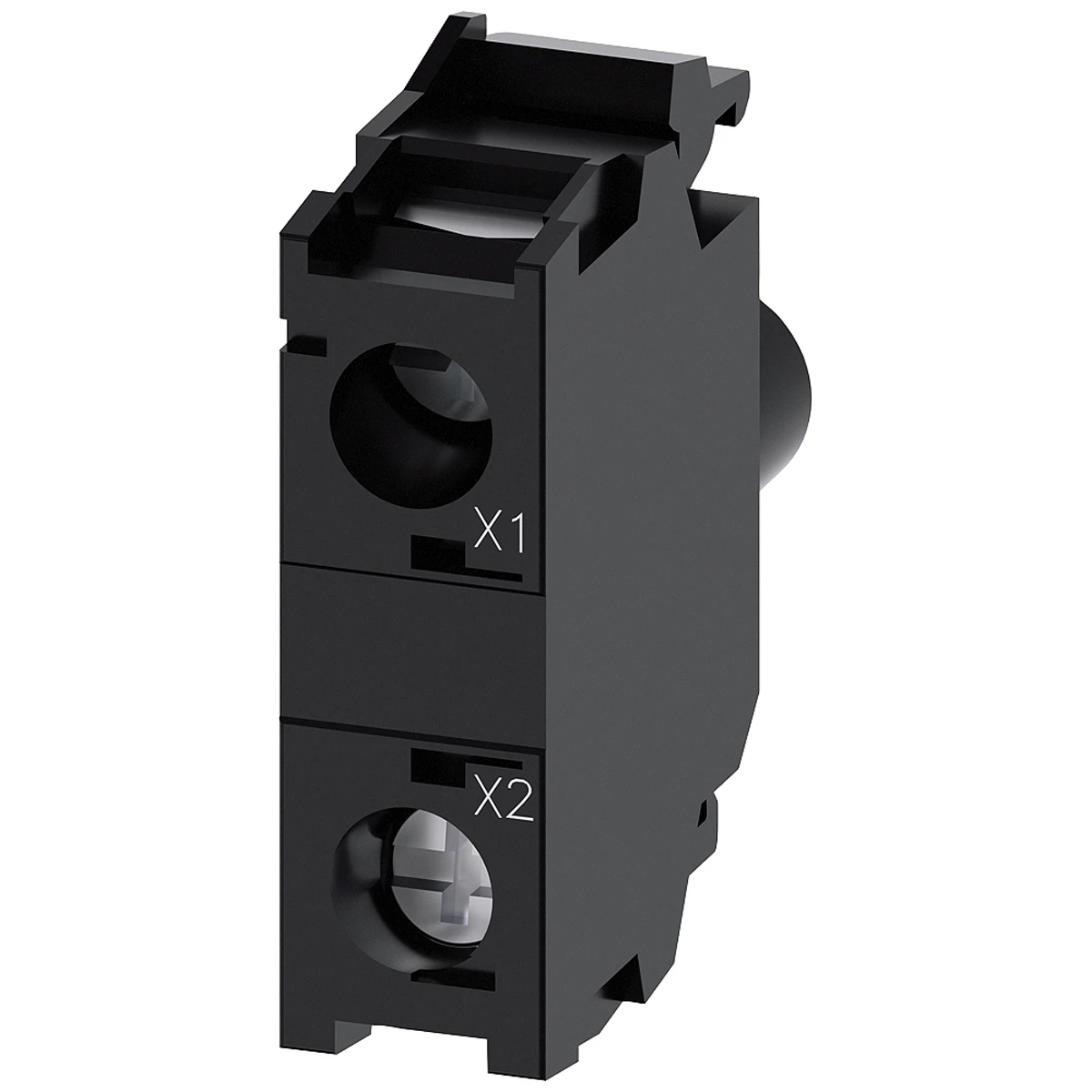

Siemens LED Module With Integrated LED 230V Ac
Siemens LED Module With Integrated LED 230V Ac
Siemens LED Module With Integrated LED 230V Ac - Image 2
Siemens LED Module With Integrated LED 230V Ac - Image 3

Siemens LED Module With Integrated LED 230V Ac

£15.55 Incl. VAT

Siemens LED module with integrated LED for front plate mounting. This LED module has a green light source through light emitting diodes and has an operating voltage of 230V AC. · · · Screw type terminals: 0.5-1.5mm² · · Operating period: 100000 hours · · Maximum consumed current: 20mA · · Insulation voltage: 320V · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Tightening torque: 0.8 – 0.9 Nm · · Light Intensity: 900 – 1400 mcd · · Ambient temperature: -25 to 70°C · · IP20/40 Degree of protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1401-1BF40-1AA0 Brand: Product Code: 1051118570

Description

Technical Specifications  Technical Specifications Lamp holder block for control circuit devices Lamp cap/base None Colour lamp Green Light source type LED Connection type auxiliary circuit Screw connection Voltage type for actuating AC Rated voltage Ue at AC 50 Hz 230 – 230 V Rated voltage Ue at AC 60 Hz 230 V Light source included Yes With integrated voltage decreasing resistor No Transformer integrated No With integrated diode Yes · Technical Data Sheet – Click to Download
