LED Module With Integrated LED 24V Ac/Dc

£9.04 Incl. VAT

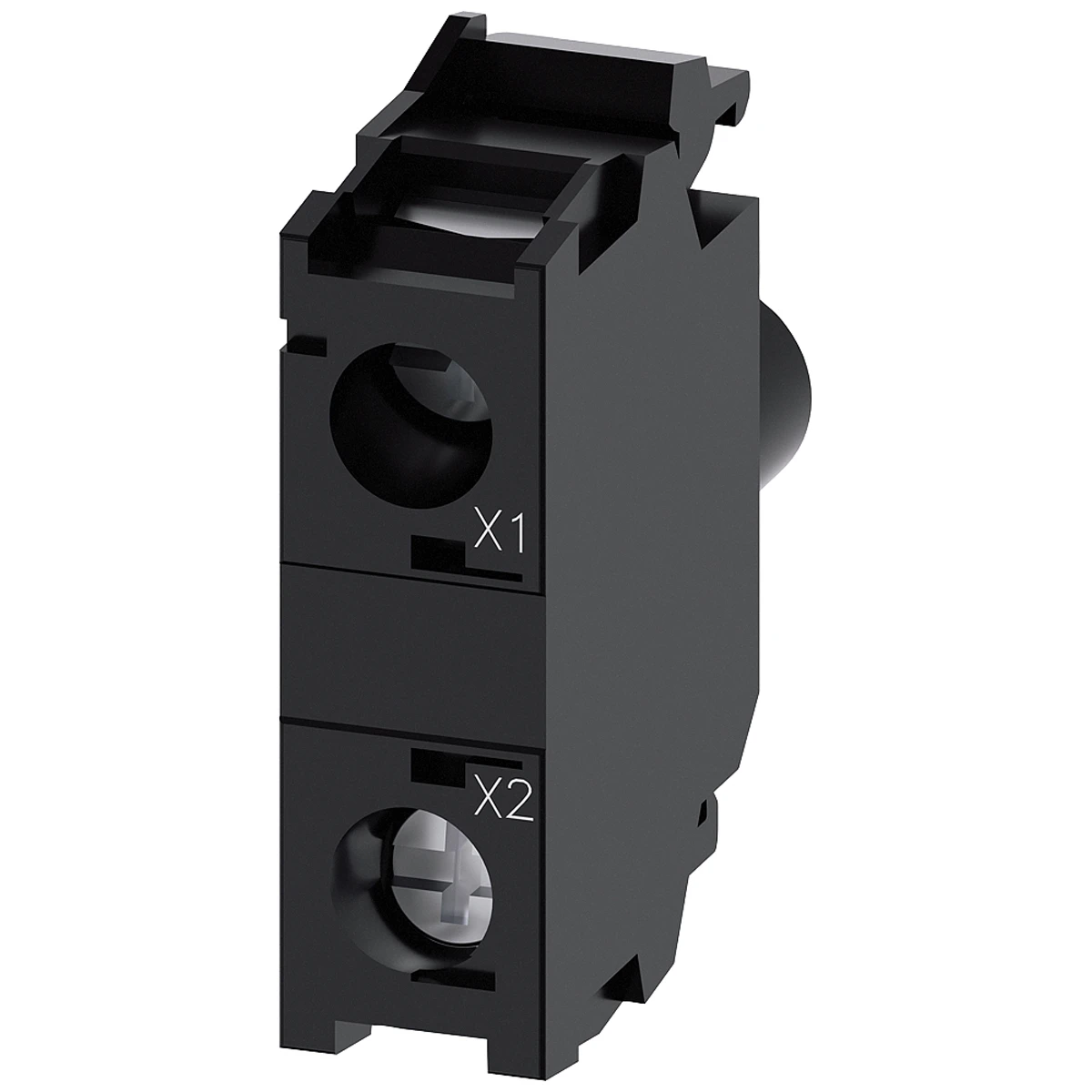

Siemens LED module with integrated LED for front plate mounting. This LED module has a yellow light source through light emitting diodes and has an operating voltage of 24V AC/DC. · · · Screw type terminals: 0.5-1.5mm² · · Operating period: 100000 hours · · Maximum consumed current: 20mA · · Insulation voltage: 320V · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Tightening torque: 0.8 – 0.9 Nm · · Light Intensity: 900 – 1400 mcd · · Ambient temperature: -25 to 70°C · · IP20/40 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1401-1BB30-1AA0 Categories: , , Brand: Part Number: 1051118552

Description

Technical Specifications  Technical Specifications Lamp holder block for control circuit devices Type of lamp LED Lamp cap/base None Light source type LED Colour lamp Yellow Voltage type for actuating AC/DC Rated voltage Ue at AC 50 Hz 24 – -99999 V Connection type auxiliary circuit Screw connection Rated voltage Ue at AC 60 Hz 24 – -99999 V Rated voltage Ue at DC 24 – -99999 V Light source included Yes Transformer integrated No With integrated lamp Yes With integrated transformer No With integrated voltage decreasing resistor No With integrated diode Yes · Technical Data Sheet – Click to Download
