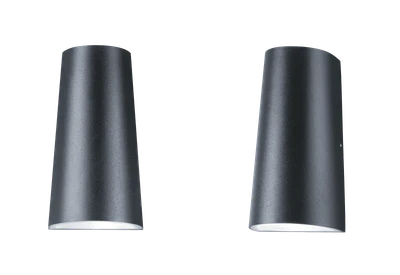

LED Outdoor Wall Light Holly IP65 5W 300lm 3000K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Photobiological safety according to EN 62471 RG1 Colour rendering index (CRI/Ra) 80-89 Type of grid None Filament test according to IEC 60695-2-11 650 C – 30 s Colour consistency (McAdam ellipse) SDCM6 Light distribution Asymmetric Cover material Glass transparent Colour of light White Impact resistance (IK rating) IK04 Degree of protection (IP rating) IP65 Housing colour Aluminium Light source type LED non-replaceable Degree of protection (IP), front side IP65 Control gear LED driver constant current Protection class according to IEC 61140 I Colour temperature switchable No Lumen setting adjustable No Housing material Aluminium Voltage type AC Light outlet Direct Width 160 mm Conductor cross section – mm² Height/depth 58 mm Outer diameter – mm Length 94 mm Number of lamps 1 Recess width – mm Luminous intensity – cd Number of poles – Recess diameter – mm Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Max. number of luminaires per miniature circuit breaker C16 82 Unified Glare Rating (UGR) 21 Flickering value Pst LM – Stroboscope effect value SVM – Total harmonic distortion – Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Max. number of luminaires per miniature circuit breaker B16 65 Recess height/depth – mm Energy Efficiency Index (EEI) – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Power factor 0.5 Rated life time L70/B50 at 25 °C 74000 h Recess length – mm Luminaire efficacy – lm/W Maximum system power 5 W Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C IFTTT support available No With movement sensor No Rated luminous flux acc. IEC 62722-2-1 301 lm Nominal voltage 220 – 240 V Colour temperature 3000 – 3000 K Lamp power – W Nominal current – – – mA With light sensor No Suitable for emergency lighting No Suitable for surface mounting Yes Suitable for recessed mounting No Suitable for wall mounting Yes Suitable for suspended mounting No Suitable for ceiling mounting No Constant luminous flux control No Fit for workplace acc. EN 12464-1 Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Control gear included Yes Light source included Yes No dimming function Yes Luminaire may be covered with thermally insulating material No With air slots No Emergency power supply integrated No Dimming RF No Dimming DALI-2 No Compatible with Google Assistant No Bluetooth operated No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Suitable for light line configuration No Replaceable control gear Yes Dimming LineSwitch No Dimming trailing edge No Dimming manufacturer’s proprietary system No Dimming sine wave reduction No Dimming touch and dim No Dimming Zigbee No Dimming with push-button No Dimming depending on control gear No Dimming mains voltage modulation No Dimming DSI No Dimming potentiometer (integrated) No Dimming DALI No Dimming DMX No Dimming 1-10 V No Dimming 0-10 V No Dimming leading edge No Dimming programmable No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
