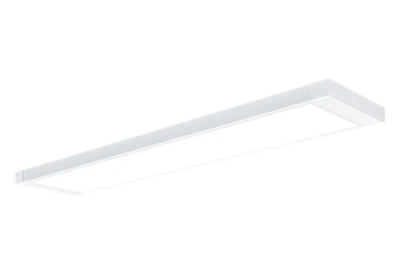

LED Surface mounted Roxy 1500mm IP20 43W 5500lm 4000K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Impact resistance (IK rating) IK03 Type of grid None Filament test according to IEC 60695-2-11 650 C – 30 s Colour rendering index (CRI/Ra) 80-89 Colour consistency (McAdam ellipse) SDCM4 Photobiological safety according to EN 62471 RG0 Light distribution Symmetric Housing colour White Colour of light White Lumen setting adjustable Discrete positions Protection class according to IEC 61140 I Colour temperature switchable No Cover material Plastic opal Control gear LED driver constant current Width 306 mm Housing material Aluminium Light outlet Direct Voltage type AC Light source type LED non-replaceable Degree of protection (IP rating) IP20 Degree of protection (IP), front side IP20 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Recess diameter – mm Number of poles – Recess width – mm Length 1500 mm Conductor cross section – mm² Outer diameter – mm Height/depth 47 mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Unified Glare Rating (UGR) 19 Stroboscope effect value SVM – Flickering value Pst LM – Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Max. number of luminaires per miniature circuit breaker B16 25 Max. number of luminaires per miniature circuit breaker C16 36 Total harmonic distortion 20 Energy Efficiency Index (EEI) – Rated life time L70/B50 at 25 °C 74000 h Luminaire efficacy – lm/W Power factor 0.92 Maximum system power 43 W Recess height/depth – mm Colour temperature 4000 – 4000 K Lamp power – W Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Luminous intensity – cd Rated luminous flux acc. IEC 62722-2-1 5450 lm Recess length – mm Number of lamps 1 Nominal voltage 220 – 240 V Nominal current – – – mA Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Suitable for suspended mounting No Suitable for ceiling mounting Yes Suitable for surface mounting Yes With movement sensor No Light source included Yes With light sensor No Constant luminous flux control No Suitable for wall mounting No Suitable for recessed mounting No Suitable for light line configuration No Emergency power supply integrated No Control gear included Yes Suitable for emergency lighting No Dimming DALI No IFTTT support available No Dimming 0-10 V No Dimming 1-10 V No With air slots No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 Yes Dimming DMX No Dimming potentiometer (integrated) No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Dimming leading edge No Dimming trailing edge No Dimming programmable No Dimming DSI No Compatible with Google Assistant No Dimming DALI-2 No No dimming function Yes Dimming with push-button No Dimming depending on control gear No Bluetooth operated No Replaceable control gear Yes Compatible with Amazon Alexa No Compatible with Apple HomeKit No Dimming touch and dim No Dimming Zigbee No Dimming RF No Dimming sine wave reduction No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
