Legrand Bend 90° Angle Flat 100mm Hot Dipped Galvanised for Cable Tray

£33.25 Incl. VAT

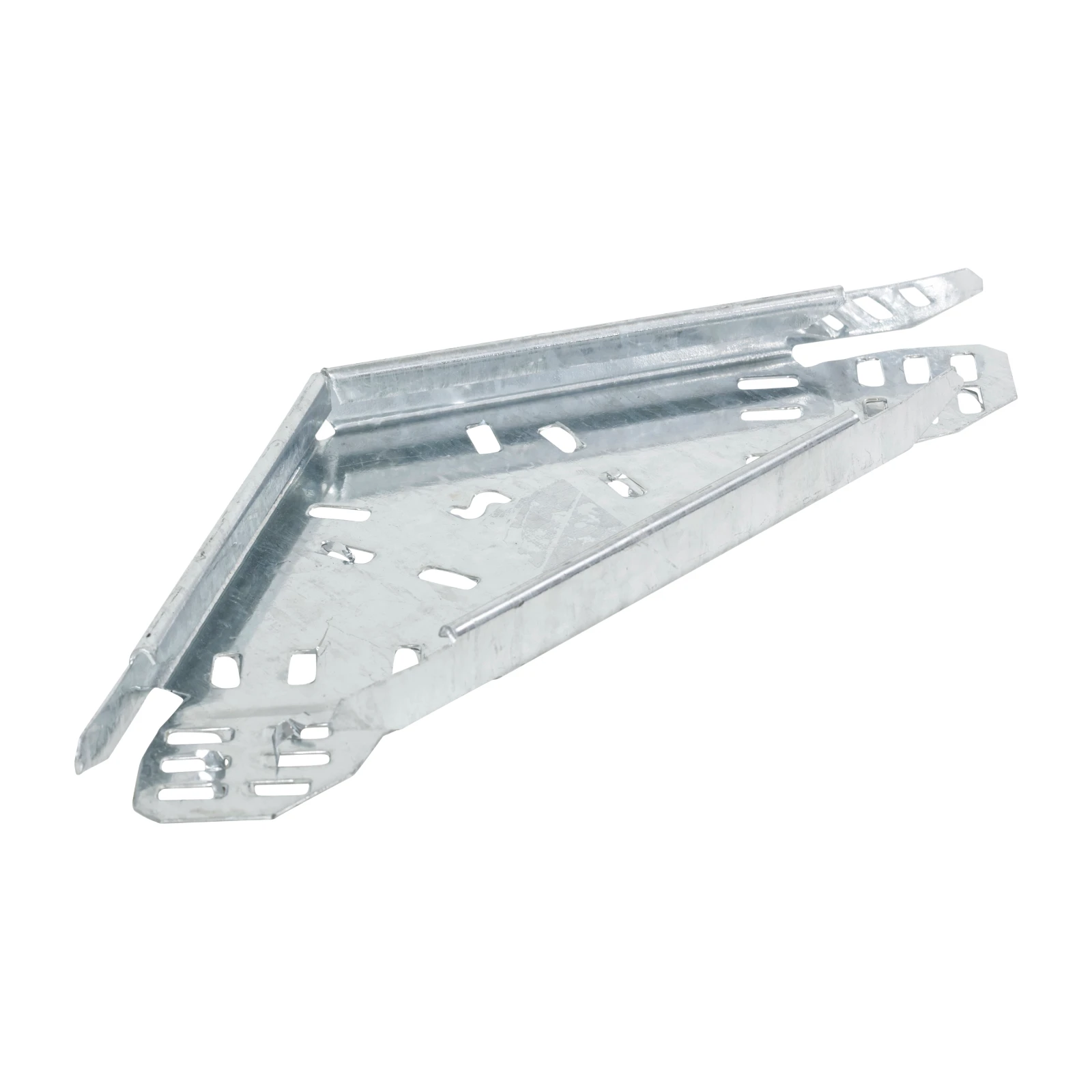

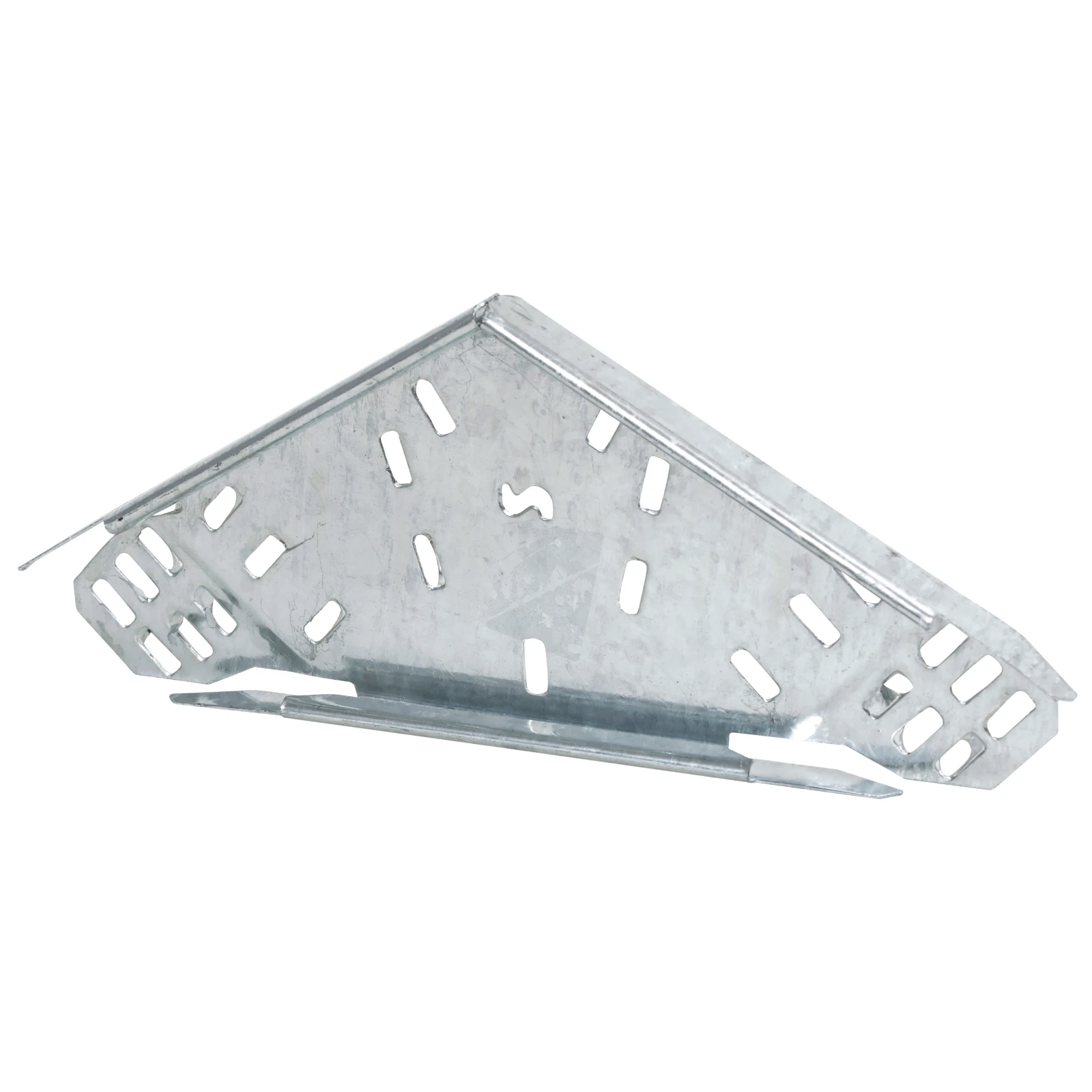

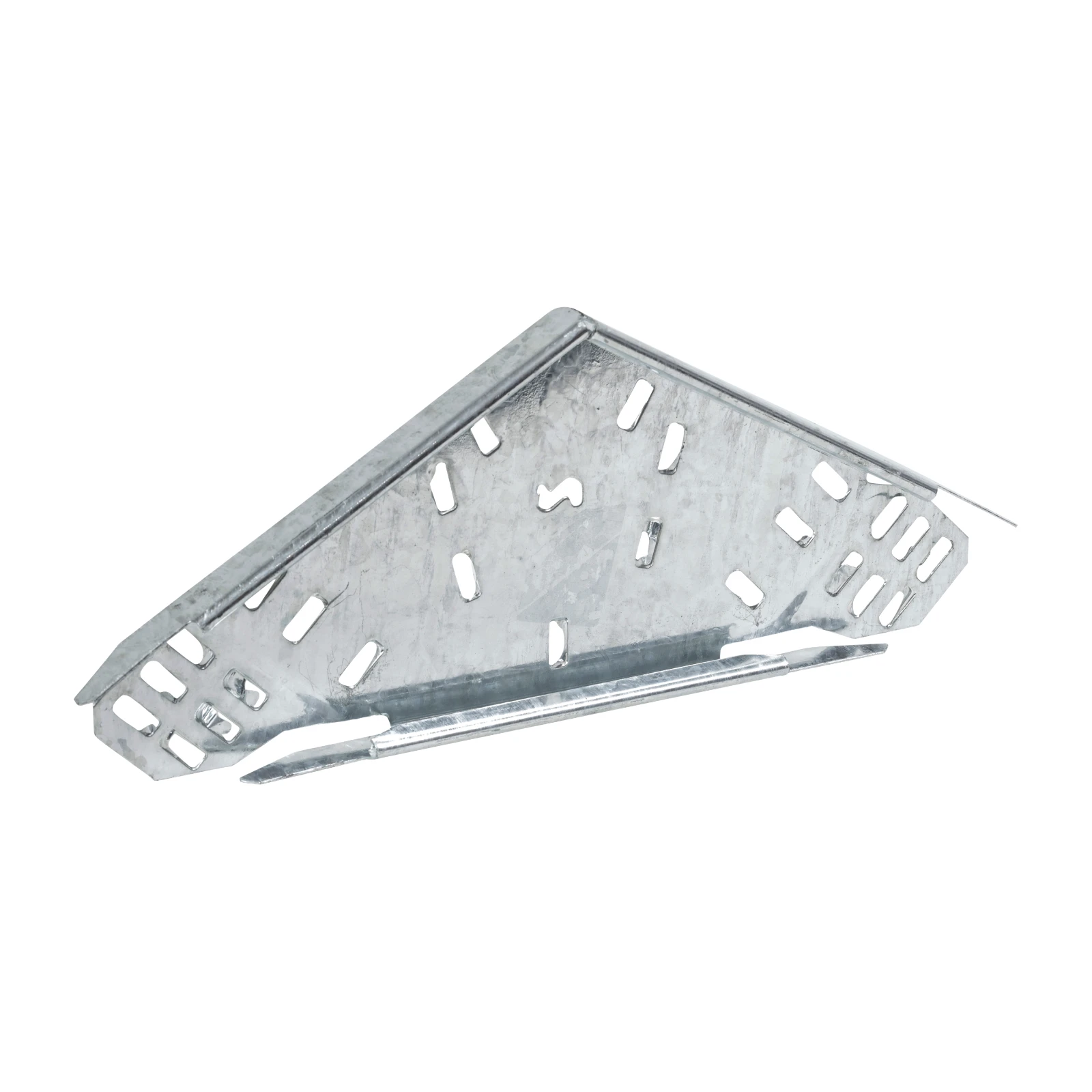

MRFB100G is a 90° Flat Bend made of hot dipped galvanised steel finish and has integral coupling tabs. It is suitable for use with the 100mm Swift cable tray systems. · · · Medium duty capability · · Simple Installation · · 90° Angle

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MRFB100G Categories: , , Brand: Product Code: 2500025042

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Construction type Rigid bend Colour Grey Material Steel Change of direction Horizontal Angle 90° Surface protection Hot dip galvanized Model Integrated coupler Suitable for cable tray width 100 mm Suitable for cable tray height 25 mm Material thickness 1.2 mm Inner radius 125 mm RAL number – Working temperature -20 – 120 °C NATO-mounting holes No Mounting perforation in base Yes Suitable for circuit integrity No Stainless steel, pickled No Side wall perforation No With cover No · Technical Data Sheet – Click to Download
