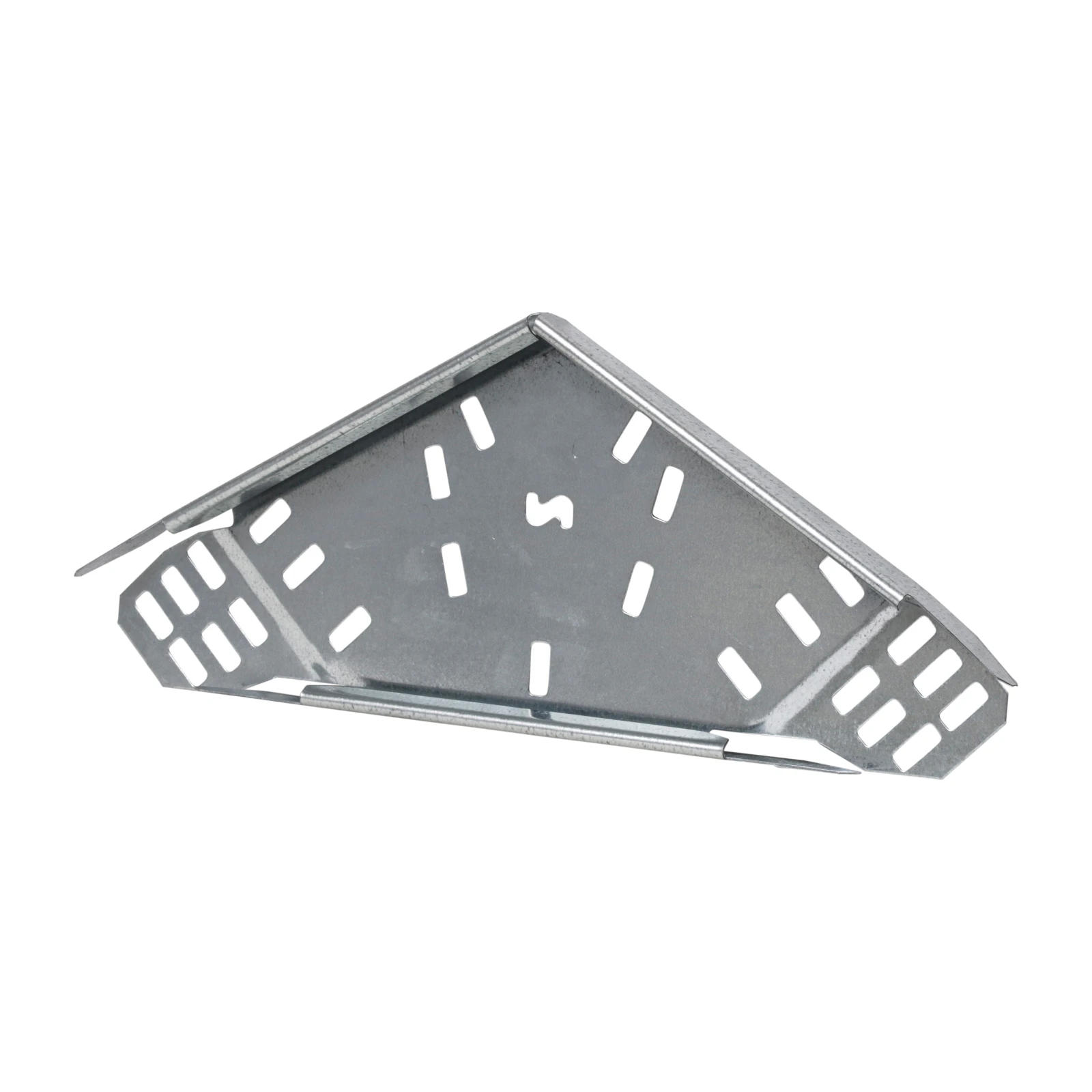

Product image supplied by the manufacturer
Cable & Cable Management

Legrand Bend 90° Angle Flat 100mm Pre-Galvanised Steel for Cable Tray

SKU: MRFB100PGGo Magpie ID: 5060062449666

MRFB100PG is a Flat Bend made of pre-galvanised steel finish and has integral coupling tabs. It is suitable for use with the 100mm Swift cable tray systems. · · · 90° Angle · · Simple Installation · · Medium duty capability

£32.48inc VAT£27.07 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Construction type Rigid bend Colour Grey Material Steel Model Integrated coupler Change of direction Horizontal Surface protection Pre-galvanised Angle 90° Suitable for cable tray height 25 mm RAL number – Inner radius 125 mm Suitable for cable tray width 100 mm Working temperature -20 – 120 °C Material thickness 1 mm Mounting perforation in base Yes Suitable for circuit integrity No Stainless steel, pickled No NATO-mounting holes No Side wall perforation No With cover No · Technical Data Sheet – Click to Download
