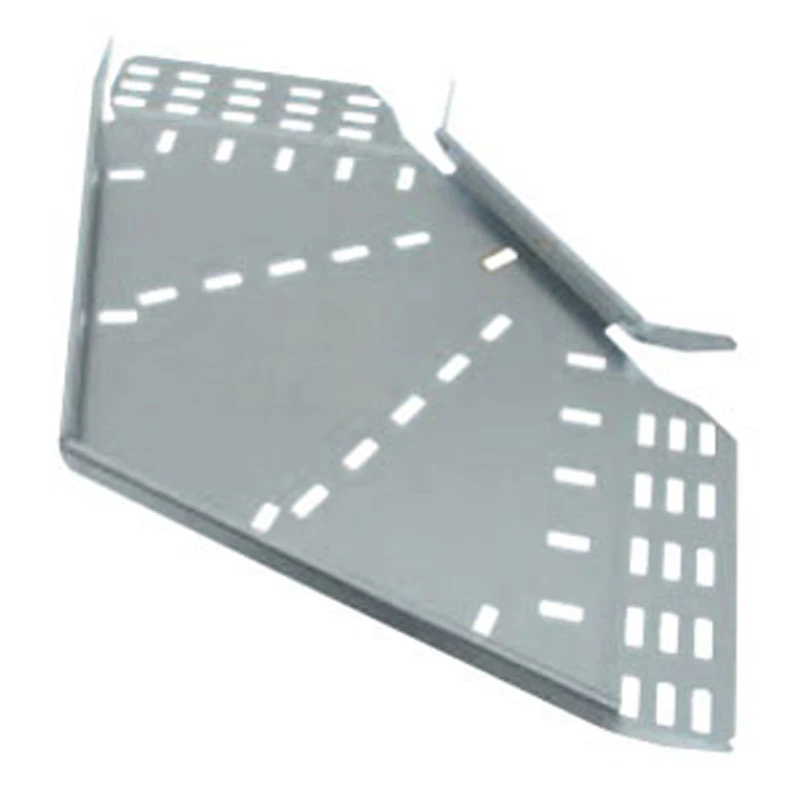

Legrand Bend 90° Angle Flat 100mm Pre-Galvanised Steel for Cable Tray

SKU: SRFB100PGGo Magpie ID: 5060062450752

Swifts SRF Heavy Duty Galvanised Steel Flat Bend used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Available i · · · 90° Angle · · Strength tested to British Standards · · Cuts total installed cost · · At least four times faster to fit · · Available for external and internal applications · · No tools needed · · The innovative, quick-fit choice · · Integral coupling tabs and fishplates, no couplers required · · Change of direction: Horizontal · · Construction type: Bend rigid

£46.86inc VAT£39.05 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Construction type Rigid bend Angle 90° Change of direction Horizontal Surface protection Pre-galvanised Model Integrated coupler Suitable for cable tray height 50 mm RAL number – Inner radius 125 mm Suitable for cable tray width 100 mm Working temperature -20 – 120 °C Material thickness 1 mm Side wall perforation No With cover No Stainless steel, pickled No NATO-mounting holes No Mounting perforation in base Yes Suitable for circuit integrity No · Technical Data Sheet – Click to Download
