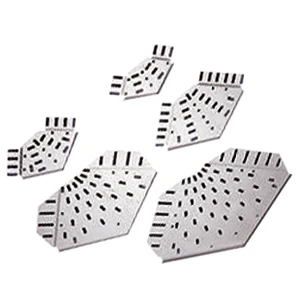

Legrand Bend 90° Angle Flat 450mm Pre-Galvanised Steel for Cable Tray
£80.74 Incl. VAT
Swifts cable tray systems, General purpose fittings, All fitting have integral coupling tabs and fishplates, No couplers required · · · Material: Steel · · Width: 450mm · · Angle: 90° · · Finish: Pre-Galvanised · · Integral coupling tabs and fishplates, no couplers required · · Change of direction: Horizontal · · Angle: 90° · · Construction type: Bend rigid · · Inner radius: 125 mm · · Suitable for cable tray height: 25 mm
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Construction type Rigid bend Change of direction Horizontal Model Integrated coupler Angle 90° RAL number – Surface protection Pre-galvanised Suitable for cable tray height 25 mm Suitable for cable tray width 450 mm Material thickness 1 mm Inner radius 125 mm Suitable for circuit integrity No Working temperature -20 – 120 °C Stainless steel, pickled No Side wall perforation No Mounting perforation in base Yes NATO-mounting holes No With cover No · Technical Data Sheet – Click to Download
