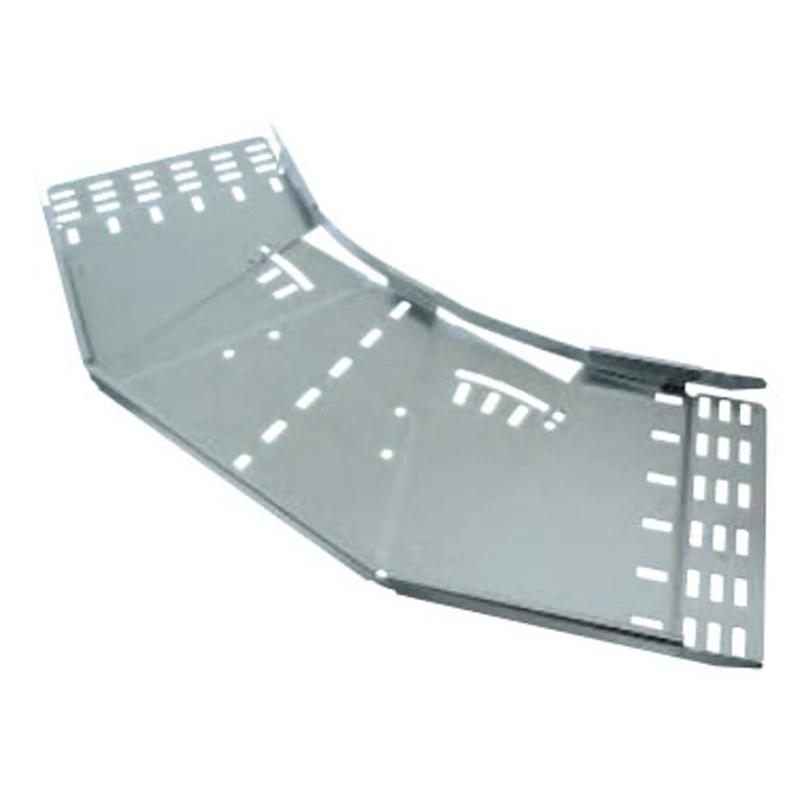

Legrand Bend Adjustable 100mm Hot Dipped Galvanised for Cable Tray
Legrand Bend Adjustable 100mm Hot Dipped Galvanised for Cable Tray
Legrand Bend Adjustable 100mm Hot Dipped Galvanised for Cable Tray - Image 2

Legrand Bend Adjustable 100mm Hot Dipped Galvanised for Cable Tray

£37.12 Incl. VAT

Swifts MRF Medium Duty Galvanised Steel Adjustable Bend used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Avai · · · Cuts total installed cost · · At least four times faster to fit · · Compatible with the existing Swifts cable tray system · · Available for external and internal applications · · No tools needed · · Suitable for cable tray height: 25 mm · · Suitable for cable tray width: 100 mm · · Material thickness: 1.2 mm · · Bottom perforation: Yes · · Model: Integrated connector

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MRFAB100G Categories: , , Brand: Product Code: 2500025030

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Material Steel Colour Grey Change of direction Horizontal Surface protection Hot dip galvanized Model Integrated coupler Angle Adjustable Construction type Adjustable bend Suitable for cable tray width 100 mm RAL number – Suitable for cable tray height 25 mm Material thickness 1.2 mm Working temperature -20 – 120 °C Inner radius 100 mm Suitable for circuit integrity No Stainless steel, pickled No Mounting perforation in base Yes With cover No NATO-mounting holes No Side wall perforation No · Technical Data Sheet – Click to Download
