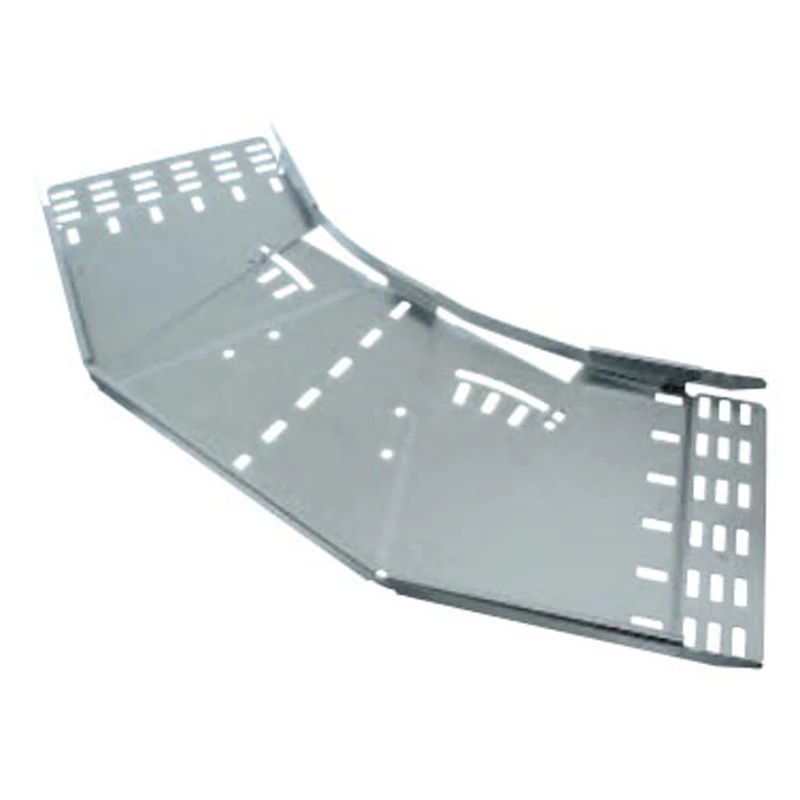

Legrand Bend Adjustable 50mm Pre-Galvanised Steel for Cable Tray
£26.30 Incl. VAT
Swifts MRF Medium Duty Galvanised Steel Adjustable Bend used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Avai · · · Strength tested to British Standards · · Cuts total installed cost · · At least four times faster to fit · · Available for external and internal applications · · No tools needed · · The innovative, quick-fit choice · · Angle: Adjustable · · Suitable for cable tray height : 25 mm · · Suitable for cable tray width: 50 mm · · Material thickness: 1 mm
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Change of direction Horizontal Model Integrated coupler Surface protection Pre-galvanised Construction type Adjustable bend Angle Adjustable Material thickness 1 mm RAL number – Suitable for cable tray height 25 mm Inner radius 50 mm Suitable for cable tray width 50 mm Working temperature -20 – 120 °C Side wall perforation No With cover No Stainless steel, pickled No Suitable for circuit integrity No NATO-mounting holes No Mounting perforation in base Yes · Technical Data Sheet – Click to Download
