Legrand Bracket Support Cradle 45 x 70 x 35mm Hot Dipped Galvanised
Legrand Bracket Support Cradle 45 x 70 x 35mm Hot Dipped Galvanised
Legrand Bracket Support Cradle 45 x 70 x 35mm Hot Dipped Galvanised - Image 2

Legrand Bracket Support Cradle 45 x 70 x 35mm Hot Dipped Galvanised

£7.58 Incl. VAT

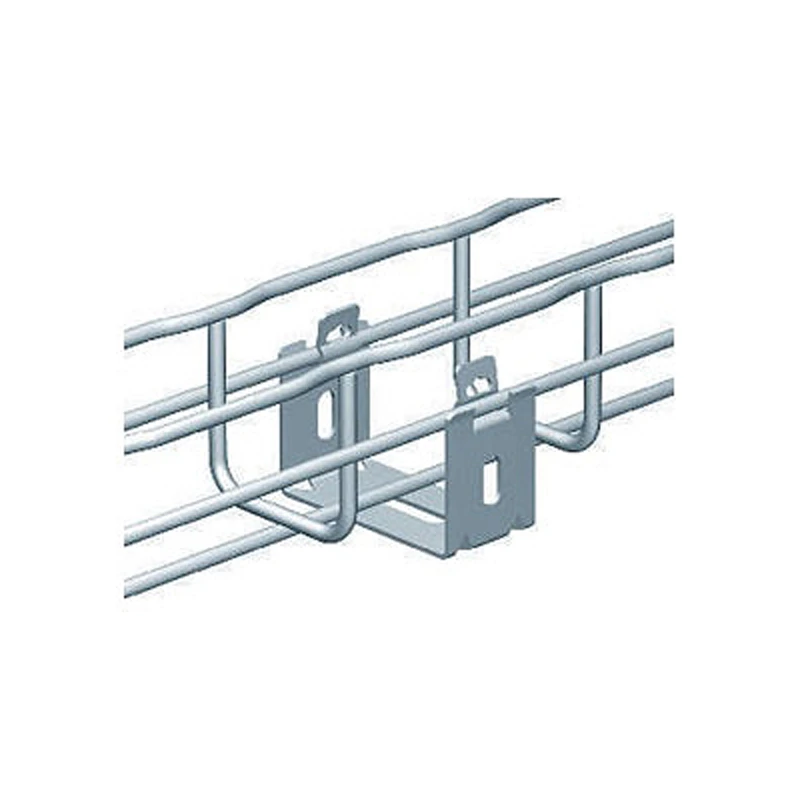

Cablofil UC50GC support cradle is made of steel. It is used as a support cradle for 50mm wide steel wire cable tray in 30 or 54mm depths. It can be mounted directly onto the wall by horizontally/vertically or onto wall mounted cantilever arms using fasteners. It can also be ceiling mounted in conjunction with CEQ or floor mounted. Supplied singly without fasteners. · · · Height: 45mm · · Length: 70mm · · Material: Steel · · Width: 35mm · · Slotted: Slotted · · Weight: 0.07kg · · Capacity: 12daN · · Finish: Hot-dip Galvanised

47 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CM586043 Categories: , , Brand: Part Number: 2500098524

Description

Technical Specifications  Technical Specifications Mounting bracket for cable tray systems Material Steel Colour Zinc Tray mounting Screw fix Model Mounting bracket (C-shape) Surface protection Hot dip galvanized Load bearing capacity 120 N RAL number – Suitable for duct width 50 mm Suitable for maximum duct height 54 mm Working temperature – – – °C Suitable for cable management system width – – – mm Suitable for cable management system height 50 – 50 mm Suitable for wire cable tray/basket Yes Suitable for cable tray No Suitable for cable ladder No Suitable for circuit integrity No
