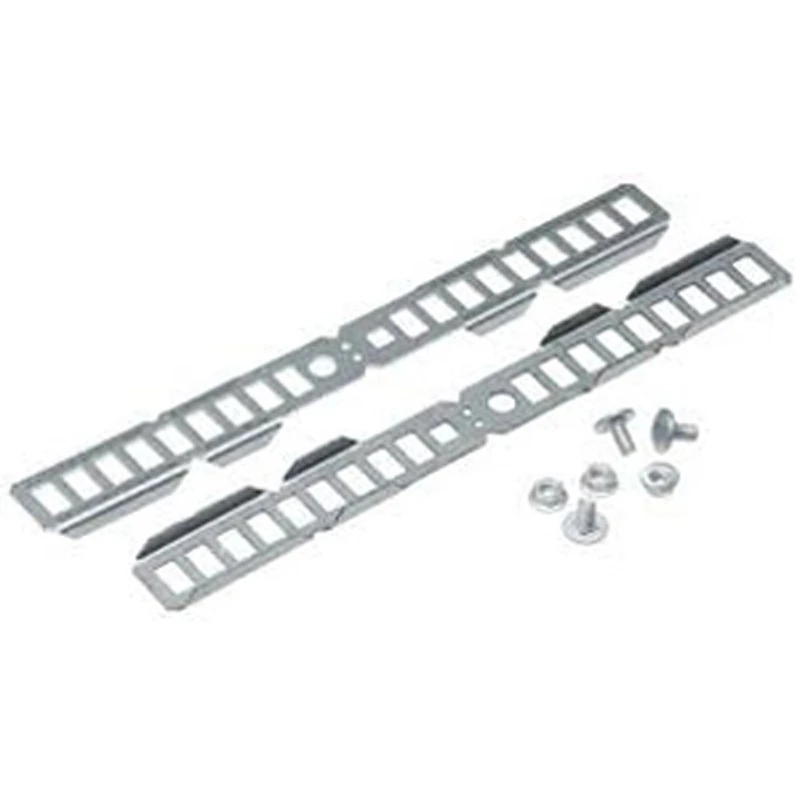

Legrand Bracket Universal (Pair) Hot Dipped Galvanised for Cable Tray
£30.86 Incl. VAT
The Swifts SRF galvanised steel universal Bracket available in all widths with 50mm height. The universal brackets can be used in a number of ways to achieve many changes of direction and reducing functions. Over fold to split bracket and join using faste · · · Can be folded into shape using a pair of pliers to create bends, tees and 4 way crosspieces etc · · Heavy duty · · Hot dipped galvanised finish · · Model: Length- and angle joint · · Type of connection: Screw connector · · Suitable for cable support system width: 75-900 mm · · Suitable for cable support system height: 50-50 mm · · Material: Steel · · Surface protection: Hot-dip galvanized · · Operating / setting temperature: -20-120 °C
Description
Technical Specifications Technical Specifications Connector for cable tray system Colour Grey Material Steel Model Length- and angle joint Type of connection Screw connector Surface protection Hot dip galvanized RAL number – Length 320 mm Suitable for wire cable tray/basket wire 0 – 0 mm Working temperature -20 – 120 °C Suitable for cable management system width 75 – 900 mm Suitable for cable management system height 50 – 50 mm Suitable for cable ladder No Suitable for cable tray Yes Suitable for circuit integrity No Stainless steel, pickled No Suitable for wire cable tray/basket No Hinged joint vertical No Hinged joint horizontal No · Technical Data Sheet – Click to Download
