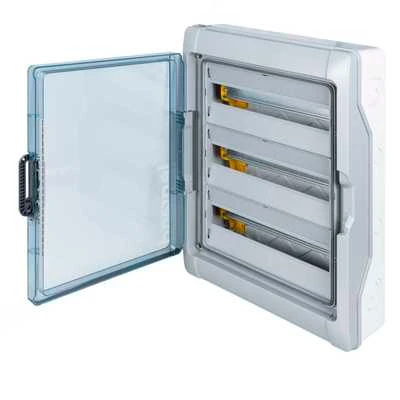

Legrand Cabinet Waterproof 3X18 Module IP65

Description

Technical Specifications  Technical Specifications Small distribution board Housing material Plastic Colour Grey Type of covering Door Cover model Closed Mounting method Surface mounted Width 448 mm Degree of protection (IP rating) IP65 RAL number 7046 Height 622 mm Internal depth 48.5 mm Depth 161 mm Recess width – mm Recess height – mm Recess depth – mm Number of rows 3 Width in number of modular spacings 18 With mounting plate No Transparent cover/door Yes With lock Yes Extension possible Yes EMC-version No Neutral terminal block No Earthing terminal block No With DIN-rail Yes Signal passing door No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
