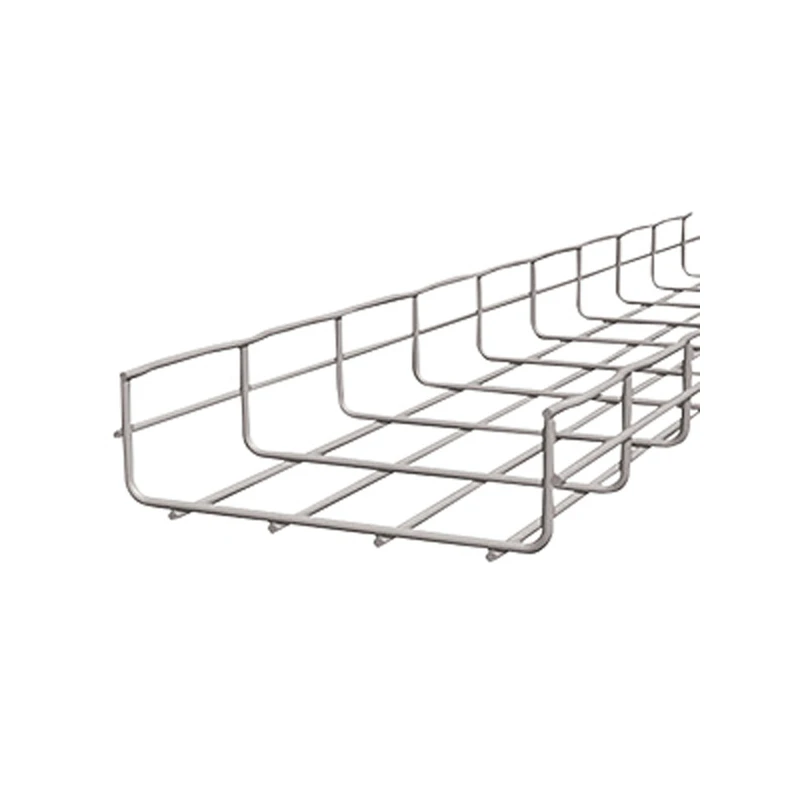

Legrand Cable Basket Wire Tray 30 x 100mm x 3m Electro-Zinc Plated
£12.79 Incl. VAT
Wire basket tray made up of a steel body construction complete with electro-galvanized zinc plated finish, designed to provide natural ventilation as well as a greater cable efficiency. · · · 3,000mm² cross-section · · Screwless connector · · U-Profile Shape
Description
Technical Specifications Technical Specifications Wire cable tray/basket Integrated partition None Surface protection Galvanic/electrolytic zinc plated Material Steel Colour Zinc Profile shape U-shape Width 100 mm Model Coupler not included Weight 0.53622466 kg/m Height 30 mm Diameter longitudinal wire – mm Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Working length – mm Useful cross section 2643 mm² Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Diameter transverse wire – mm Length 3000 mm RAL number – Support spacing range – – – m Working temperature -20 – 120 °C Suitable for circuit integrity No · Technical Data Sheet – Click to Download
