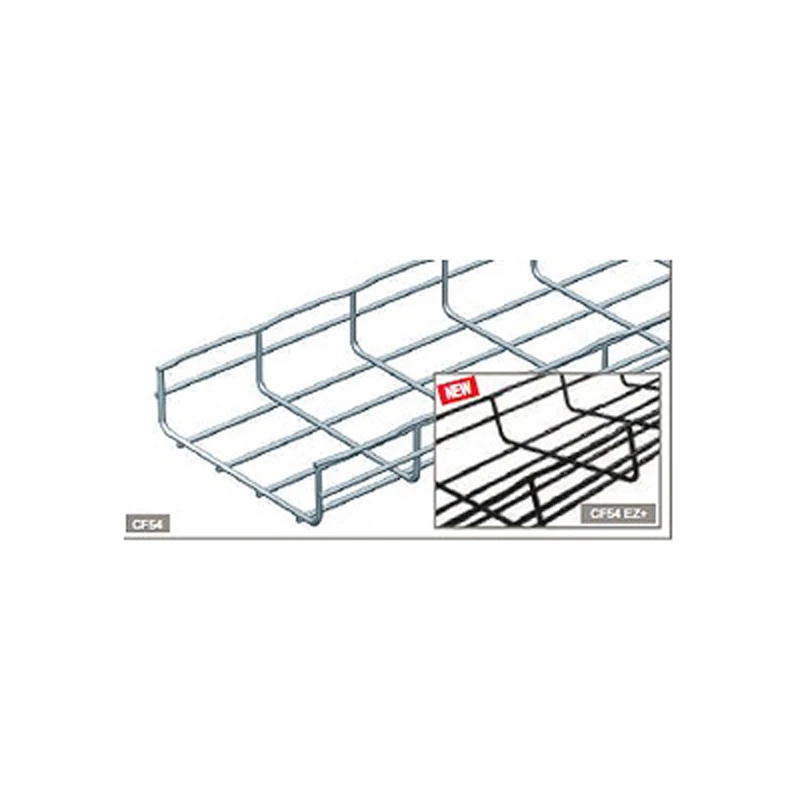

Legrand Cable Basket Wire Tray 54 x 50mm x 3m Hot Dipped Galvanised

Description

Technical Specifications  Technical Specifications Wire cable tray/basket Integrated partition None Material Steel Colour Zinc Profile shape U-shape Model Coupler not included Surface protection Hot dip galvanized Width 50 mm Length 3000 mm Height 54 mm Weight 0.65606322 kg/m Useful cross section 2558 mm² RAL number – Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Diameter longitudinal wire – mm Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Diameter transverse wire – mm Support spacing range – – – m Working temperature -20 – 120 °C Suitable for circuit integrity Yes · Technical Data Sheet – Click to Download
