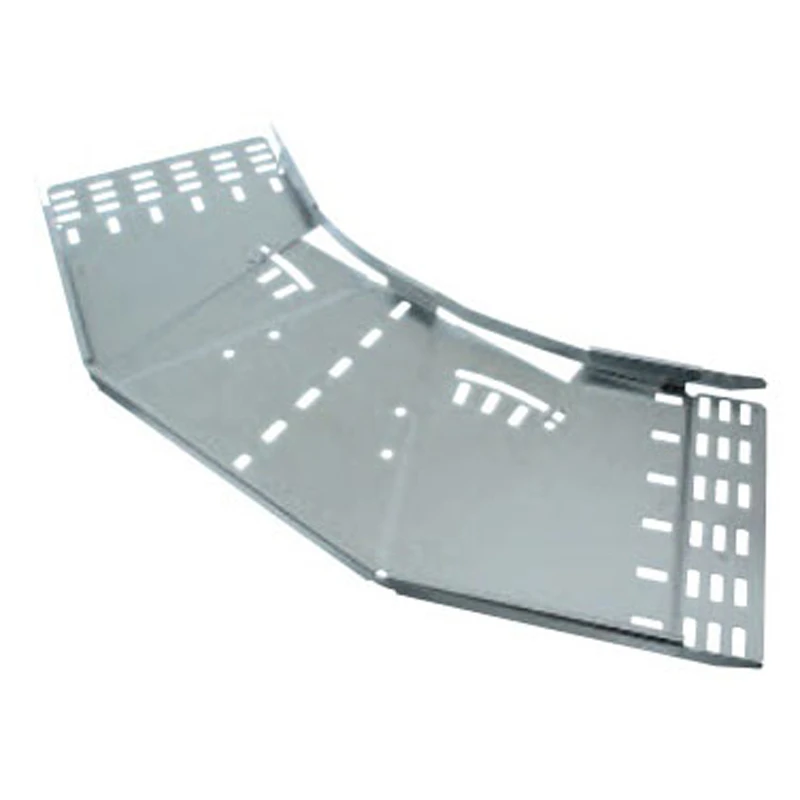

Legrand Cable Tray Bend Adjustable 150mm Hot Dipped Galvanised
£40.08 Incl. VAT
Swifts MRF Medium Duty Galvanised Steel Adjustable Bend used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Avai · · · Cuts total installed cost · · At least four times faster to fit · · Compatible with the existing Swifts cable tray system · · Available for external and internal applications · · No tools needed · · Suitable for cable tray height: 25 mm · · Suitable for cable tray width : 150 mm · · Material thickness: 1.2 mm · · Bottom perforation: Yes · · Model: Integrated connector
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Change of direction Horizontal Model Integrated coupler Construction type Adjustable bend Surface protection Hot dip galvanized Angle Adjustable Suitable for cable tray width 150 mm Suitable for cable tray height 25 mm Material thickness 1.2 mm Inner radius 150 mm RAL number – Working temperature -20 – 120 °C NATO-mounting holes No Side wall perforation No With cover No Suitable for circuit integrity No Stainless steel, pickled No Mounting perforation in base Yes · Technical Data Sheet – Click to Download
