Cable & Cable Management

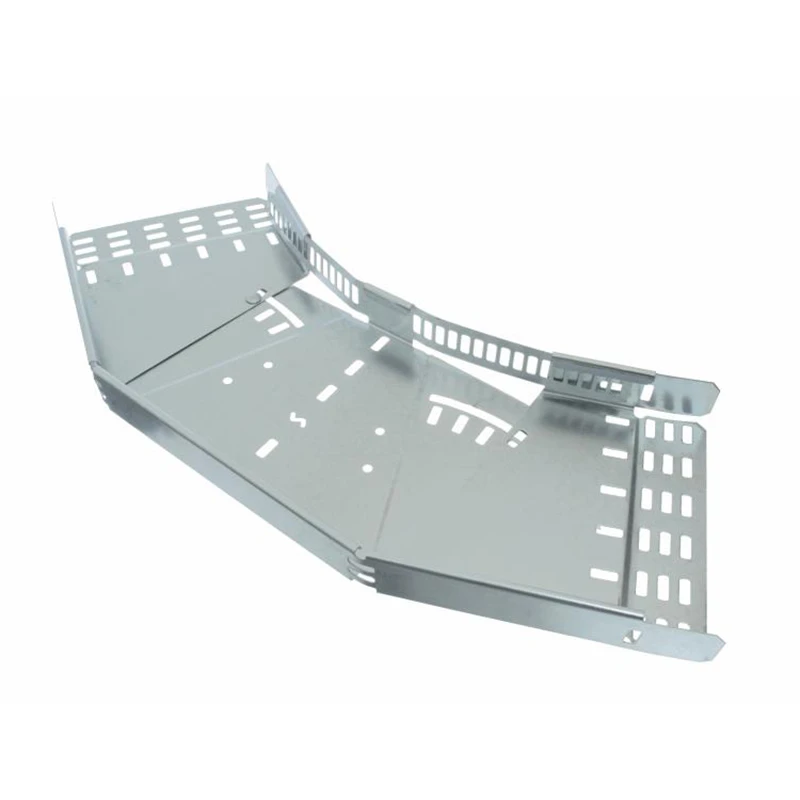

Legrand Cable Tray Bend Adjustable 225mm Hot Dipped Galvanised

Brand: LegrandProduct code: SRFAB225GGo Magpie Ref: 5060062461715

Swifts SRF Heavy Duty Galvanised Steel Adjustable Bend used with cable tray. All fittings have integral coupling tabs and fishplates. No couplers required. The distinctive slot pattern on Swifts cable tray provides installers with total flexibility. Avail · · · Strength tested to British Standards · · Cuts total installed cost · · At least four times faster to fit · · Available for external and internal applications · · No tools needed · · The innovative, quick-fit choice · · Integral coupling tabs and fishplates, no couplers required · · Suitable for cable tray height: 50 mm · · Material thickness: 1.2 mm · · Bottom perforation: Yes

£71.46inc VAT£59.55 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Colour Grey Material Steel Change of direction Horizontal Model Integrated coupler Surface protection Hot dip galvanized Construction type Adjustable bend Angle Adjustable RAL number – Material thickness 1.2 mm Suitable for cable tray width 225 mm Suitable for cable tray height 50 mm Inner radius 225 mm Working temperature -20 – 120 °C NATO-mounting holes No Side wall perforation No Suitable for circuit integrity No Stainless steel, pickled No Mounting perforation in base Yes With cover No · Technical Data Sheet – Click to Download
