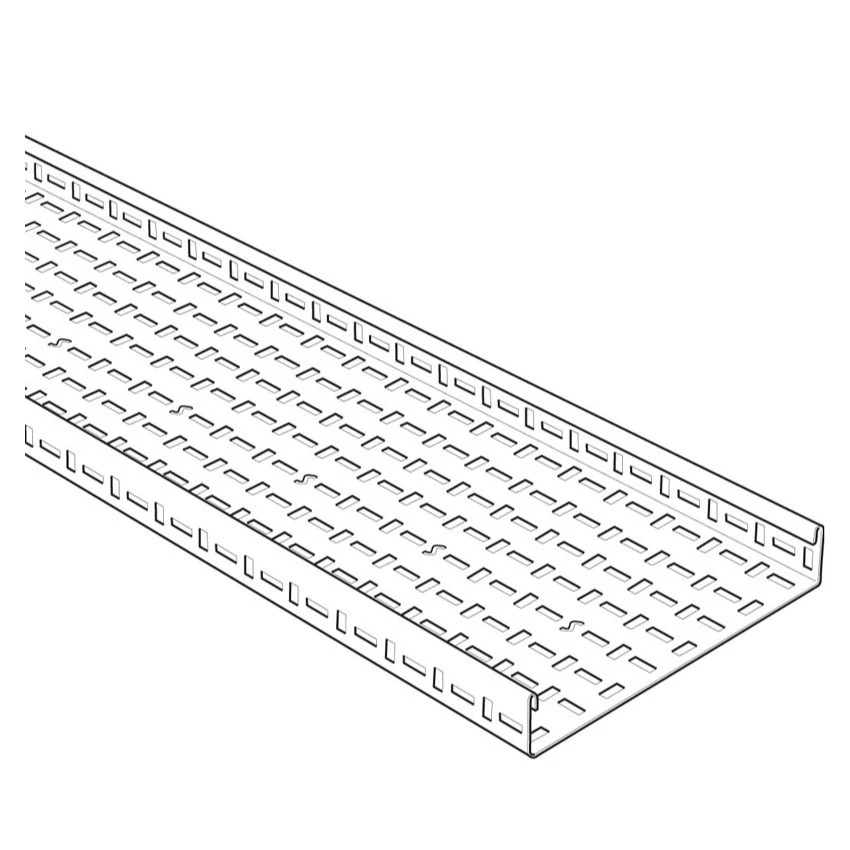

Legrand Cable Tray Heavy Duty 450mm x 3m Hot Dipped Galvanised

Technical Specifications  Technical Specifications Cable tray Colour Grey Material Steel Surface protection Hot dip galvanized Model Coupler not included Width 450 mm Material thickness 1.2 mm Length 3000 mm Height 50 mm Safe working load according to IEC 61537 with support spacing 0.5 m – N/m RAL number – Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Useful cross section 22500 mm² Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Weight – kg/m Support spacing range – – – m Working temperature -20 – 120 °C Side wall perforation Yes NATO-mounting holes No With cover No Mounting perforation in base Yes Suitable for circuit integrity No · Technical Data Sheet – Click to Download
